ALLIED TELESIS 18-SLOT CHASSIS F MMC2XXX MEDIA
18-Slot Chassis f MMC2xxx Media Converters No PSU 990-005260-00
- Brand: ALLIED TELESIS
- Category: Components & Parts
- SKU: 3693351
- MPN: AT-MMCR18-60
Allied Telesis MMCR18 network equipment chassis Save $589.01 off RRP
Available On OrderAsk us for ETA
$1,749.14
Inclusive of GST
1
4 payments of $437.29Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-IM-020524
- MPN:
- AT-MMCR18-60
- Brand:
- ALLIED TELESIS
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $589.01 off RRP while stocks last.
ALLIED TELESIS 18-SLOT CHASSIS F MMC2XXX MEDIA

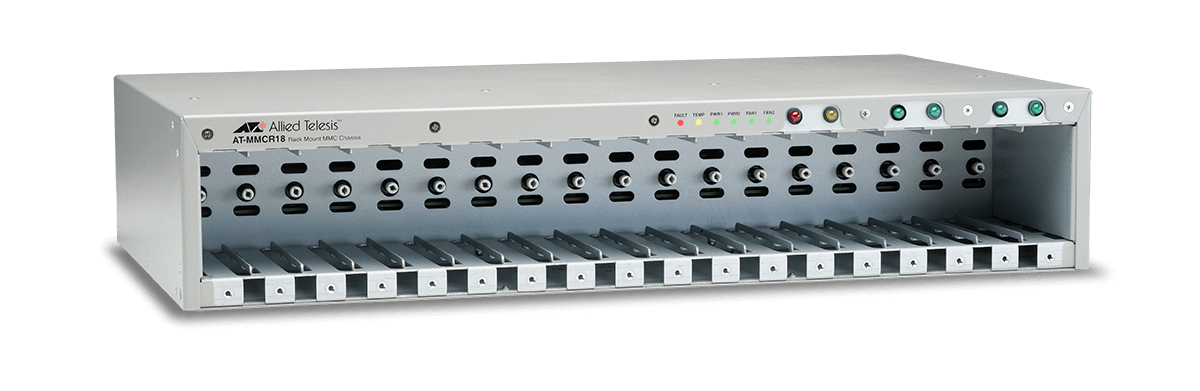

Media converter flexibility
The Allied Telesis MMCR18 is a two rack unit high chassis, which enables network managers to use up to 18 MMC series media converters in a standard 19 inch rack. For redundancy, it can be powered with either one or two Power Supply Units (PSUs).
Power options
The MMCR18 Chassis can be powered with either an AC or DC power supply, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot swappable PSU to eliminate network downtime. The unit saves space in the wiring closet, and minimizes the number of power connections required. Single-unit media converters can be removed from the MMCR18 and deployed individually to accommodate network modifications.
By incorporating a backplane with 18 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters—whether
using one or two PSUs.
Rack-mount design
Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail.The rack-mount chassis includes
six status LEDs on the front panel indicating power, temperature, fan and fault status.
The Allied Telesis MMCR18 is a two rack unit high chassis, which enables network managers to use up to 18 MMC series media converters in a standard 19 inch rack. For redundancy, it can be powered with either one or two Power Supply Units (PSUs).
Power options
The MMCR18 Chassis can be powered with either an AC or DC power supply, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot swappable PSU to eliminate network downtime. The unit saves space in the wiring closet, and minimizes the number of power connections required. Single-unit media converters can be removed from the MMCR18 and deployed individually to accommodate network modifications.
By incorporating a backplane with 18 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters—whether
using one or two PSUs.
Rack-mount design
Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail.The rack-mount chassis includes
six status LEDs on the front panel indicating power, temperature, fan and fault status.
Key features
- Rack mounting: Yes
- LED indicators: Yes
- Material: Metal
- Number of slots: 18
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 80%
- Storage relative humidity (H-H): 5 - 80%
- Safety: UL, CSA, TUV, IEC 825-1, CE compliant
- Certification: FCC Class A, IC Class A
- Width: 440 mm
- Depth: 255 mm
- Height: 87 mm
- Weight: 4.3 kg
