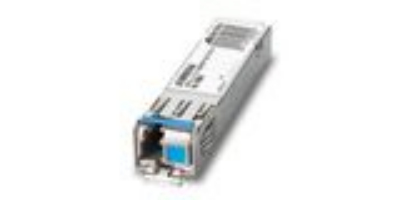

ALLIED TELESIS 20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 M

20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 MICRON (TX=1310 NM RX=1490-1550 NM) FOR IMG AND IE SERIES INDUSTRIAL TEMPERATURE

  • Brand: ALLIED TELESIS
  • Category: Network Accessories
  • SKU: 3744547
  • MPN: AT-SPBD20-13/I

Allied Telesis AT-SPBD20-13/I network transceiver module Fiber optic…

Allied Telesis AT-SPBD20-13/I, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, BX

ALLIED TELESIS 20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 M

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:3744547

Part #: 3744547

Search this part on Google

Hot-Plug support

Yes

Compatible products

Allied Telesis iMG2400 / 1400

SFP transceiver type

Fiber optic

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

LC

Fiber cable diameters supported (core/cladding)

9/125 µm

Returns & Warranty

Comsys Price

$896.99
On Sale

Save $264.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $224.25 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS 20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 M

The AT-SPBD20-13/I offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable, fiber interfaces simply plug into a SFP slot on Allied Telesis SFP-compatible intelligent Multiservice Gateways (iMGs).

Key features

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 1250 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: LC
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • SFP transceiver standard: BX
  • Maximum transfer distance: 20000 m
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
  • Auto MDI/MDI-X: Yes
  • Hot-Plug support: Yes
  • Compatible products: Allied Telesis iMG2400 / 1400
  • Compliance certificates: RoHS
  • Certification: MSA
  • Operating temperature (T-T): -40 - 95 °C
  • Storage temperature (T-T): -40 - 95 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Width: 13.4 mm
  • Depth: 56.5 mm
  • Height: 8.5 mm
  • Quantity per pack: 1 pc(s)
