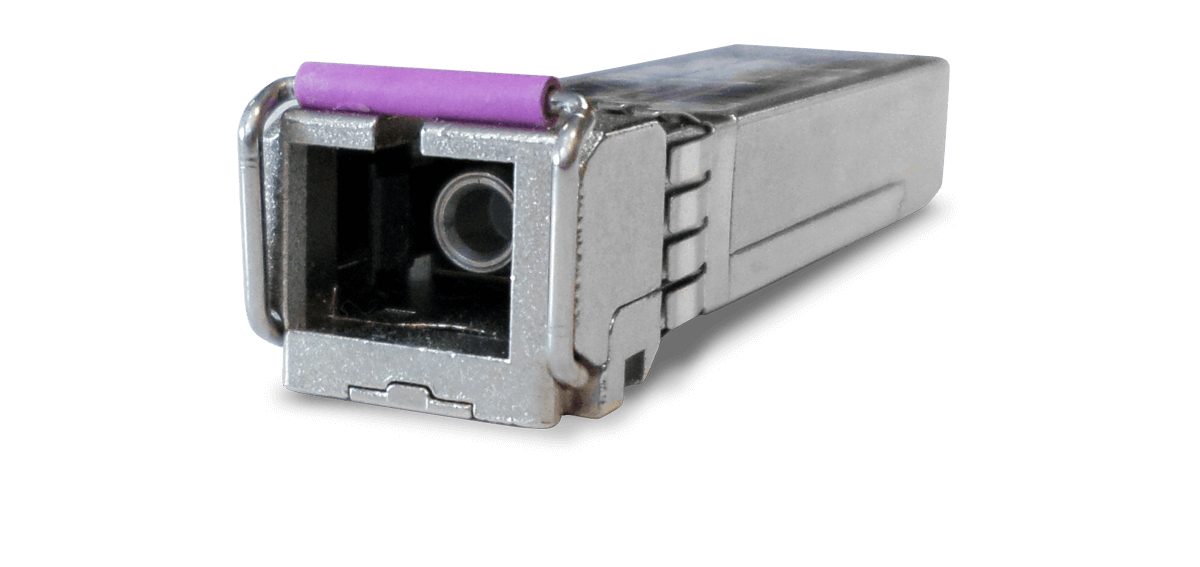

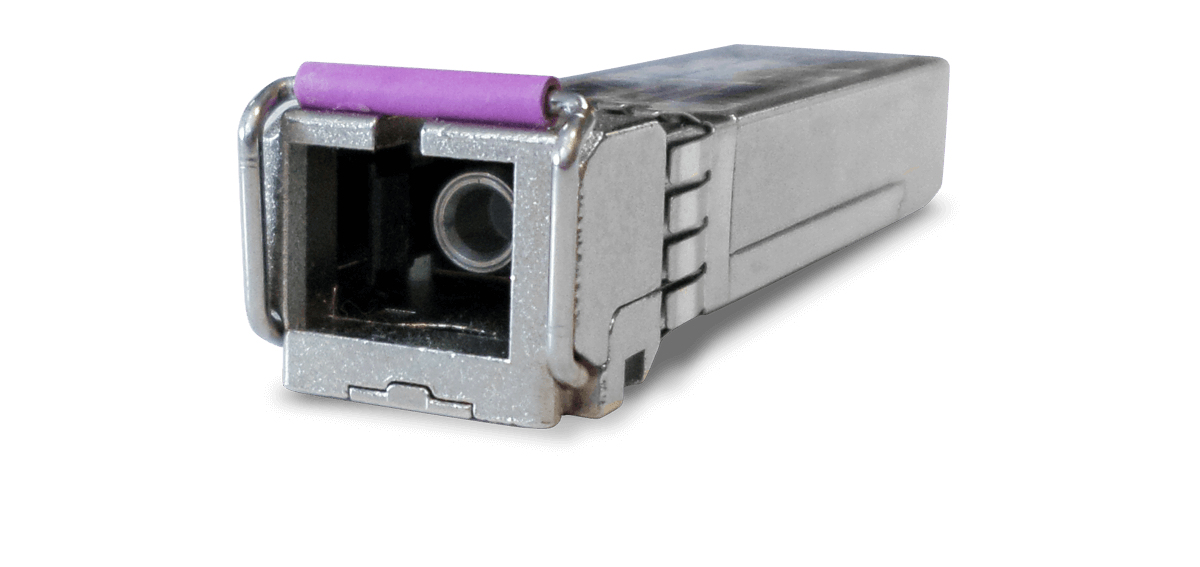

ALLIED TELESIS 20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 M

20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 MICRON (TX=1490 NM RX=1310 NM) FOR IMG AND IE SERIES INDUSTRIAL TEMPERATURE

  • Brand: ALLIED TELESIS
  • Category: Network Accessories
  • SKU: 3744548
  • MPN: AT-SPBD20-14/I

Allied Telesis AT-SPBD20-14/I network transceiver module Fiber optic…

Allied Telesis AT-SPBD20-14/I, Fiber optic, 1000 Mbit/s, SFP, SC, 20000 m, 1490 nm

ALLIED TELESIS 20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 M

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:3744548

Part #: 3744548

Search this part on Google

Product colour

Metallic

Plug and Play

Yes

Hot-swap

Yes

SFP transceiver type

Fiber optic

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

SC

Returns & Warranty

Comsys Price

$896.99
On Sale

Save $264.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $224.25 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS 20 KM BIDIRECTIONAL 1 GIGABIT SFP 9 M

The Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity. These hot-swappable fiber interfaces simply plug into the SFP slot on all SFP-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.

Key features

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 1000 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: SC
  • Maximum transfer distance: 20000 m
  • Tx wavelength (max): 1490 nm
  • Rx wavelength (max): 1310 nm
  • Tx power (min): -9 dBmW
  • Tx power (max): -3 dBmW
  • Link budget: 14 dB
  • Duplex system: Full
  • Digital Diagnostics Monitoring (DDM): No
  • Fiber ports quantity: 1
  • Product colour: Metallic
  • Plug and Play: Yes
  • Hot-swap: Yes
  • Operating temperature (T-T): -40 - 95 °C
  • Operating temperature (T-T): -40 - 203 °F
  • Quantity per pack: 1 pc(s)
  • RX sensitivity: -23 dB
