ALLIED TELESIS DESKTOP MINI MC 100TX TO 100FX
Desktop Mini MC 100TX to 100FX SC Connector Federal V
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 4282880
- MPN: AT-DMC100/SC-90
Allied Telesis AT-DMC100/SC-90 network media converter 100 Mbit/s…
Allied Telesis AT-DMC100/SC-90, 100 Mbit/s, 100Base-TX, 100Base-FX, IEEE 802.1Q, Fast Ethernet, 100 Mbit/s
Click or hover over image to enlarge
Power consumption (typical)
1.5 W
Maximum data transfer rate
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.1Q
Ethernet interface type
Fast Ethernet
Data transfer rate
100 Mbit/s
Packet forwarding rate (10 Mbps)
14880 pps
Comsys Price
Save $140.01 off RRP
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $119.02 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS DESKTOP MINI MC 100TX TO 100FX

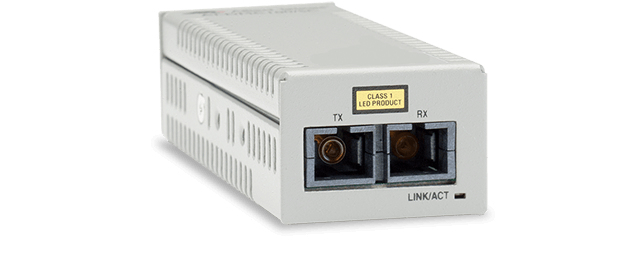

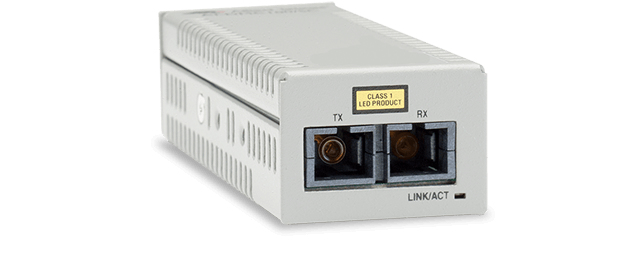

This desktop media converter features 100TX to 100FX conversion with multi-mode SC fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Key features
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 100Base-TX
- Converter output interface: 100Base-FX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Fast Ethernet
- Data transfer rate: 100 Mbit/s
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (1 Gbps): 1488000 pps
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Duplex system: Full, Half
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Fiber mode structure: Multi-mode
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- Tx power (min): -22.5 dBmW
- Tx power (max): -14 dBmW
- Rx power (min): -32 dBmW
- Rx power (max): -34 dBmW
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- Connectivity technology: Wired
- Fiber optic connector: SC
- Power consumption (typical): 1.5 W
- Width: 31.8 mm
- Depth: 91.4 mm
- Height: 21.6 mm
- Weight: 113 g
+ 5 more — see the Specifications tab.
Inc GST
$476.09
