ALLIED TELESIS DESKTOP MINI MEDIA CONVERTER 100TX TO 1
Desktop Mini Media Converter 100TX to 100FX LC Connector USB Power Only
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 4332516
- MPN: AT-DMC100/LC-00
Allied Telesis AT-DMC100/LC-00 network media converter 100 Mbit/s… Save $160.01 off RRP
Available On OrderAsk us for ETA
$492.19
Inclusive of GST
1
4 payments of $123.05Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-IM-019911
- MPN:
- AT-DMC100/LC-00
- Brand:
- ALLIED TELESIS
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $160.01 off RRP while stocks last.
ALLIED TELESIS DESKTOP MINI MEDIA CONVERTER 100TX TO 1

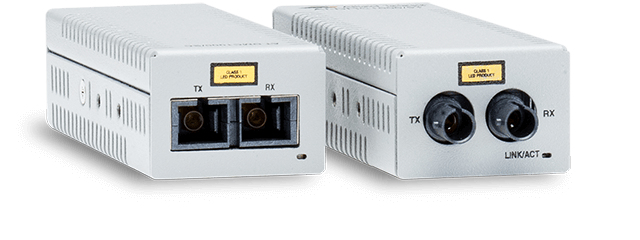

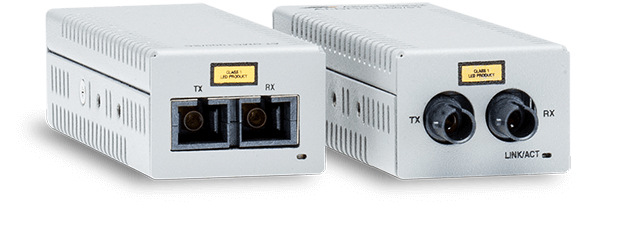

The Allied Telesis DMC100 Series of Fast Ethernet mini media converters are among the smallest media converters on the market today.
Overview
Just 1.25"W × 3.6"D × 0.85"H
Can be powered with the included Micro USB to USB cable and plugged directly into a laptop or desktop
Compact, with a very small carbon footprint
No installation time, just plug and play
Auto negotiation
Transparent to IEEE 802.1Q packets
Auto MDI/MDI-X
Smart MissingLink
Smart Link Restoration
Link test
RoHS compliant
Overview
Just 1.25"W × 3.6"D × 0.85"H
Can be powered with the included Micro USB to USB cable and plugged directly into a laptop or desktop
Compact, with a very small carbon footprint
No installation time, just plug and play
Auto negotiation
Transparent to IEEE 802.1Q packets
Auto MDI/MDI-X
Smart MissingLink
Smart Link Restoration
Link test
RoHS compliant
Key features
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 100Base-TX
- Converter output interface: 100Base-FX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Fast Ethernet
- Fiber ethernet cabling technology: 100BASE-FX
- Data transfer rate: 100 Mbit/s
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Link Loss Carry Forward (LLCF) supported: Yes
- Link Loss Return (LLR) supported: Yes
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Fiber mode structure: Multi-mode
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- Tx power (min): -22.5 dBmW
- Tx power (max): -14 dBmW
- Rx power (min): -32 dBmW
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: LC
- Input voltage: 5 V
- Input current: 0.5 A
- Width: 31.8 mm
- Depth: 91.4 mm
