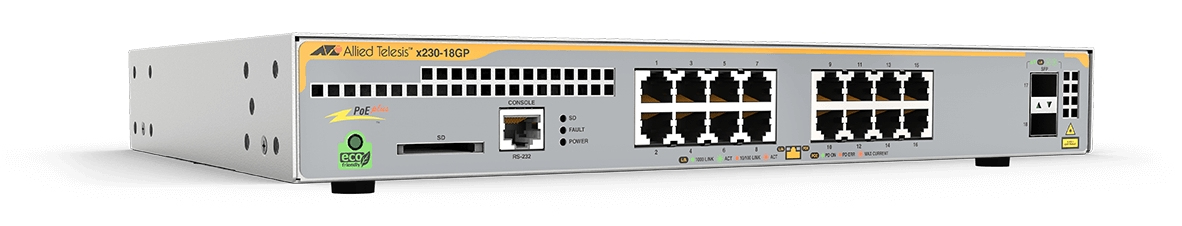

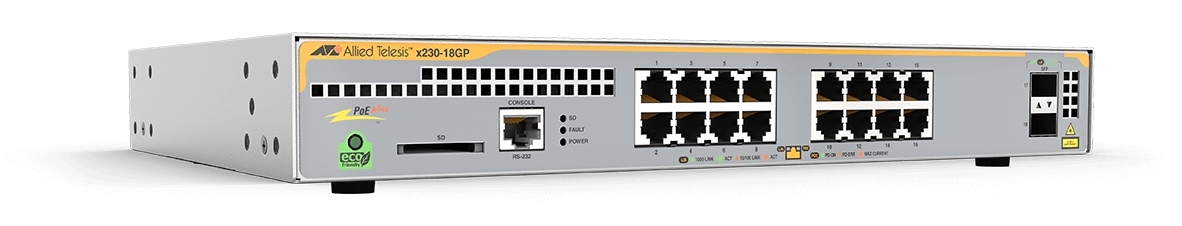

ALLIED TELESIS L2+ Giga Switch 16x 10/100/1000-T PoE+
L2+ Giga Switch 16x 10/100/1000-T PoE+ 2x SFP Ports and single fixed PSU AU Power Cord.
- Brand: ALLIED TELESIS
- Category: Switches
- SKU: 6153658
- MPN: AT-X230-18GP-40
Allied Telesis AT-X230-18GP-30 Managed L3 Gigabit Ethernet…
Allied Telesis AT-X230-18GP-30, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Click or hover over image to enlarge
AC input voltage
90 - 260 V
AC input frequency
47/63 Hz
Power consumption (typical)
21 W
Rack mounting
Yes
Stackable
Yes
Product colour
Grey
LED indicators
Yes
Safety
UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Four payments of $588.22 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS L2+ Giga Switch 16x 10/100/1000-T PoE+
The Allied Telesis x230-18GP features 16 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. A full feature-set with Power over Ethernet Plus (PoE+) makes it ideal for applications at the network edge, supporting the growth of wireless networking and digital video surveillance.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: Y
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
- Power connector: DC-in jack
- Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Switching capacity: 36 Gbit/s
- Throughput: 26.8 Mpps
- MAC address table: 16000 entries
- DHCP features: DHCP server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
- Multicast support: Yes
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
- LED indicators: Yes
- Safety: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
+ 21 more — see the Specifications tab.
Inc GST
$2,352.89
