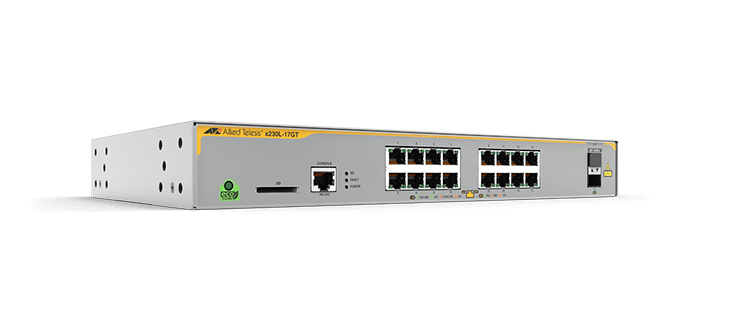

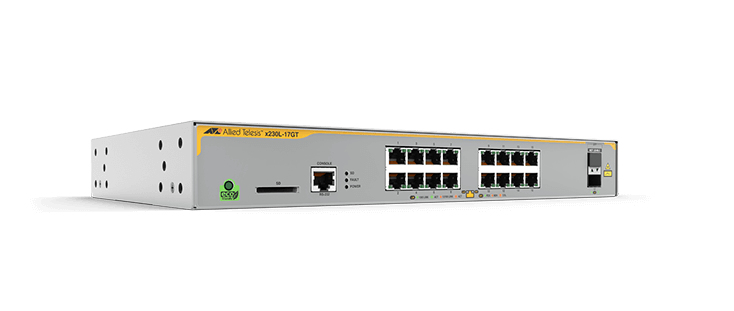

ALLIED TELESIS L2+ switch with 16 x 10/100/1000T ports

L2+ switch with 16 x 10/100/1000T ports and 1 x 100/1000X SFP ports fan-less model AU Power Cord.

  • Brand: ALLIED TELESIS
  • Category: Switches
  • SKU: 6200166
  • MPN: AT-X230L-17GT-40

Allied Telesis X230L-17GT L3 Gigabit Ethernet (10/100/1000) Grey

Allied Telesis X230L-17GT, L3, Gigabit Ethernet (10/100/1000), Full duplex

ALLIED TELESIS L2+ switch with 16 x 10/100/1000T ports

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:6200166

Part #: 6200166

Search this part on Google

Power consumption (max)

15 W

Stackable

Yes

Product colour

Grey

LED indicators

Yes

Number of fans

0 fan(s)

Safety

UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Electromagnetic compatibility

EN55022 A, FCC A, VCCI A

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Returns & Warranty

Comsys Price

$1,726.14

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $431.54 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS L2+ switch with 16 x 10/100/1000T ports

The Allied Telesis x230L-17GT features 16 x 10/100/1000T ports with 1 SFP Gigabit uplink port. A full feature-set and compact design make it ideal for high-demand applications at the network edge, while silent fanless operation enables deployment in work areas or on the desktop.

Key features

  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • MIB support: SNMP
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 1
  • Fiber optic connector: SFP
  • Compatible memory cards: SD, SDHC
  • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • VLAN support: Yes
  • Virtual LAN features: Private VLAN, Voice VLAN
  • Number of VLANs: 4094
  • Fiber ethernet cabling technology: 100BASE-BX, 100BASE-FX, 100BASE-X, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX
  • Switching capacity: 34 Gbit/s
  • Forwarding rate: 25.3 Mpps
  • MAC address table: 16000 entries
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 10000

+ 43 more — see the Specifications tab.
