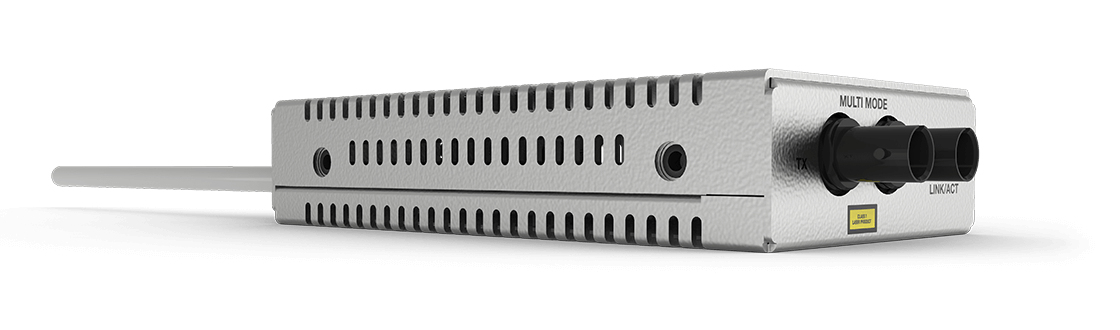

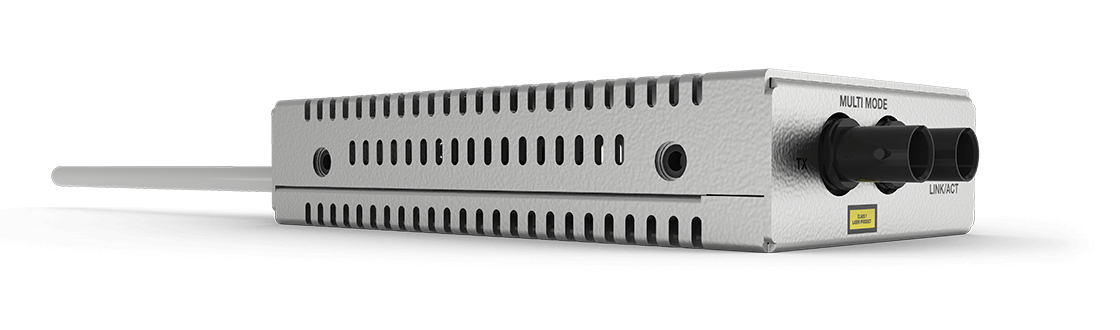

ALLIED TELESIS MINI MEDIA CONV MM ST FIBER CON

mini media conv mm ST fiber con USB A/C to 100SX/ST Fast Eth

  • Brand: ALLIED TELESIS
  • Category: Network Accessories
  • SKU: 4174291
  • MPN: AT-UMC200/ST-901

Allied Telesis AT-UMC200/ST-901 network media converter 100 Mbit/s…

Allied Telesis AT-UMC200/ST-901, 100 Mbit/s, 100Base-SX, IEEE 802.1Q, IEEE 802.1p, Fast Ethernet, 100 Mbit/s, 2000 m

ALLIED TELESIS MINI MEDIA CONV MM ST FIBER CON

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:4174291

Part #: 4174291

Search this part on Google

Maximum data transfer rate

100 Mbit/s

Converter output interface

100Base-SX

Networking standards

IEEE 802.1Q, IEEE 802.1p

Ethernet interface type

Fast Ethernet

Data transfer rate

100 Mbit/s

Jumbo frames support

Yes

VLAN support

Yes

Internal

No

Returns & Warranty

Comsys Price

$501.39
On Sale

Save $149.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $125.35 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS MINI MEDIA CONV MM ST FIBER CON

The Allied Telesis UMC200/ST Fast Ethernet mini media converter is small and flexible, with a multi-mode ST fiber connector to convert USB (-A or -C) to 100SX/ST. It is also TAA compliant.

Key features

  • Maximum data transfer rate: 100 Mbit/s
  • Converter output interface: 100Base-SX
  • Networking standards: IEEE 802.1Q, IEEE 802.1p
  • Ethernet interface type: Fast Ethernet
  • Data transfer rate: 100 Mbit/s
  • Jumbo frames support: Yes
  • VLAN support: Yes
  • Maximum transfer distance: 2000 m
  • Wavelength: 1310 nm
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
  • Tx power (min): -20 dBmW
  • Tx power (max): -14 dBmW
  • Rx power (min): -32 dBmW
  • Internal: No
  • LED indicators: Yes
  • Product colour: Grey
  • Connectivity technology: Wired
  • Fiber optic connector: ST
  • Width: 54.9 mm
  • Depth: 101.6 mm
  • Height: 21.8 mm
  • Weight: 170 g
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -30 - 70 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3048 m
