Allied Telesis AT-DMC1000/ST-00 network media converter 1000 Mbit/s…

Name: ALLIED TELESIS MMC 1000TX TO 1000SX ST CONNECTOR USB PO
Brand: ALLIED TELESIS
SKU: 5316108
Price: 620.99 NZD
Availability: BackOrder

Allied Telesis AT-DMC1000/ST-00, 1000 Mbit/s, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s

Click or hover over image to enlarge

Brand:ALLIED TELESIS

MPN:5316108

Part #: 5316108

Search this part on Google

Power consumption (typical)

1.5 W

Maximum data transfer rate

1000 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-SX

Networking standards

IEEE 802.1Q

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Copper ethernet cabling technology

1000BASE-T

Returns & Warranty

Comsys Price

$620.99

On Sale

Save $67.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Four payments of $155.25 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS MMC 1000TX TO 1000SX ST CONNECTOR USB PO

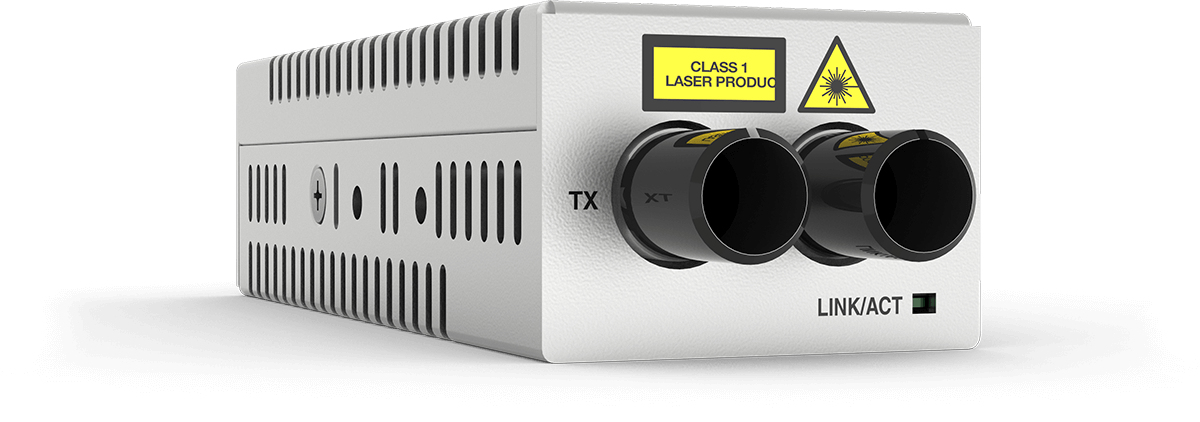

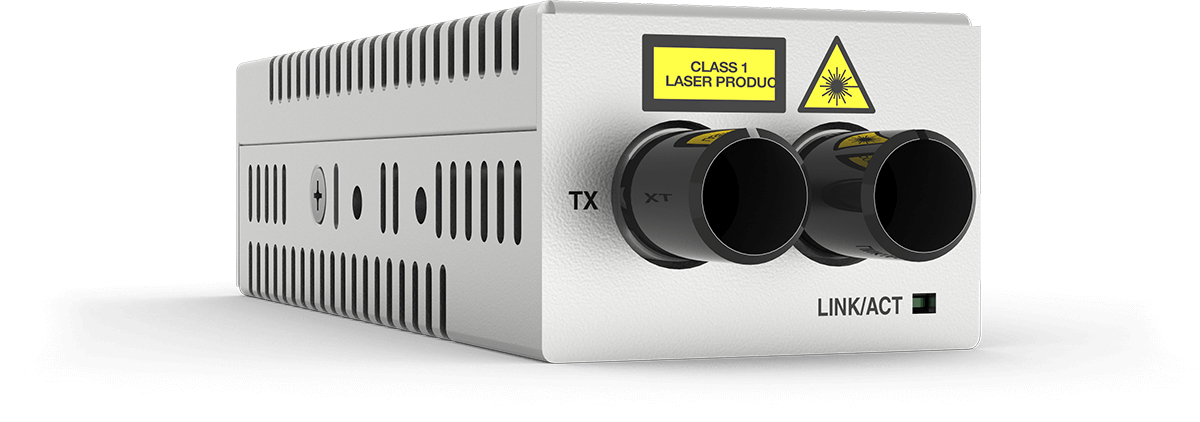

This desktop media converter features 1000T to 1000SX conversion with ST multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Key features

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T
Converter output interface: 1000Base-SX
Networking standards: IEEE 802.1Q
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 1000BASE-T
Fiber ethernet cabling technology: 1000BASE‑SX
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (100 Mbps): 148880 pps
Packet forwarding rate (1 Gbps): 1488000 pps
VLAN support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Duplex system: Full, Half
Maximum transfer distance: 550 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Tx power (min): -9.5 dBmW
Tx power (max): -4 dBmW
Rx power (min): -17 dBmW
Internal: No
LED indicators: Yes
Product colour: Grey
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 2
Fiber optic connector: ST
Power consumption (typical): 1.5 W
Width: 31.8 mm

+ 8 more — see the Specifications tab.
