APC (AP6120A) RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19
Power & UPS > PDUs
- Brand: APC
- Category: Racks & Cabinets
- SKU: AP6120A
- MPN: AP6120A

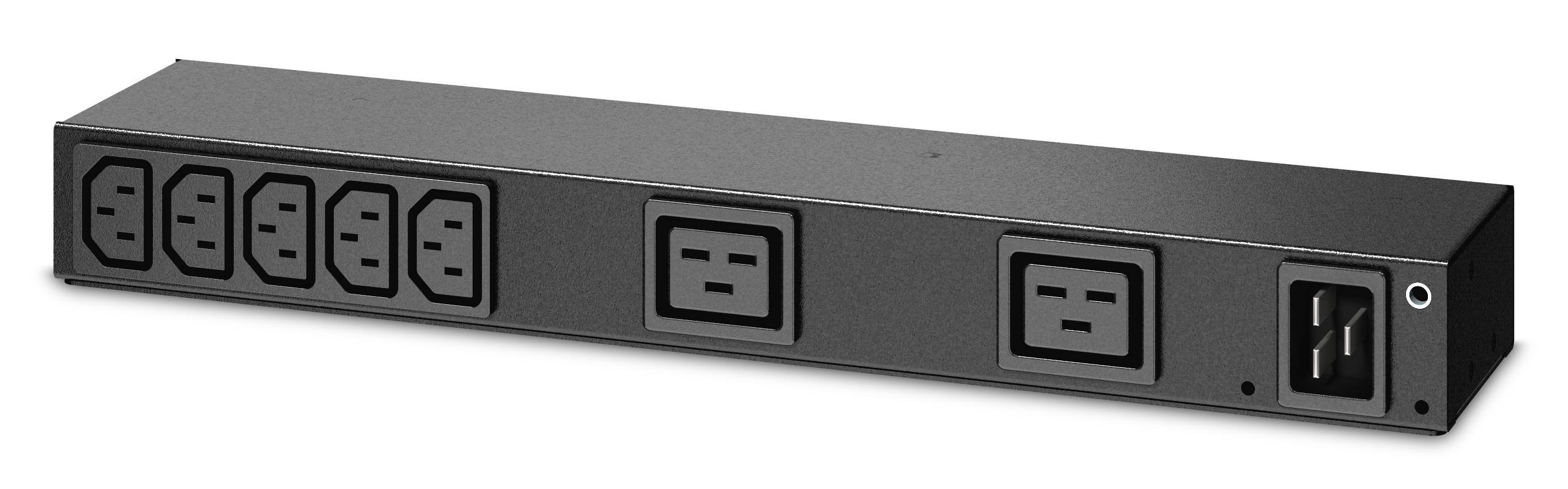

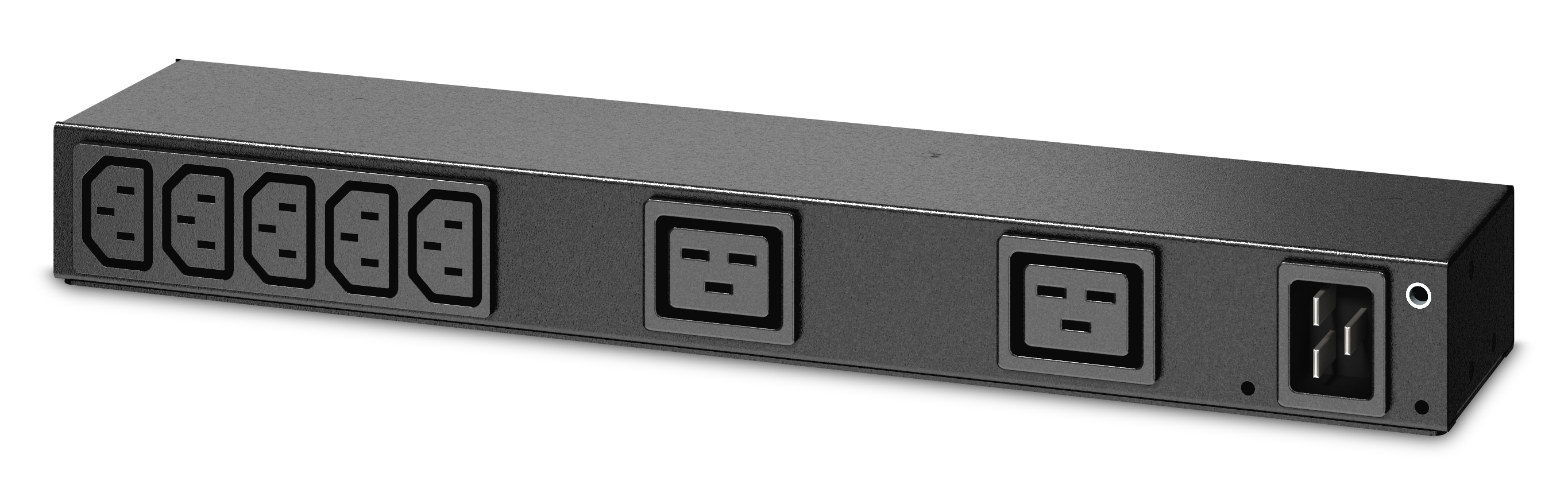

APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black
APC AP6120A, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 7 AC outlet(s)
Click or hover over image to enlarge
Nominal input voltage
100-240 V
AC input frequency
50 - 60 Hz
Maximum current
20 A
Nominal output voltage
100-240 V
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum power
3680 W
PDU types
Basic
Comsys Price
Available to Order
Ships in 1–5 business days
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $56.35 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC (AP6120A) RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
- AC outlets quantity: 7 AC outlet(s)
- Power plug: C20 coupler
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 20 A
- Nominal output voltage: 100-240 V
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum power: 3680 W
- Compliance certificates: RoHS
- Certification: UL/C-UL, VDE, CE
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -15 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 4.36 mm
- Depth: 9.29 mm
- Height: 38.8 mm
- Weight: 1.56 kg
Inc GST
$225.39
