APC ATS Rack 200-208V-30A L6-30 in (1

APC Rack ATS 200-208V 30A L6-30 in (16) C13 (2) C19 out

  • Brand: APC
  • Category: UPS Systems
  • SKU: 6182264
  • MPN: AP4432A
APC ATS Rack 200-208V-30A L6-30 in (1 — APC — Power & UPS > UPS Systems

APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 200/208V, 2… Save $573.01 off RRP

Available On OrderAsk us for ETA
$2,877.29

Inclusive of GST

1
Afterpay4 payments of $719.32
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-IM-000061
MPN:
AP4432A
Brand:
APC

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $573.01 off RRP while stocks last.

APC ATS Rack 200-208V-30A L6-30 in (1

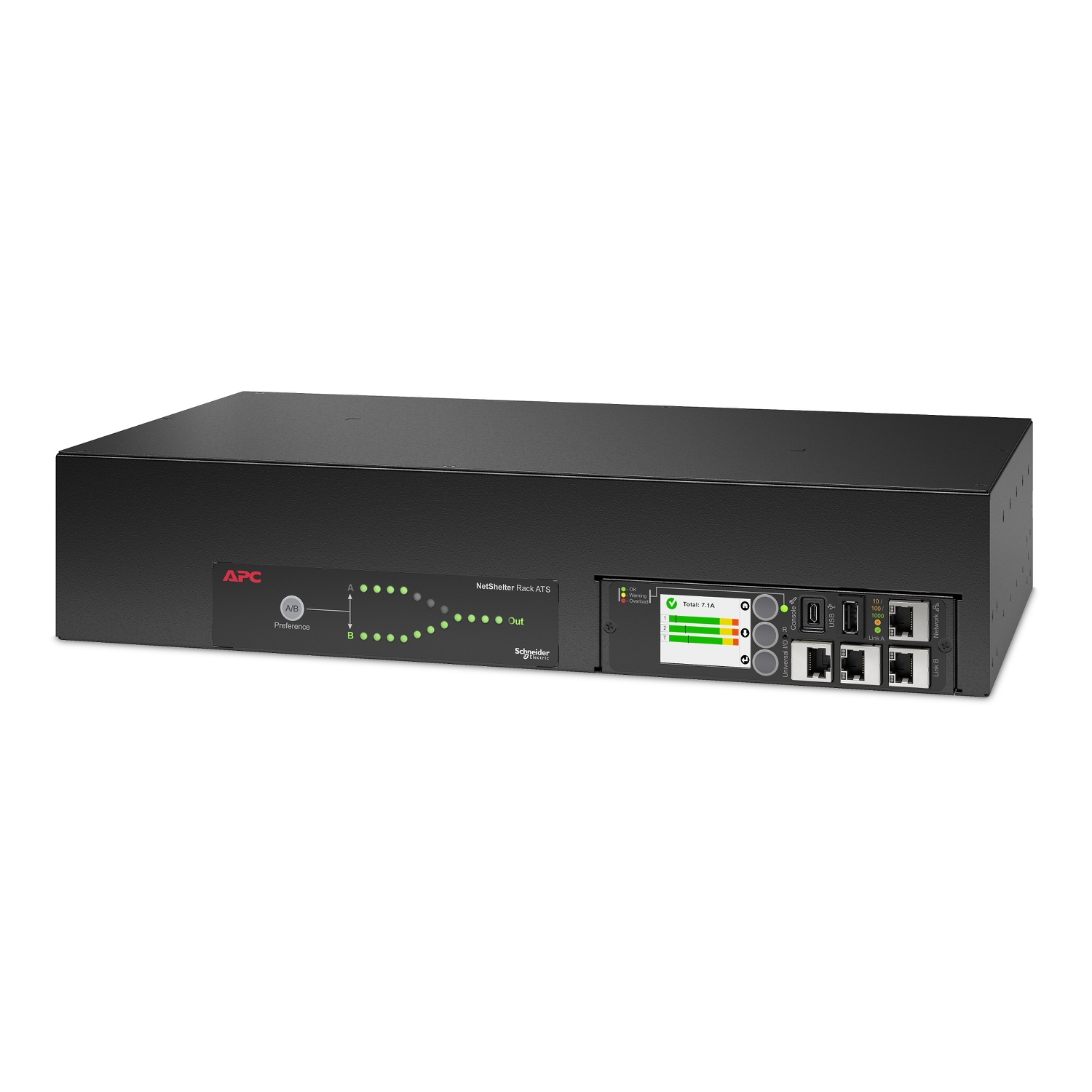

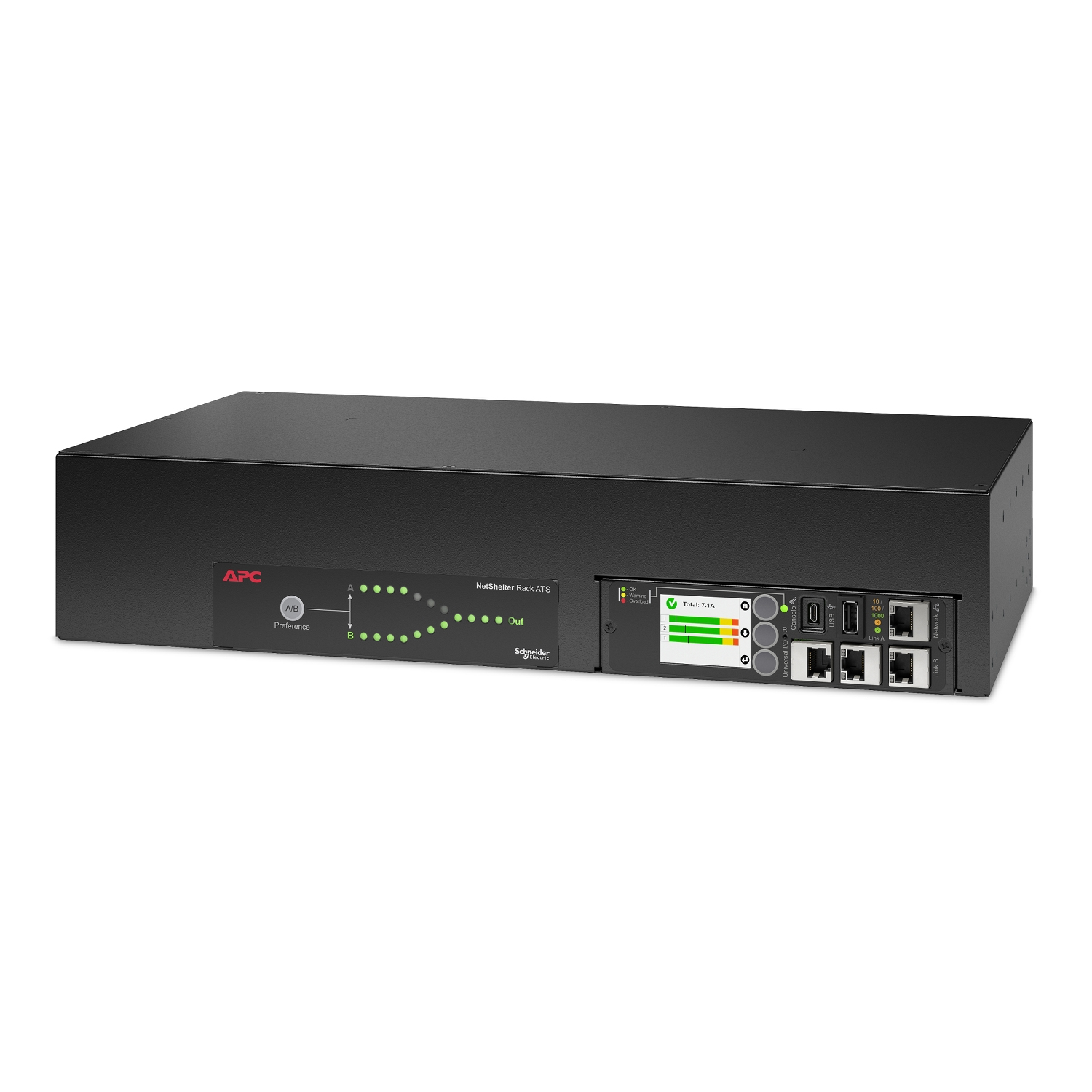

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4432A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4432A is single phase 2U Rack ATS with 30A rated current, 200V/208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with inbuilt circuit breaker protection, 2 NEMA L6-30P inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Key features

  • Input operation voltage (min): 180 V
  • Input operation voltage (max): 220 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 30 A
  • Output operation voltage (min): 200 V
  • Output operation voltage (max): 208 V
  • Output current: 30 A
  • LED indicators: Yes
  • Form factor: Rackmount
  • Rack capacity: 2U
  • Product colour: Black
  • Certification: REACH, RoHS, WEEE, PSE, TÜV-C, TÜV-NURTL
  • AC outlets quantity: 18 AC outlet(s)
  • AC outlet types: C13 coupler, C19 coupler
  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Doesn't contain: Mercury
  • Total carbon footprint (kg of CO2e): 754.59
  • Warranty period: 2 year(s)
  • Compliance certificates: REACH, RoHS, WEEE
  • Width: 432 mm
  • Depth: 236 mm
  • Height: 88 mm
  • Weight: 6.58 kg
  • Package width: 584 mm
  • Package depth: 356 mm
  • Package height: 210 mm
  • Package weight: 9.07 kg
