APC BASIC VERTICAL PDU, 230V, 32A, 7.4KW, C13(20), C19(4), IEC-309, 2YR

Power & UPS > PDUs

  • Brand: APC
  • Category: Racks & Cabinets
  • SKU: AP7553
  • MPN: AP7553

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power…

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)

APC BASIC VERTICAL PDU, 230V, 32A, 7.4KW, C13(20), C19(4), IEC-309, 2YR

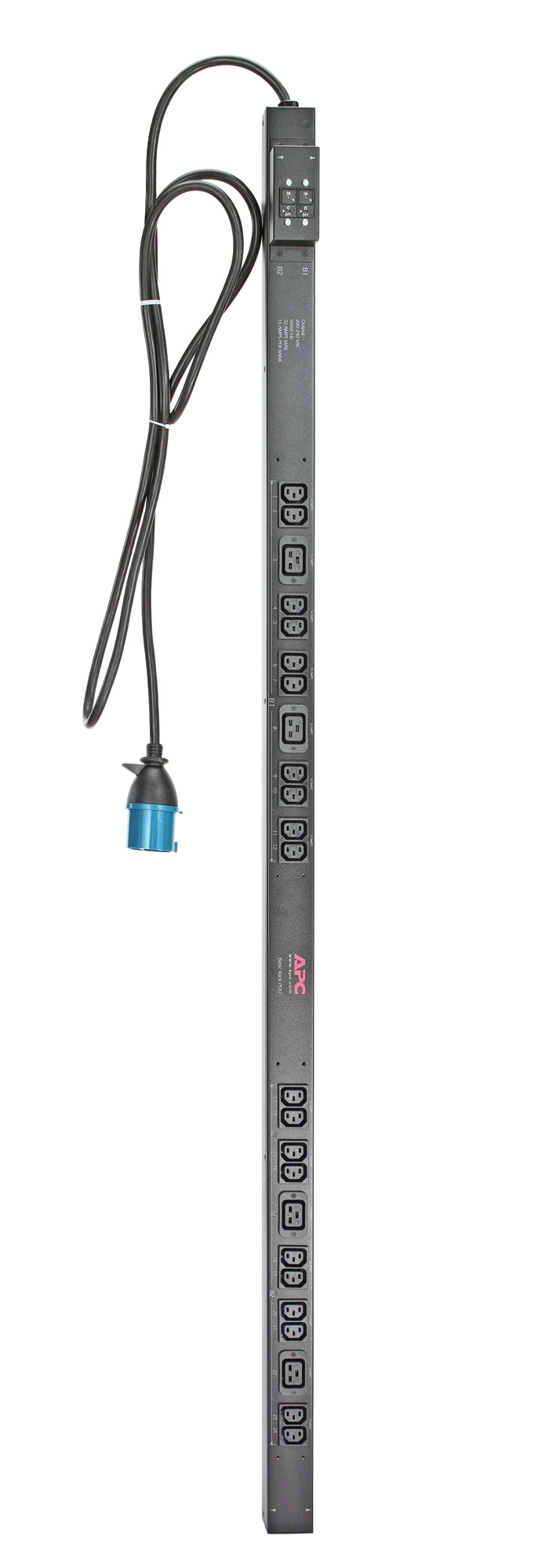

Click or hover over image to enlarge

Brand:APC
MPN:AP7553

Part #: AP7553

Search this part on Google

Nominal input voltage

230 V

Nominal output voltage

230 V

Output voltage

230 V

Load capacity

7680 VA

Maximum input current per phase

32 A

Maximum total current draw per phase

32 A

Maximum power

7680 W

PDU types

Basic

Returns & Warranty

Comsys Price

$1,029.24
On Sale

Save $64.01 off RRP

In Stock

8 units available

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $257.31 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC BASIC VERTICAL PDU, 230V, 32A, 7.4KW, C13(20), C19(4), IEC-309, 2YR

Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities

Key features

  • PDU types: Basic
  • Type: Single-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • I/O ports: (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
  • Input connection type: IEC 309 32A
  • Output connections: (20) IEC 320 C13 (4) IEC 320 C19
  • Cable length: 3050 m
  • Nominal input voltage: 230 V
  • Nominal output voltage: 230 V
  • Output voltage: 230 V
  • Load capacity: 7680 VA
  • Maximum input current per phase: 32 A
  • Maximum total current draw per phase: 32 A
  • Maximum power: 7680 W
  • Operating temperature (T-T): -25 - 65 °C
  • Storage temperature (T-T): 0 - 45 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Width: 56 mm
  • Depth: 44 mm
  • Height: 1619 mm
  • Weight: 5.57 kg
  • Package weight: 6.48 kg
  • Package width: 152 mm
  • Package depth: 127 mm

+ 1 more — see the Specifications tab.
