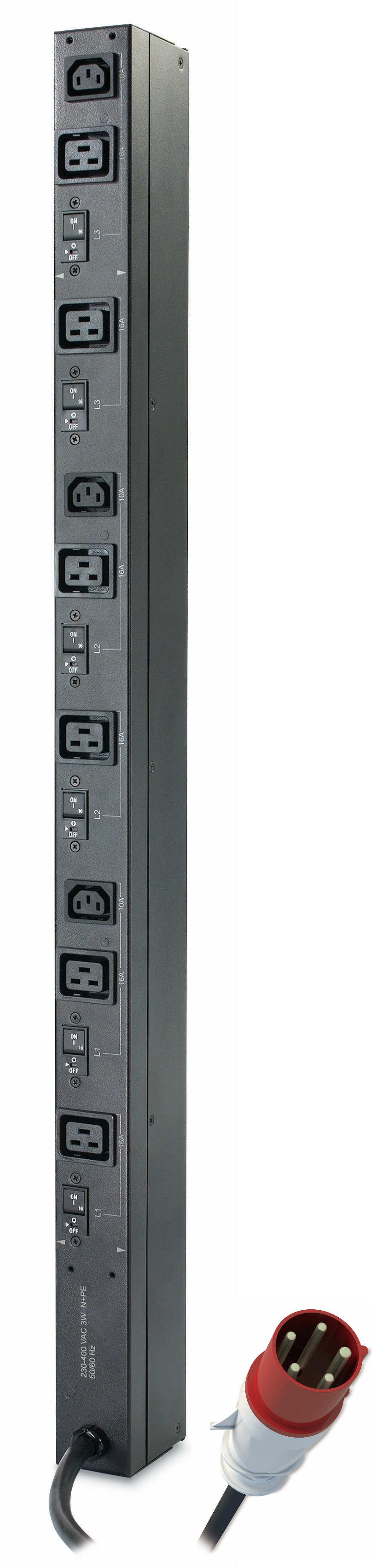

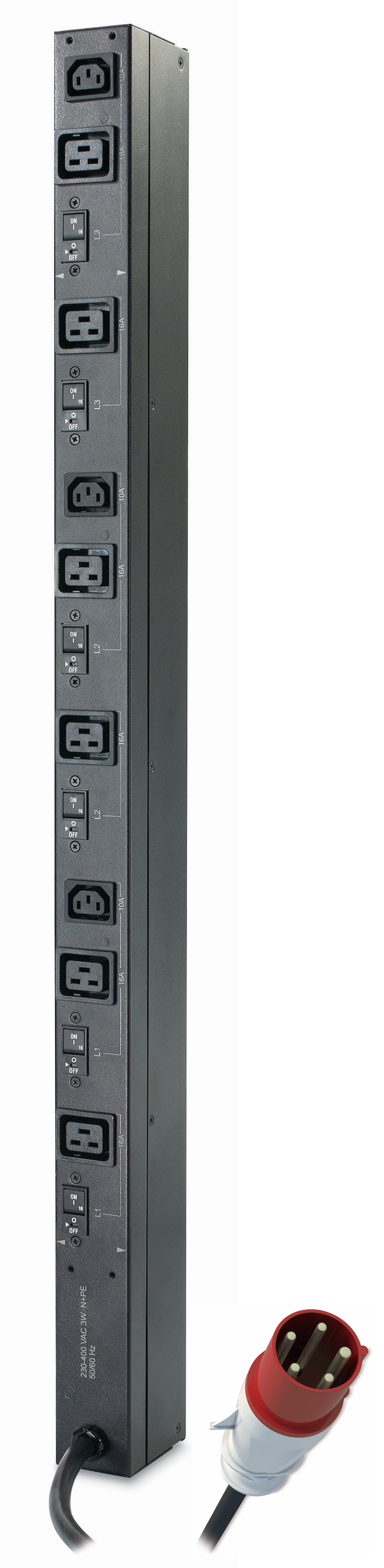

APC Rack PDU Basic Zero U power distribution unit (PDU) 9 AC…

Name: APC BASIC VERTICAL PDU, 400V 16A, 22KW, C19(6), C13(3), IEC-309, 2YR
Brand: APC
SKU: AP7555A
Price: 2097.59 NZD
Availability: BackOrder

APC Rack PDU Basic Zero U, Basic, 0U, Vertical, Black, 9 AC outlet(s), C13 coupler, C19 coupler

Click or hover over image to enlarge

Brand:APC

MPN:AP7555A

Part #: AP7555A

Search this part on Google

Nominal input voltage

400 V

AC input frequency

47/63 Hz

Nominal output voltage

230 V

Load capacity

22080 VA

Maximum input current per phase

32 A

Maximum total current draw per phase

32 A

Maximum power

22000 W

PDU types

Basic

Returns & Warranty

Comsys Price

$2,097.59

On Sale

Save $126.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Four payments of $524.40 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC BASIC VERTICAL PDU, 400V 16A, 22KW, C19(6), C13(3), IEC-309, 2YR

APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19

Includes: Installation guide, Toolless Mounting Kit.

Key features

PDU types: Basic
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
AC outlets quantity: 9 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Input connection type: IEC 309 32A 3P+N+PE
Output connections: - (3) IEC 320 C13 - (6) IEC 320 C19
Cable length: 1.83 m
Nominal input voltage: 400 V
AC input frequency: 47/63 Hz
Nominal output voltage: 230 V
Load capacity: 22080 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Maximum power: 22000 W
Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Width: 55 mm
Depth: 88 mm
Height: 927 mm
Weight: 4.75 kg
Package weight: 6.25 kg
Package width: 286 mm
Package depth: 70 mm
Package height: 1054 mm
