APC Easy PDU 2G Metered-by-Outlet with ZeroU

Easy PDU 2G Metered-by-Outlet with Switching ZeroU 16A 230V (20) C13 and (4) C19

  • Brand: APC
  • Category: UPS Systems
  • SKU: 6181720
  • MPN: EPDU2116SMBO
APC Easy PDU 2G Metered-by-Outlet with ZeroU — APC — Power & UPS > UPS Systems

APC Easy Rack PDU, Switched Metered Outlet, 0U, 1 Phase, 3.7kW,… Save $392.01 off RRP

Available On OrderAsk us for ETA
$2,050.44

Inclusive of GST

1
Afterpay4 payments of $512.61
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-IM-000058
MPN:
EPDU2116SMBO
Brand:
APC

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $392.01 off RRP while stocks last.

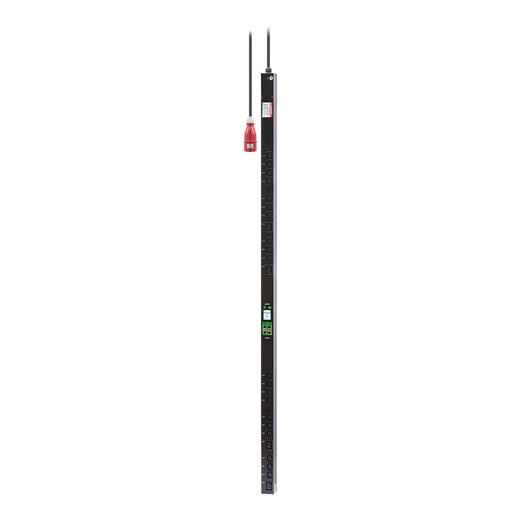

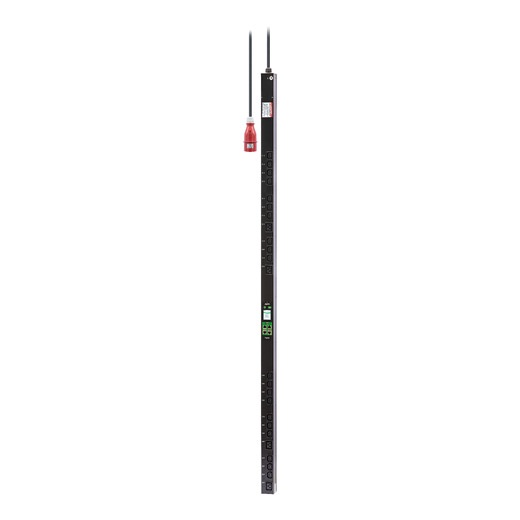

APC Easy PDU 2G Metered-by-Outlet with ZeroU

Easy rack PDU Metered-by-Outlet with Switching EPDU2116SMBO provides advanced power monitoring and control capabilities for individual outlets, empowering critical IT infrastructure. The APC Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2116SMBO is designed for single phase applications of upto 3.7kw and industry standards of 1% metering accuracy. This comes with IEC 60309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.

Key features

  • PDU types: Metered, Switched
  • Type: Single-phase
  • Rack capacity: 0U
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • Ethernet LAN (RJ-45) ports: 1
  • USB ports quantity: 1
  • Cable length: 3 m
  • Nominal input voltage: 200 - 240 V
  • AC input frequency: 50/60 Hz
  • Maximum current: 16 A
  • Output voltage: 230 V
  • Load capacity: 3680 VA
  • Maximum power: 3700 W
  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 55 mm
  • Depth: 56 mm
  • Height: 1800 mm
  • Weight: 6.67 kg
  • Package weight: 7.84 kg
  • Package width: 195 mm
  • Package depth: 130 mm
  • Package height: 2030 mm
