APC EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES

EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES

  • Brand: APC
  • Category: UPS Systems
  • SKU: E3SUPS20KHB
  • MPN: E3SUPS20KHB

APC Easy 3S uninterruptible power supply (UPS) Double-conversion…

APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V

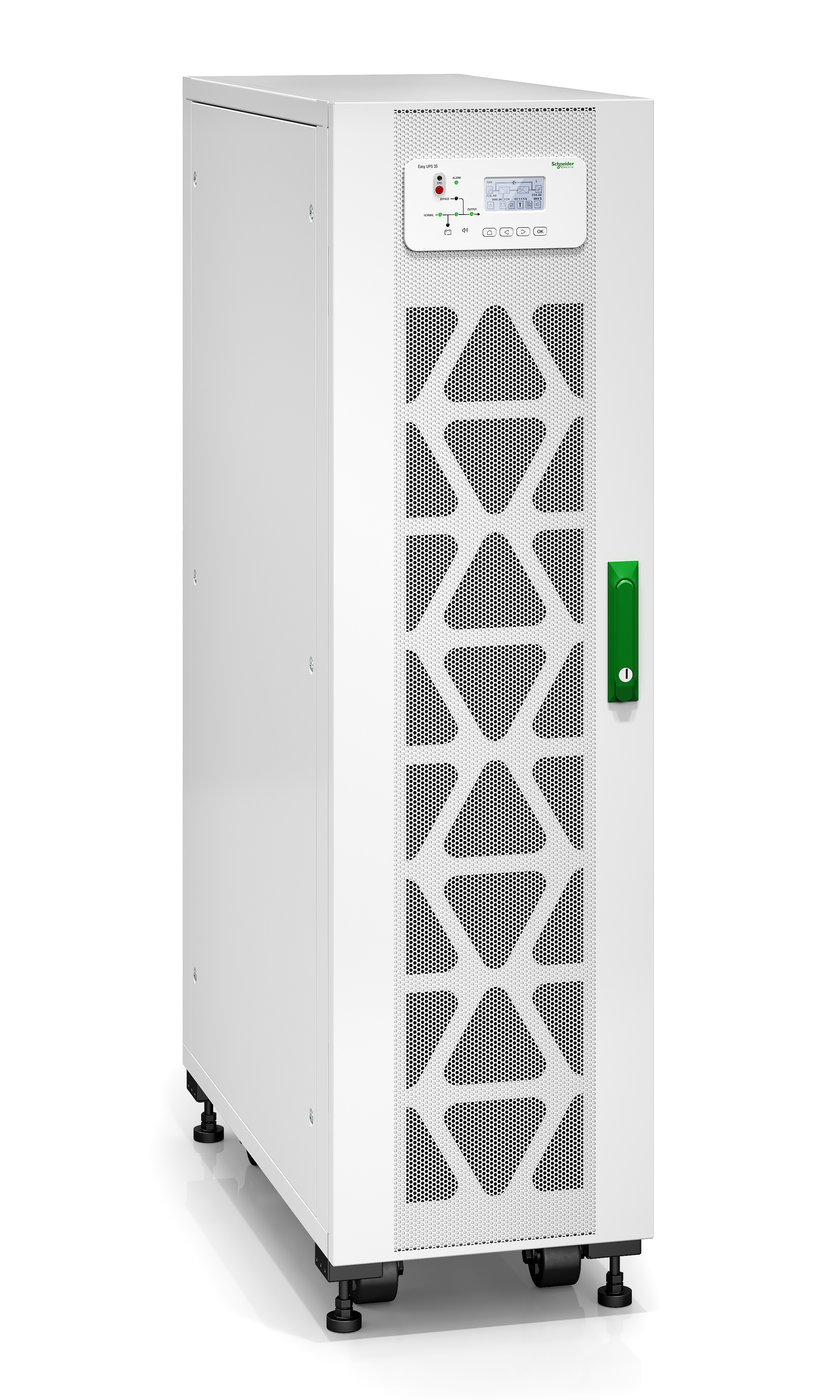

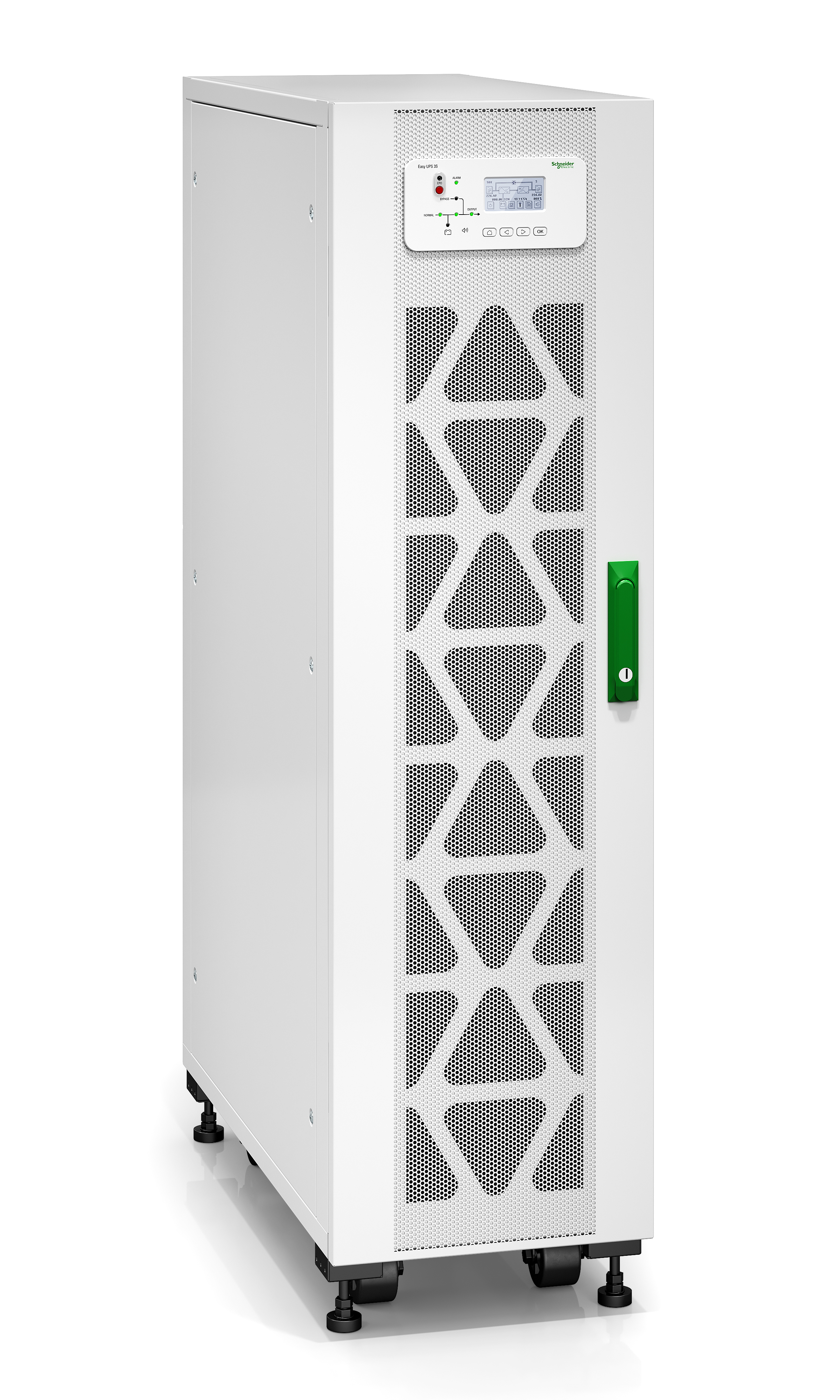

APC EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES

Click or hover over image to enlarge

Brand:APC
MPN:E3SUPS20KHB

Part #: E3SUPS20KHB

Search this part on Google

Form factor

Tower

Product colour

White

Display type

LED

International Protection (IP) code

IP20

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

220 V

Number of batteries supported

3

UPS topology

Double-conversion (Online)

Returns & Warranty

Comsys Price

$13,154.84
On Sale

Save $1,261.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 380 mm, Depth: 928 mm, Height: 1400 mm

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 20 kVA
  • Output power: 20000 W
  • Waveform: Pure sine
  • Input operation voltage (min): 304 V
  • Input operation voltage (max): 477 V
  • Input frequency: 45/65 Hz
  • Output operation voltage (min): 380 V
  • Output operation voltage (max): 415 V
  • Output frequency: 50/60 Hz
  • Maximum current: 37 A
  • Number of input phases: 3
  • Number of output phases: 3
  • Input power factor: 0.99
  • Output voltage Total Harmonic Distortion (THD): 3%
  • Input current Total Harmonic Distortion (THD): 3%
  • SmartSlot: Yes
  • SmartConnect port: No
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery voltage: 220 V
  • Number of batteries supported: 3
  • Form factor: Tower
  • Product colour: White
  • Display type: LED
  • International Protection (IP) code: IP20
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 40 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 999.9 m

+ 15 more — see the Specifications tab.
