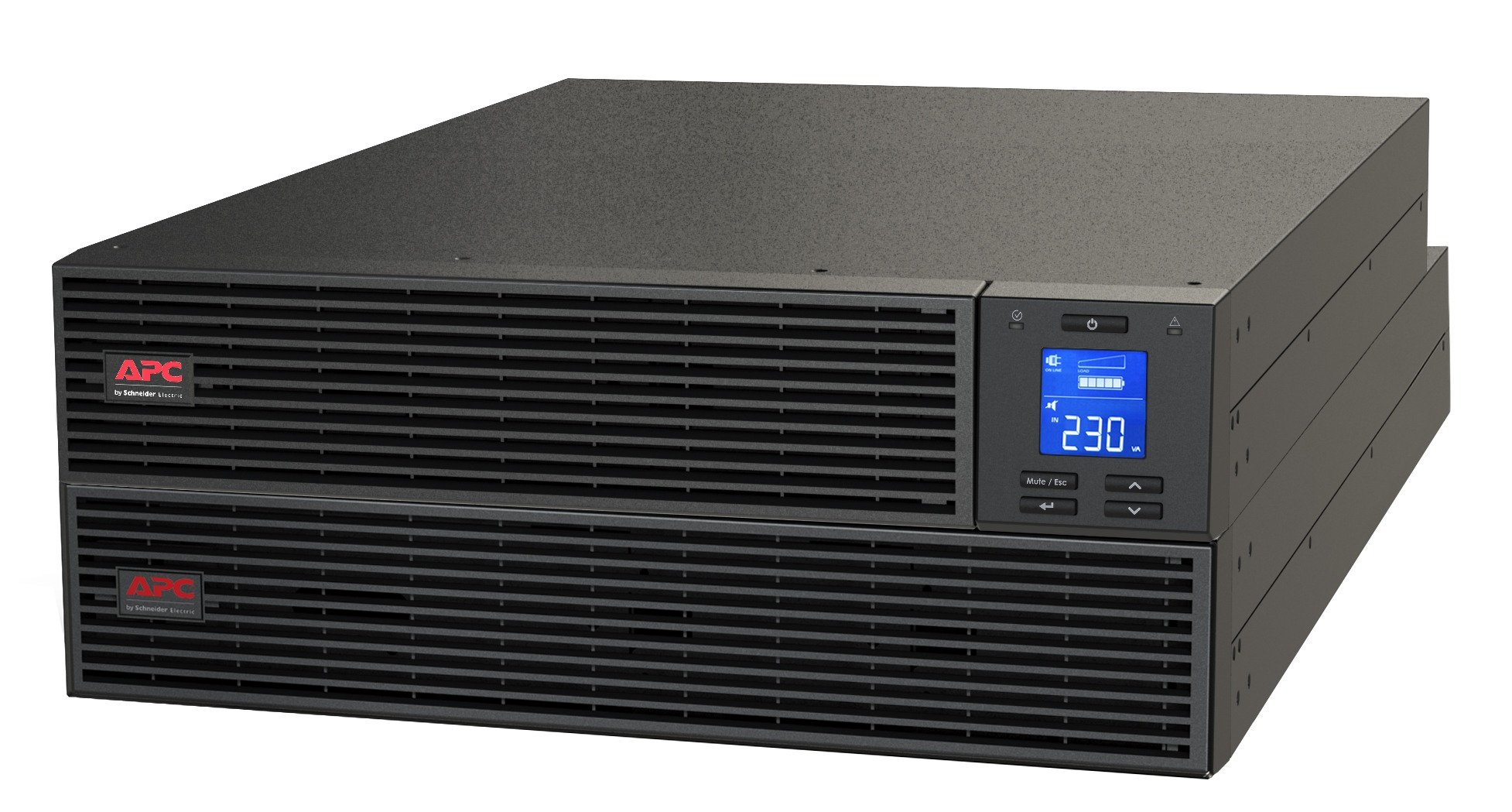

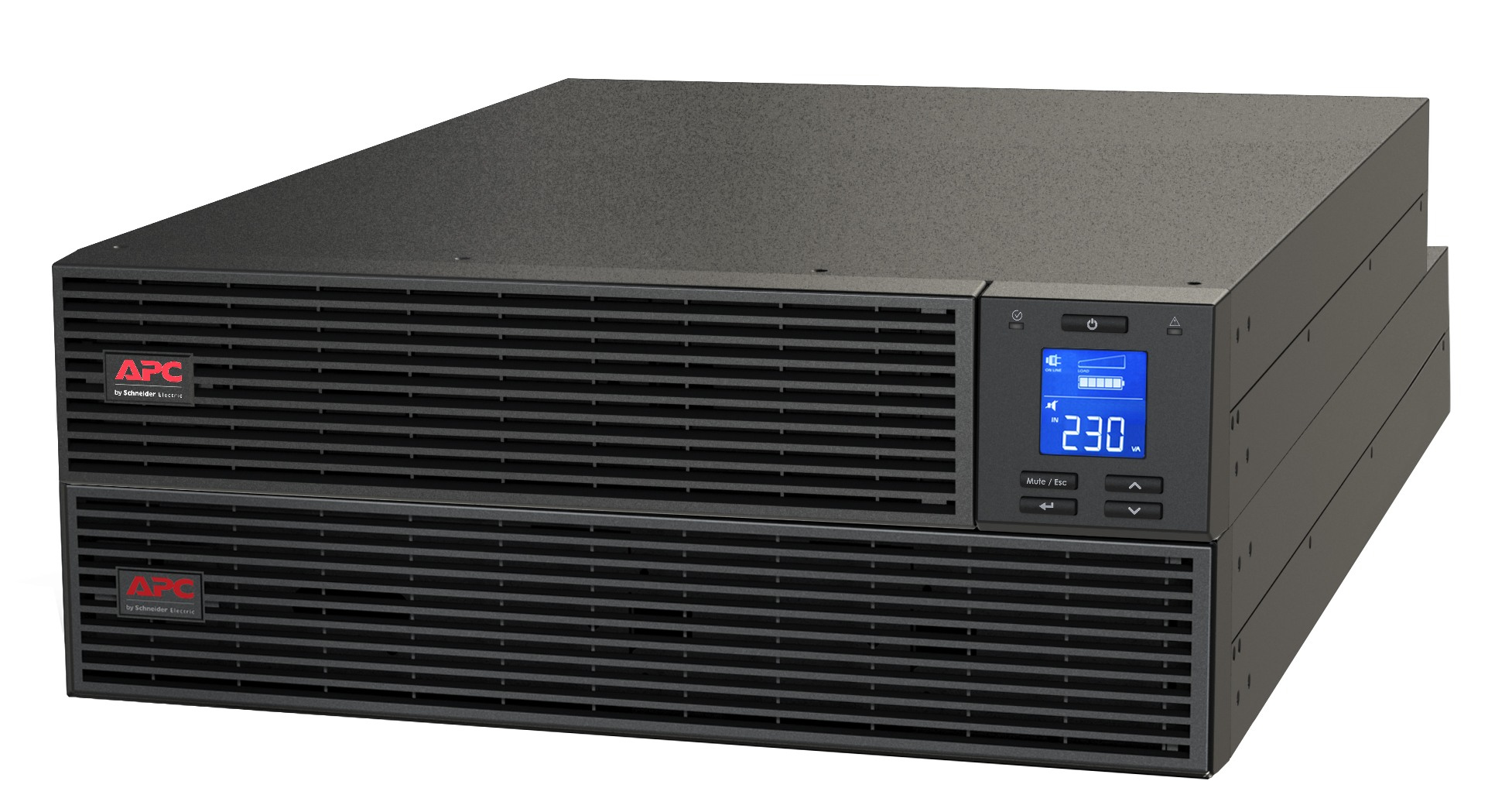

APC EASY UPS SRV RM 10000VA 230V

APC EASY UPS ON-LINE 10KVA/10KW RACKMOUNT 4U 230V HARD WIRE 3-WIRE1P+N+E OUTLET INTELLIGENT CARD SLOT LCD W/O RAIL KIT

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4355746
  • MPN: SRV10KRI

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 4U, 230V, Hard wire…

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 4U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/O rail kit, Double-conversion (Online), 10 kVA, 10000 W, Sine, 220 V, 240 V

APC EASY UPS SRV RM 10000VA 230V

Click or hover over image to enlarge

Brand:APC
MPN:4355746

Part #: 4355746

Search this part on Google

Form factor

Compact

Cooling type

Active

Built-in fan

Yes

Product colour

Black

Display type

LCD

LED indicators

Power, Status

Battery recharge time

3 h

UPS topology

Double-conversion (Online)


Returns & Warranty

Comsys Price

$4,819.64
On Sale

Save $659.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

APC EASY UPS SRV RM 10000VA 230V

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 10 kVA
  • Output power: 10000 W
  • Waveform: Sine
  • Input operation voltage (min): 220 V
  • Input operation voltage (max): 240 V
  • Input frequency: 40/70 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Surge energy rating: 600 J
  • Crest factor: 3:1
  • ECO mode: Yes
  • Emergency Power Off (EPO): Yes
  • Surge protection: Yes
  • Power protection features: Overload
  • Audible alarm(s): Yes
  • AC outlet types: Hard Wire 3-wire (1P + N + E)
  • USB port: Yes
  • Serial interface: Yes
  • Serial interface type: RS-232
  • RS-232 ports: 1
  • Emergency Power Off (EPO) connector: Yes
  • SmartSlot: Yes
  • Battery recharge time: 3 h
  • Form factor: Compact
  • Cooling type: Active
  • Built-in fan: Yes
  • Product colour: Black
  • Display type: LCD
  • LED indicators: Power, Status

+ 15 more — see the Specifications tab.
