APC EasyPDU Switched Zero U 22 kW 230V (30)

EasyPDU Switched Zero U 22 kW 230V (30) C13 and (6) C19 IEC309

  • Brand: APC
  • Category: UPS Systems
  • SKU: 6610623
  • MPN: EPDU2232SX3620
APC EasyPDU Switched Zero U 22 kW 230V (30) — APC — Power & UPS > UPS Systems

APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19；IEC309 Save $431.01 off RRP

Available to Order
$2,868.09

Inclusive of GST

1
Afterpay4 payments of $717.02
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

Model:
EPDU2232SX3620
Part #:
6610623
Brand:
APC

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $431.01 off RRP while stocks last.

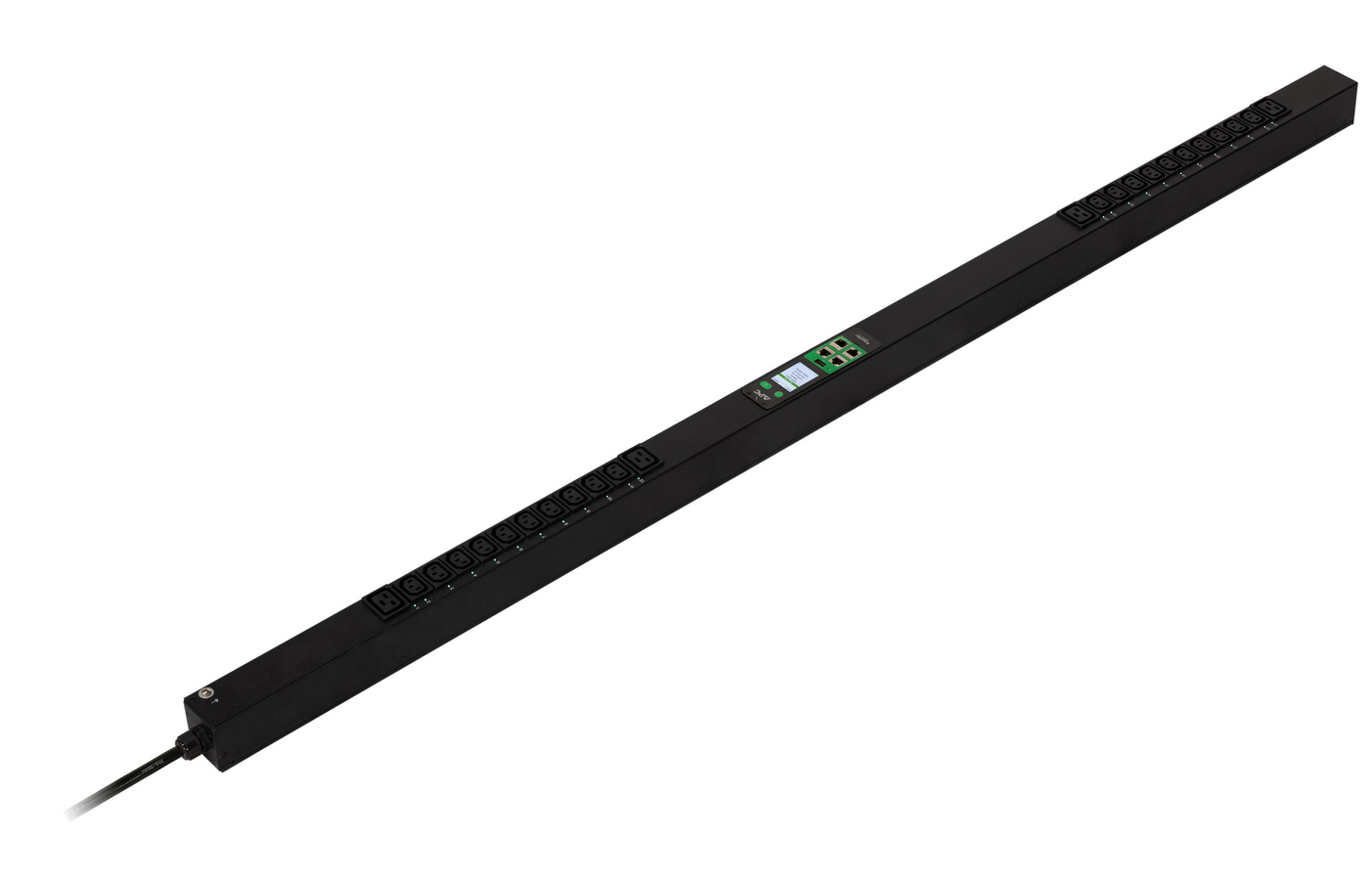

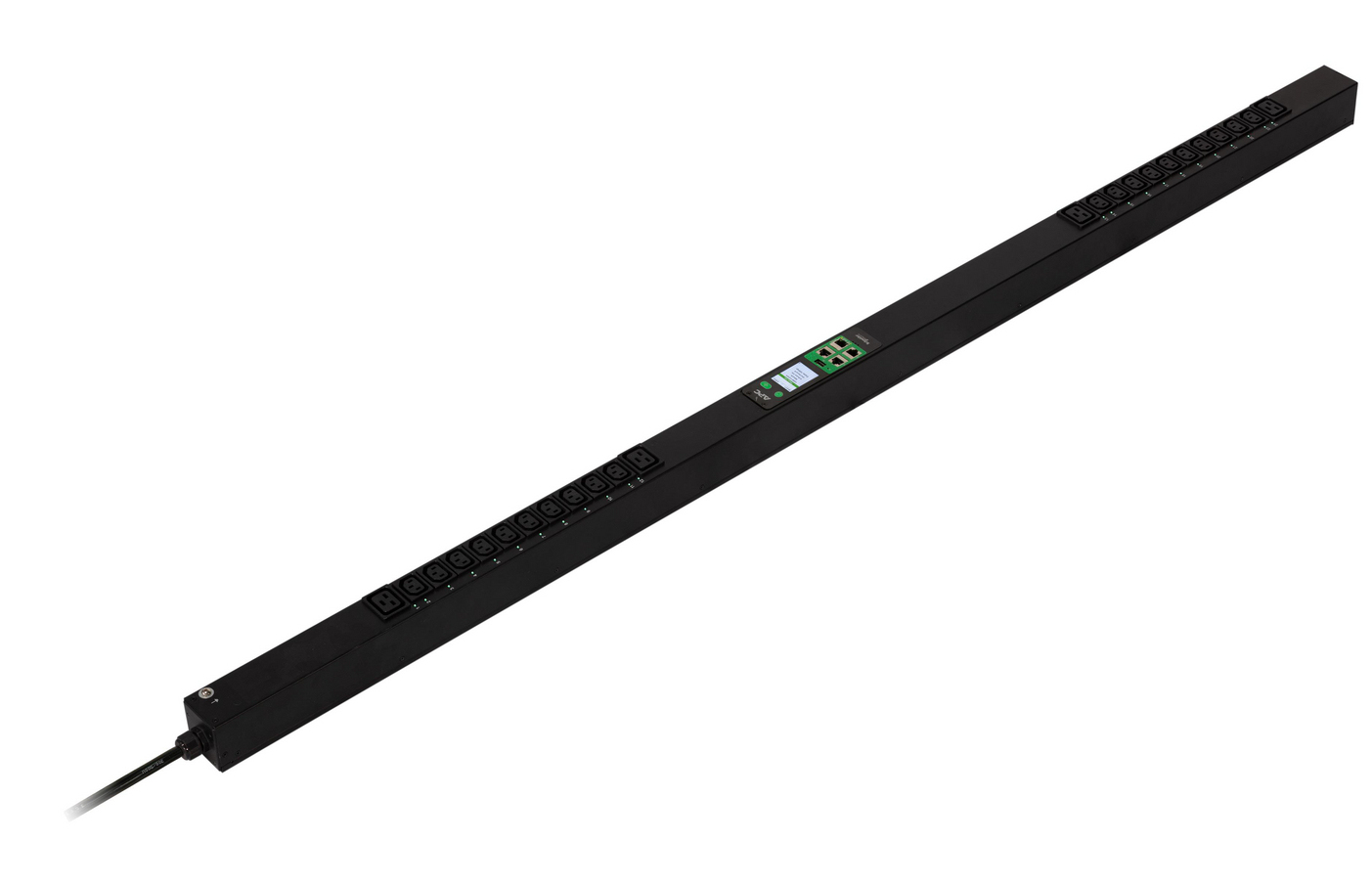

APC EasyPDU Switched Zero U 22 kW 230V (30)


It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input current. It includes 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally, it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.

Key features

  • PDU types: Switched
  • Type: Three-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black
  • AC outlets quantity: 30 AC outlet(s)
  • Power plug: C13 coupler
  • AC outlet types: C13 coupler, C19 coupler
  • Nominal input voltage: 400 V
  • AC input frequency: 50/60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 230 V
  • Output voltage: 230 V
  • Load capacity: 22080 VA
  • Number of phases: 3
  • Compliance certificates: CE, UKCA
  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Width: 56 mm
  • Depth: 62 mm
  • Height: 1800 mm
  • Weight: 8.75 kg
  • Package weight: 10.6 kg
  • Package width: 170 mm
  • Package depth: 1960 mm
  • Package height: 1260 mm
  • Total carbon footprint (kg of CO2e): 2245
