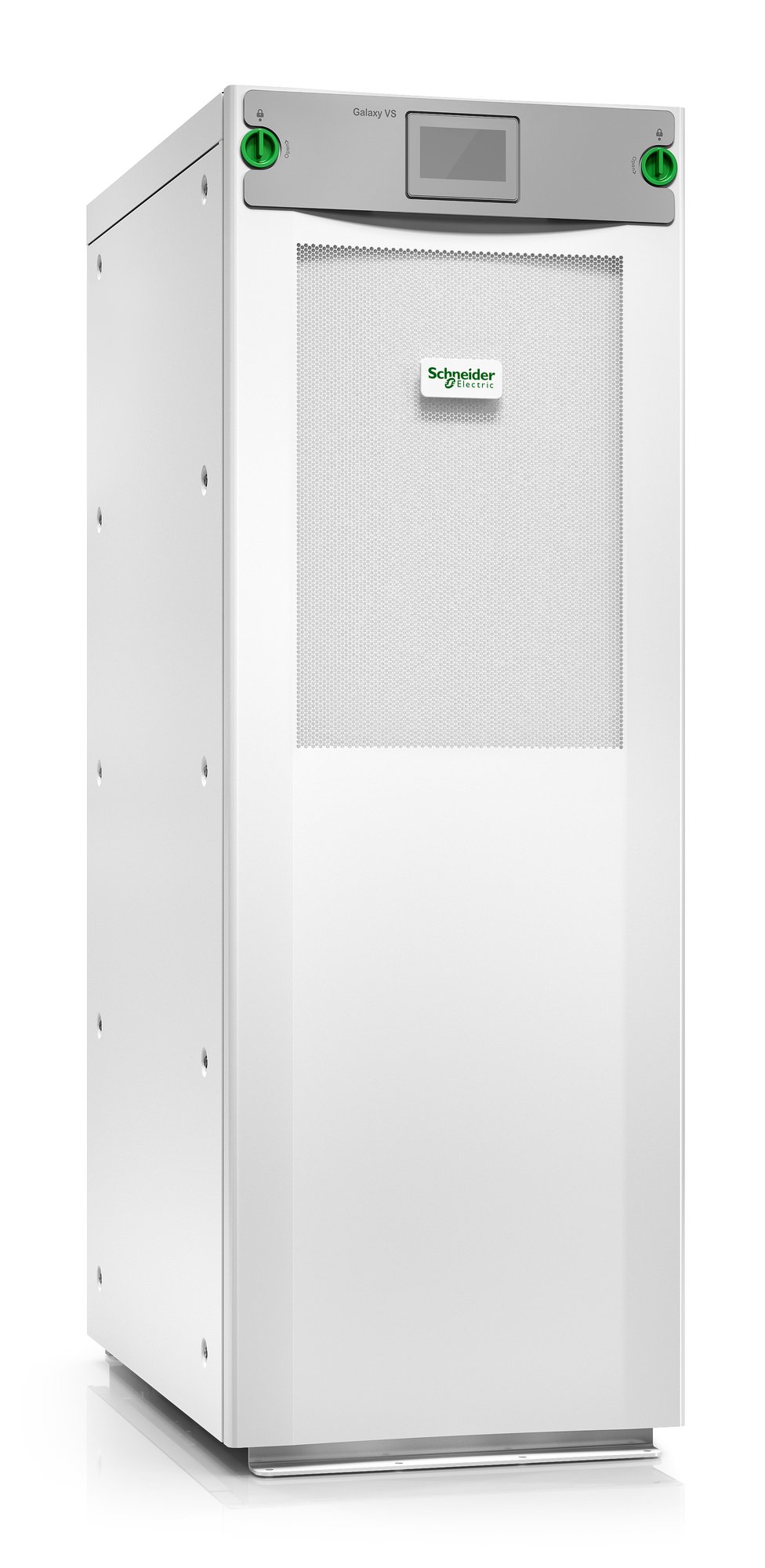

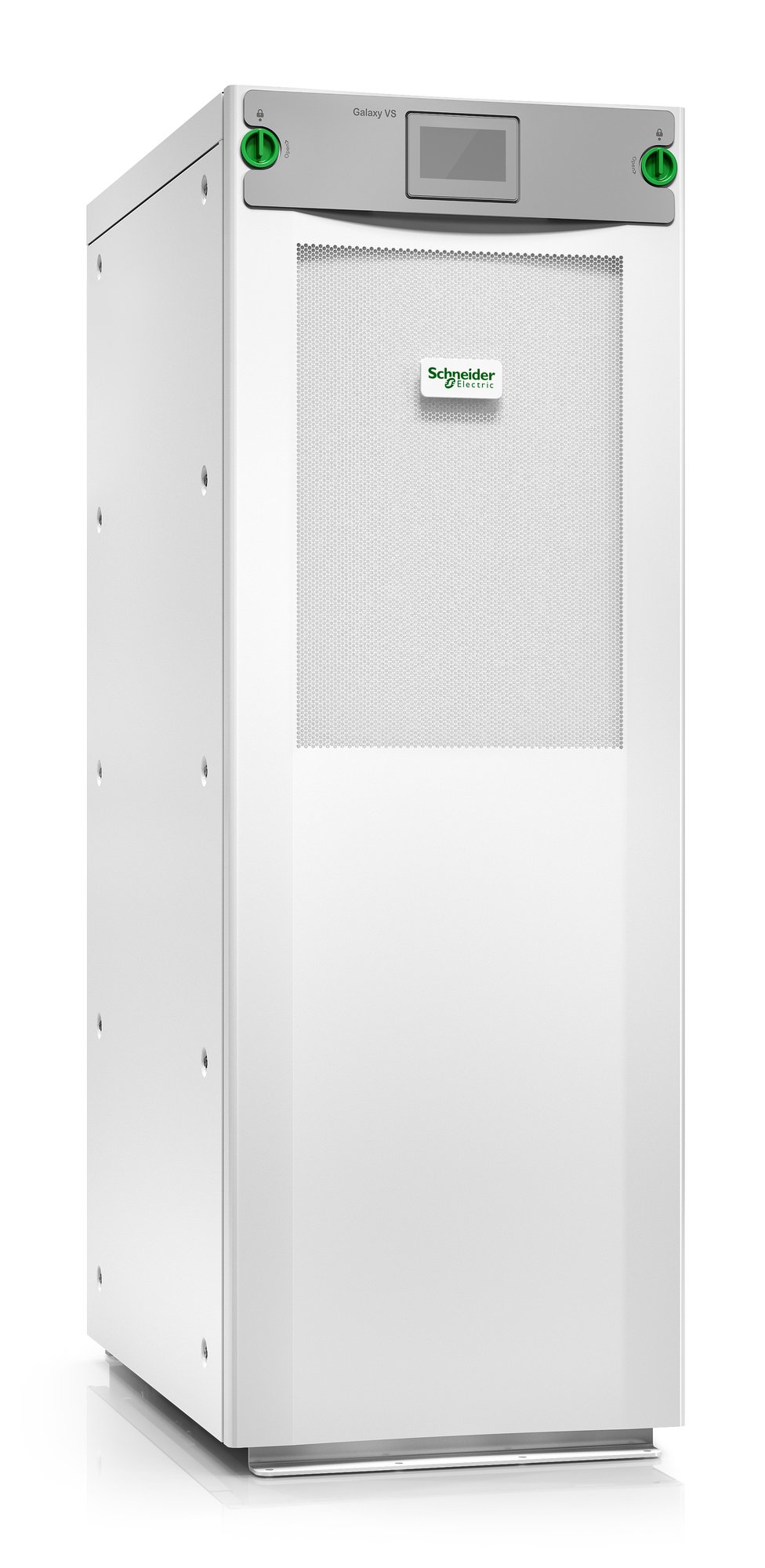

APC GALAXY VS UPS 10KW 400V, 1 INTERNAL 9AH SMART MODULAR BATTERY STRING, EXP. TO 4, - KIT
GALAXY VS UPS 10KW 400V, 1 INTERNAL 9AH SMART MODULAR BATTERY STRING, EXP. TO 4, - KIT
- Brand: APC
- Category: UPS Systems
- SKU: GVSUPS10KB4HS-KIT
- MPN: GVSUPS10KB4HS
APC GVSUPS10KB4HS uninterruptible power supply (UPS)… Save $3,039.01 off RRP
Available On OrderAsk us for ETA
$18,125.14
Inclusive of GST
1
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-049575
- MPN:
- GVSUPS10KB4HS
- Brand:
- APC
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $3,039.01 off RRP while stocks last.
APC GALAXY VS UPS 10KW 400V, 1 INTERNAL 9AH SMART MODULAR BATTERY STRING, EXP. TO 4, - KIT
GVSUPS10KB4HS Features
- Galaxy VS UPS 10kW 400V, 1 internal 9Ah smart modular battery string, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 10kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
- Galaxy VS UPS 10kW 400V, 1 internal 9Ah smart modular battery string, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 10kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 10 kVA
- Output power: 10000 W
- Waveform: Sine
- Input operation voltage (min): 340 V
- Input operation voltage (max): 460 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 380 V
- Output operation voltage (max): 415 V
- Output frequency: 50/60 Hz
- Maximum current: 18 A
- Number of input phases: 3
- Number of output phases: 3
- Input power factor: 0.99
- Crest factor: 2.5:1
- ECO mode: Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 55 dB
- Power protection features: Overload, Short circuit
- Audible alarm(s): Yes
- AC outlet types: Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
- SmartSlot: Yes
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 480 V
- Form factor: Tower
- Product colour: White
- Display type: LCD
- Operating temperature (T-T): 0 - 40 °C
