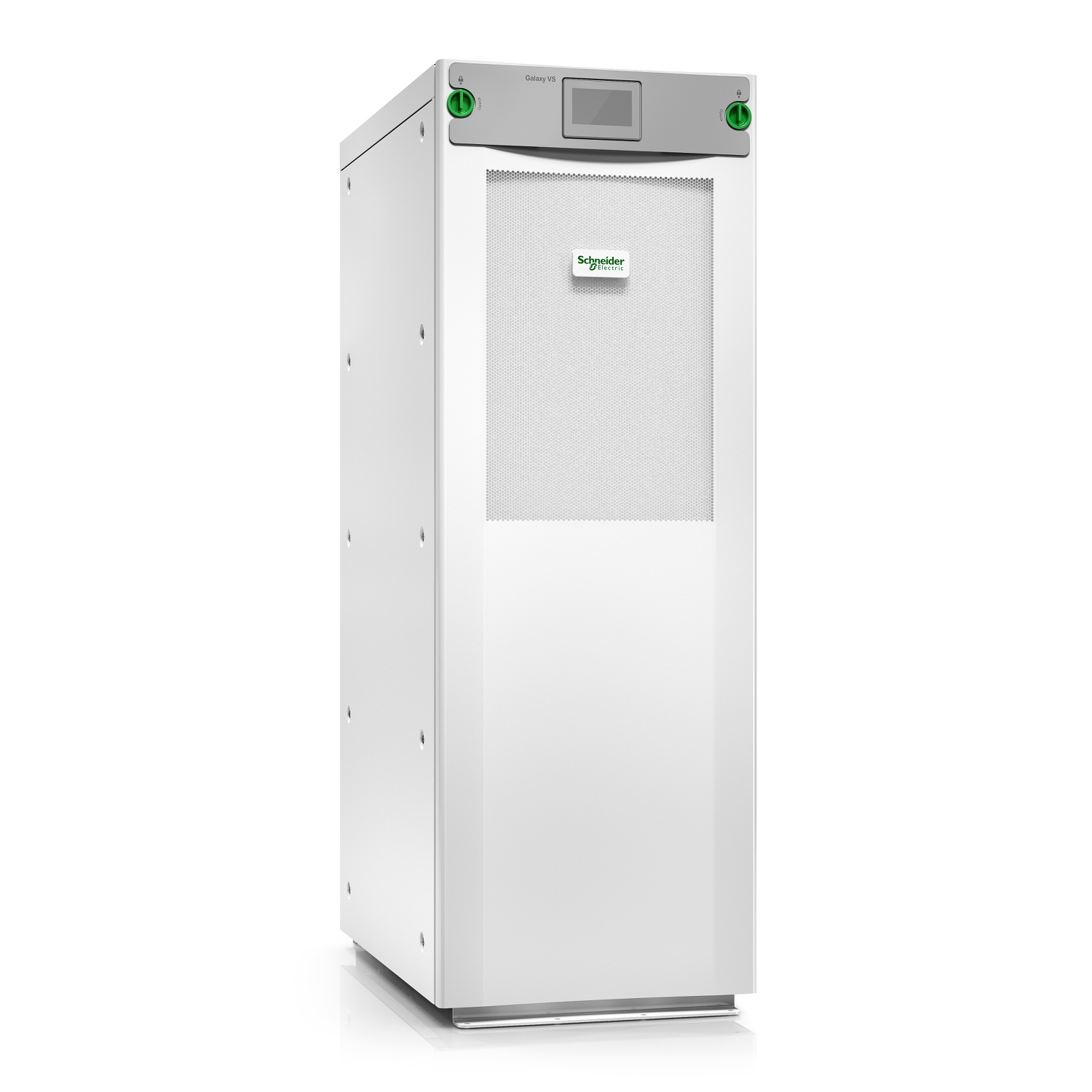

APC GALAXY VS UPS 30KW 400V, 2INTERNAL 9AH SMART MODULAR BATTERYSTRINGS, EXP. TO 4,START - KIT
GALAXY VS UPS 30KW 400V, 2INTERNAL 9AH SMART MODULAR BATTERYSTRINGS, EXP. TO 4,START - KIT
- Brand: APC
- Category: UPS Systems
- SKU: GVSUPS30KB4HS-KIT
- MPN: GVSUPS30KB4HS
APC GVSUPS30KB4HS uninterruptible power supply (UPS)…
Available On OrderAsk us for ETA
Contact us for pricing
Sales will confirm current pricing and availability
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-049581
- MPN:
- GVSUPS30KB4HS
- Brand:
- APC
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
APC GALAXY VS UPS 30KW 400V, 2INTERNAL 9AH SMART MODULAR BATTERYSTRINGS, EXP. TO 4,START - KIT
GVSUPS30KB4HS Features
- Galaxy VS UPS 30kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 30kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
- Galaxy VS UPS 30kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 30kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 30 kVA
- Output power: 30000 W
- Waveform: Sine
- Input operation voltage (min): 340 V
- Input operation voltage (max): 460 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 380 V
- Output operation voltage (max): 415 V
- Output frequency: 50/60 Hz
- Maximum current: 54 A
- Number of input phases: 3
- Number of output phases: 3
- Input power factor: 0.99
- Crest factor: 2.5:1
- ECO mode: Yes
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 61 dB
- Power protection features: Overload, Short circuit
- Audible alarm(s): Yes
- AC outlet types: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
- SmartSlot: Yes
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 480 V
- Form factor: Tower
- Product colour: White
- Display type: LCD
- International Protection (IP) code: IP20
- Operating temperature (T-T): 0 - 40 °C
