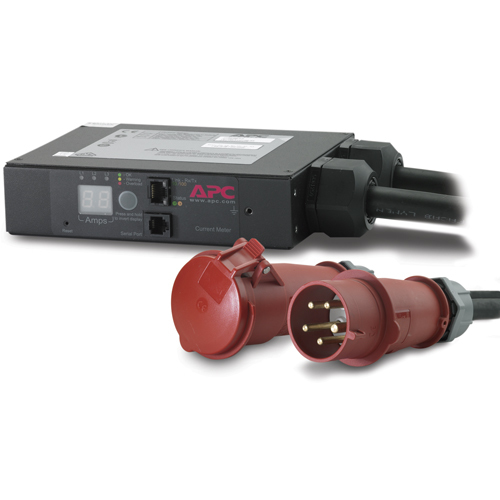

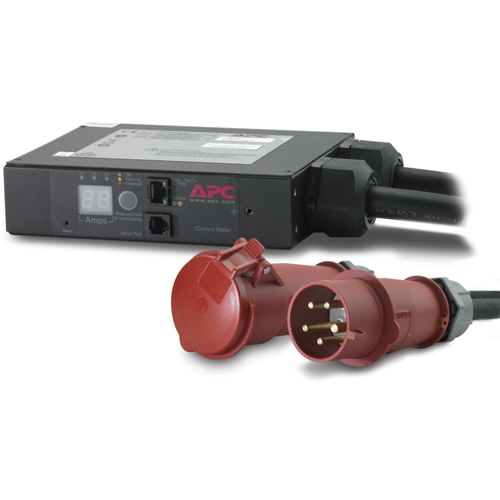

APC IN-LINE CURRENT METER

IN-LINE CURRENT METER32A 230V IEC309 3-PH

  • Brand: APC
  • Category: Racks & Cabinets
  • SKU: 3522010
  • MPN: AP7175B

APC In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G

APC In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G, Metered, Three-phase, Black, LED, 1 AC outlet(s), IEC 309 32A 3P+N+E

APC IN-LINE CURRENT METER

Click or hover over image to enlarge

Brand:APC
MPN:3522010

Part #: 3522010

Search this part on Google

Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Nominal output voltage

230 V

Load capacity

22080 VA

PDU types

Metered

Type

Three-phase

Product colour

Black

Returns & Warranty

Comsys Price

$1,328.24
On Sale

Save $170.01 off RRP

Only 3 left in stock

Order soon to avoid backorder

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $332.06
100% NZ Owned & OperatedCall 0800 664 554

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC IN-LINE CURRENT METER

Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.

Key features

  • PDU types: Metered
  • Type: Three-phase
  • Product colour: Black
  • Display: LED
  • AC outlets quantity: 1 AC outlet(s)
  • Input connection type: IEC 309 32A 3P+N+E
  • Output connections: IEC 309 32A 3P+N+E
  • Cable length: 0.91 m
  • Monitoring: Current
  • Nominal input voltage: 400 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 230 V
  • Load capacity: 22080 VA
  • Compliance certificates: RoHS
  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m
  • Width: 178 mm
  • Depth: 140 mm
  • Height: 44 mm
  • Weight: 2.89 kg
  • Cables included: RS-232
  • Manual: Yes
  • Package weight: 3.52 kg
  • Package width: 330 mm
  • Package depth: 185 mm

+ 1 more — see the Specifications tab.
