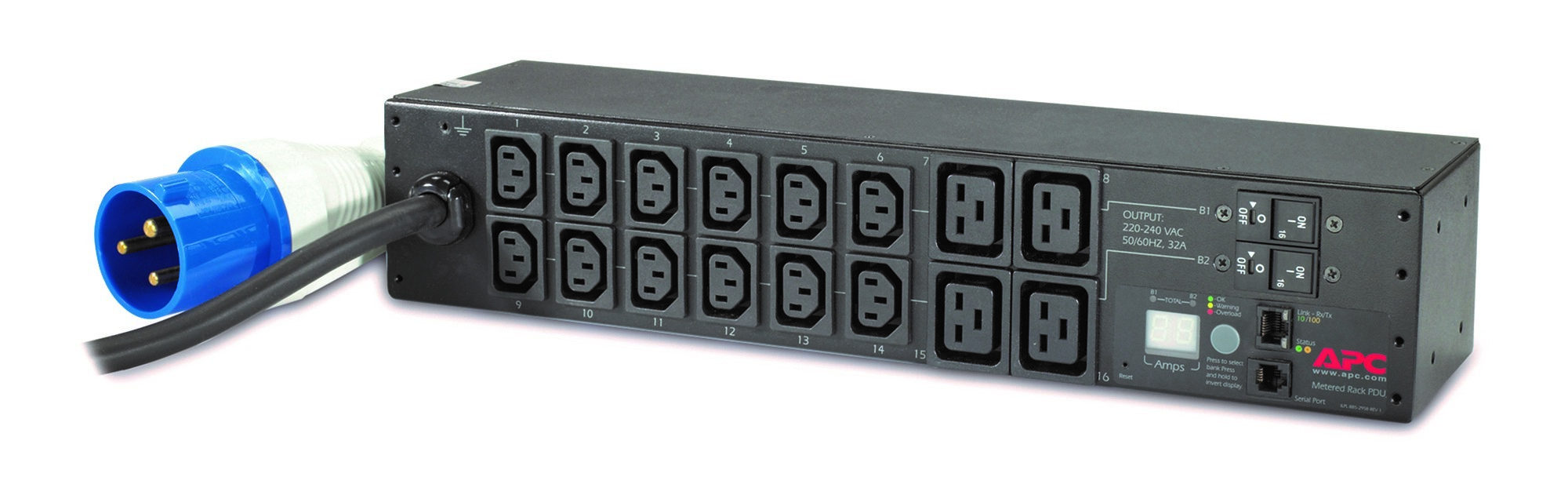

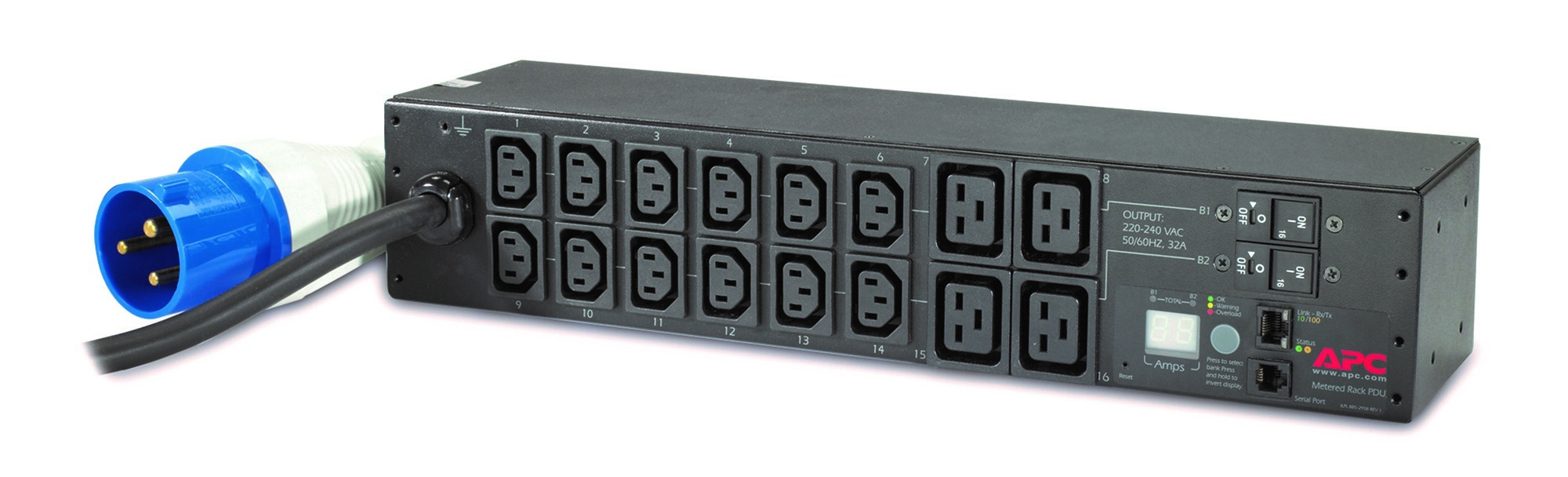

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Name: APC METERED 2U RACK PDU, 230V, 32A, C13(12), C19(4), IEC-309, 2YR
Brand: APC
SKU: AP7822B
Price: 2097.59 NZD
Availability: BackOrder

APC AP7822B, Metered, 2U, Single-phase, Horizontal/Vertical, Black, 16 AC outlet(s)

Click or hover over image to enlarge

Brand:APC

MPN:AP7822B

Part #: AP7822B

Search this part on Google

Nominal input voltage

208-230 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Load capacity

7680 VA

Maximum input current per phase

32 A

Maximum total current draw per phase

32 A

Power protection features

Overload

Maximum power

7680 W

Returns & Warranty

Comsys Price

$2,097.59

On Sale

Save $151.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Four payments of $524.40 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC METERED 2U RACK PDU, 230V, 32A, C13(12), C19(4), IEC-309, 2YR

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Key features

PDU types: Metered
Type: Single-phase
Rack capacity: 2U
Mounting: Horizontal/Vertical
Product colour: Black
On/off switch: Yes
AC outlets quantity: 16 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Input connection type: IEC 309 32A 2P+E
Output connections: 12 x C13 4 x C19
LED indicators: Yes
Cable length: 3.66 m
Monitoring: Current, Power, Voltage
Nominal input voltage: 208-230 V
AC input frequency: 50 - 60 Hz
Maximum current: 32 A
Load capacity: 7680 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Power protection features: Overload
Maximum power: 7680 W
Compliance certificates: RoHS
Certification: C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Width: 444 mm
Depth: 112 mm

+ 7 more — see the Specifications tab.
