APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW…

Name: APC METERED VERTICAL PDU, 400V, 32A, 22KW, C13(30), C19(12), IEC-309, 2YR
Brand: APC
SKU: AP8886
Price: 4585.04 NZD
Availability: BackOrder

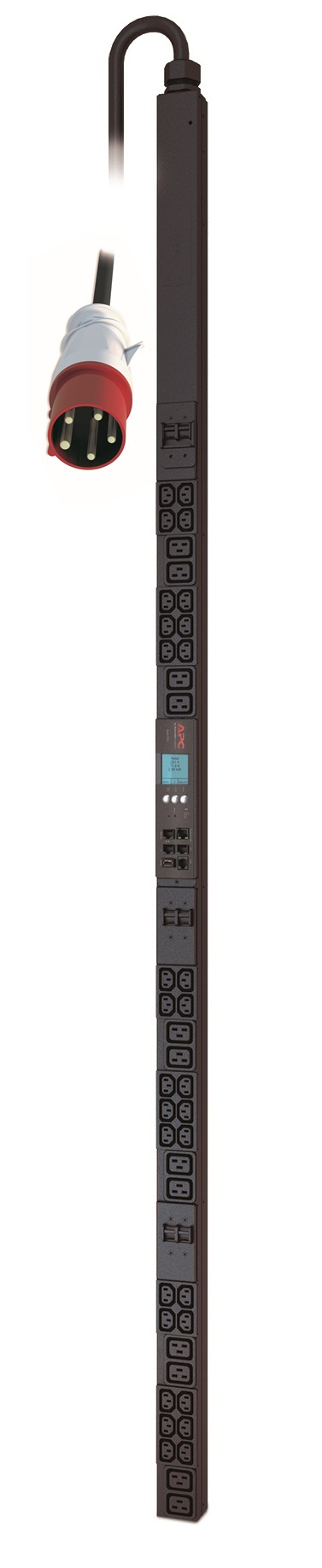

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler

Click or hover over image to enlarge

Brand:APC

MPN:AP8886

Part #: AP8886

Search this part on Google

Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Nominal output voltage

230 V

Load capacity

22080 VA

Maximum input current per phase

32 A

Power protection features

Overload

Maximum power

22000 W

Returns & Warranty

Comsys Price

$4,585.04

On Sale

Save $288.01 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC METERED VERTICAL PDU, 400V, 32A, 22KW, C13(30), C19(12), IEC-309, 2YR

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Key features

PDU types: Metered
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
AC outlets quantity: 42 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Output connections: 30 x IEC 320 C13 12 x IEC 320 C19
LED indicators: Yes
Cable length: 1.83 m
Monitoring: Current, Power, Voltage
Nominal input voltage: 400 V
AC input frequency: 50 - 60 Hz
Maximum current: 32 A
Nominal output voltage: 230 V
Load capacity: 22080 VA
Maximum input current per phase: 32 A
Power protection features: Overload
Maximum power: 22000 W
Compliance certificates: RoHS
Certification: EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m
Width: 56 mm
Depth: 51 mm
Height: 1829 mm

+ 6 more — see the Specifications tab.
