APC Rack ATS G3 230V 16A (2) IEC 309 in (1)

Rack ATS G3 230V 16A (2) IEC 309 in (1) IEC 309 out

  • Brand: APC
  • Category: Racks & Cabinets
  • SKU: 5631919
  • MPN: AP4422A

APC Netshelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2…

APC Netshelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 IEC309 IN, 1 IEC309 OUT, 50/60Hz, Rackmount, 1U, 1 AC outlet(s), Black

APC Rack ATS G3 230V 16A (2) IEC 309 in (1)

Click or hover over image to enlarge

Brand:APC
MPN:5631919

Part #: 5631919

Search this part on Google

Input operation voltage (min)

230 V

Input operation voltage (max)

230 V

AC input frequency

50/60 Hz

Input current

16 A

Output operation voltage (min)

230 V

Form factor

Rackmount

Rack capacity

1U

Product colour

Black

Returns & Warranty

Comsys Price

$2,347.14
On Sale

Save $309.01 off RRP

Only 10 left in stock

Order soon to avoid backorder

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $586.79
100% NZ Owned & OperatedCall 0800 664 554

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC Rack ATS G3 230V 16A (2) IEC 309 in (1)

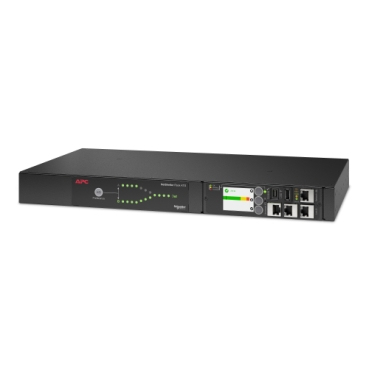

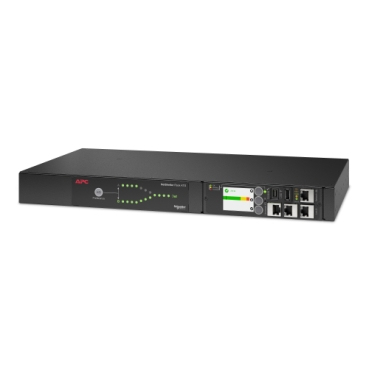

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4422A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4422A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3840VA load capacity. It comes with 2 IEC 309 inlet and 1 IEC 309 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Key features

  • Input operation voltage (min): 230 V
  • Input operation voltage (max): 230 V
  • AC input frequency: 50/60 Hz
  • Input current: 16 A
  • Output operation voltage (min): 230 V
  • Form factor: Rackmount
  • Rack capacity: 1U
  • Product colour: Black
  • AC outlets quantity: 1 AC outlet(s)
  • AC outlet types: IEC 60309
  • Operating temperature (T-T): -5 - 45 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Total carbon footprint (kg of CO2e): 484.38
  • Width: 432 mm
  • Depth: 236 mm
  • Height: 44 mm
  • Weight: 4.21 kg

Inc GST

$2,347.14
