APC RACK PDU BASIC 1U 16A

208 AND 230V (10)C13 AND (2)C19

  • Brand: APC
  • Category: UPS Systems
  • SKU: 1000238
  • MPN: AP9559
APC RACK PDU BASIC 1U 16A — APC — Power & UPS > UPS Systems

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC… Save $127.01 off RRP

Available to Order
$807.29

Inclusive of GST

1
Afterpay4 payments of $201.82
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

Model:
AP9559
Part #:
1000238
Brand:
APC

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $127.01 off RRP while stocks last.

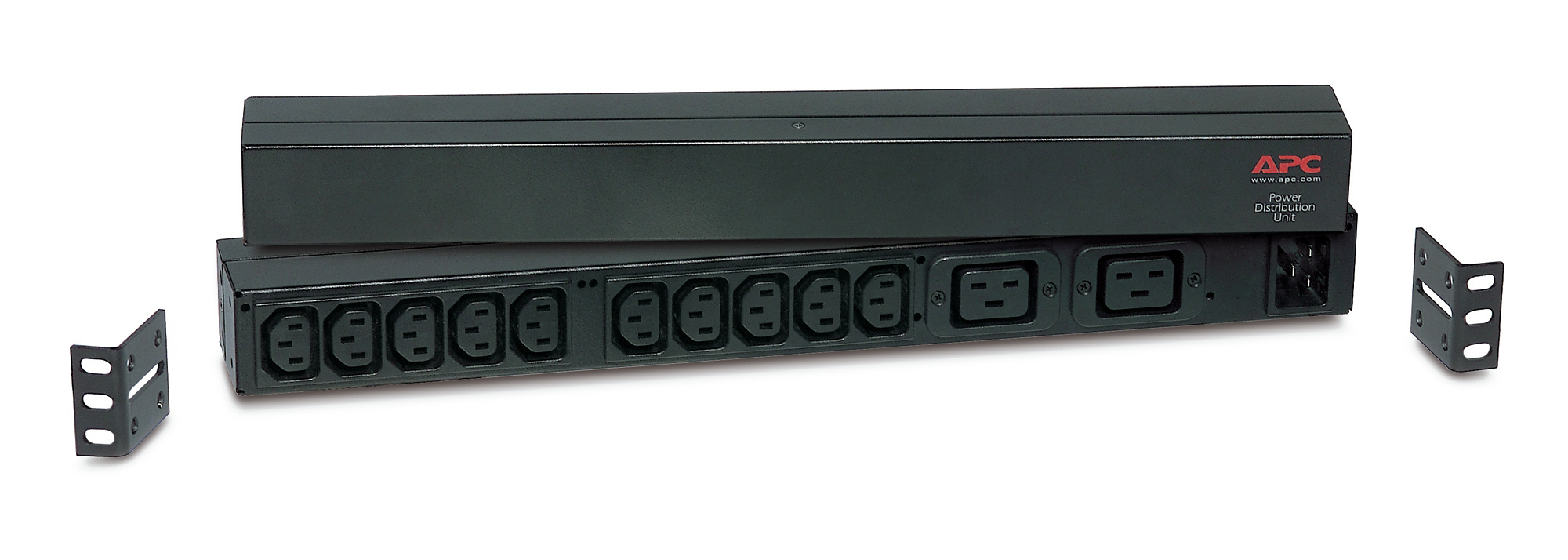

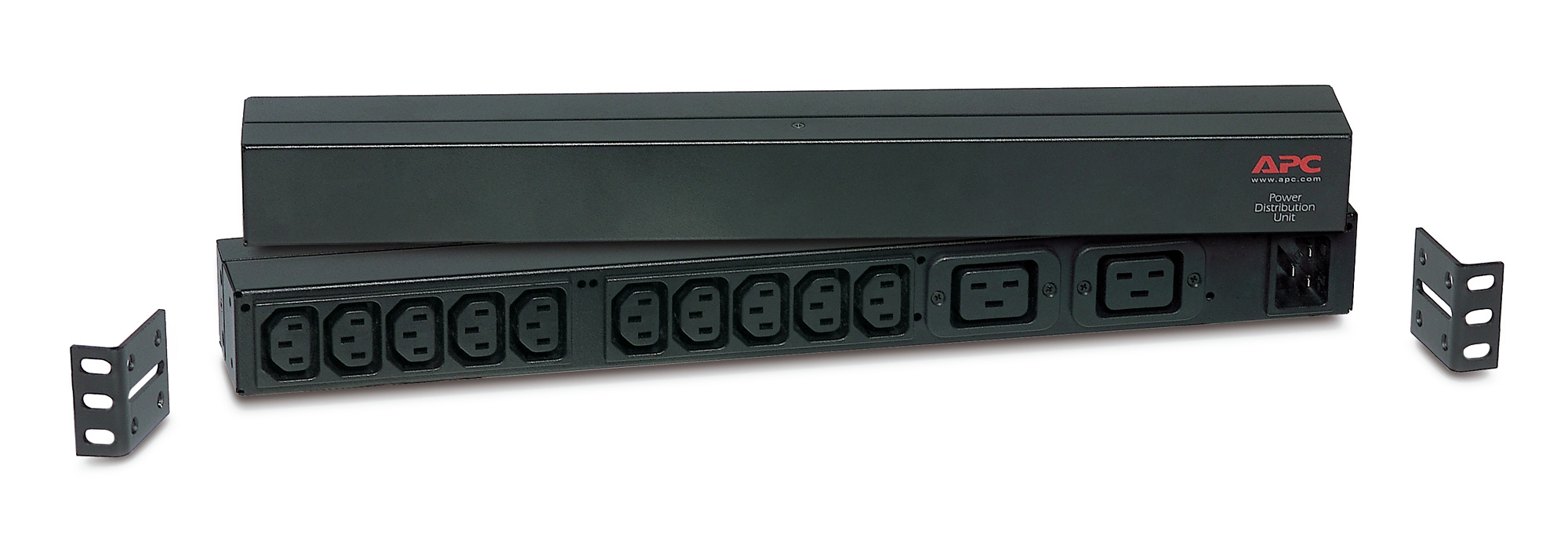

APC RACK PDU BASIC 1U 16A

Description:

APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19

Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual


Output Voltage(s) (main only) - 120, 208, 230 V

Maximum Total Current Draw per Phase - 16 A

Output Connections - (10)IEC 320 C13; (2)IEC 320 C19

Always on Outlets - 12
Overload Protection

Input:

Nominal input voltage - 120, 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C20

Cord Length 8.2 feet ( 2.5 meters )

Acceptable Input Voltage - 90-250 VAC

Maximum Line Current per phase - 16.0 A

Maximum Input Current per phase - 16.0 A

Load Capacity - 3680

Key features

  • PDU types: Basic
  • Type: Single-phase
  • Rack capacity: 0U/1U
  • Mounting: Horizontal/Vertical
  • Product colour: Black
  • AC outlets quantity: 12 AC outlet(s)
  • Power plug: C20 coupler
  • AC outlet types: C13 coupler, C19 coupler
  • I/O ports: Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
  • Cable length: 2.5 m
  • Load capacity: 3680 VA
  • Maximum input current per phase: 16 A
  • Maximum power: 3680 W
  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Width: 447 mm
  • Depth: 57.2 mm
  • Height: 44.5 mm
  • Weight: 980 g
