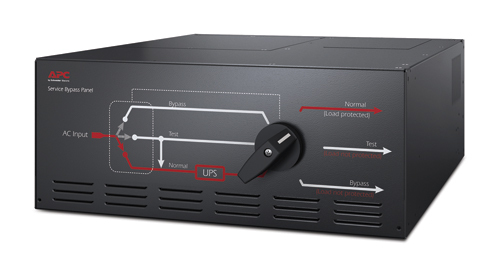

APC (SB20KP) SERVICE BYPASS PANEL 200/208/230/240V 125A HW INPUT/OUTPUT
Power & UPS > PDUs
- Brand: APC
- Category: Racks & Cabinets
- SKU: SBP20KP
- MPN: SBP20KP
APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output
APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output, 20 kVA, 200 V, 240 V, 50/60 Hz, 125 A, Hard Wire 5-wire (3P + N + E)
Click or hover over image to enlarge
Form factor
Tower
Product colour
Black
Output power capacity
20 kVA
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Input frequency
50/60 Hz
Maximum current
125 A
Compliance certificates
RoHS
Comsys Price
Save $350.01 off RRP
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

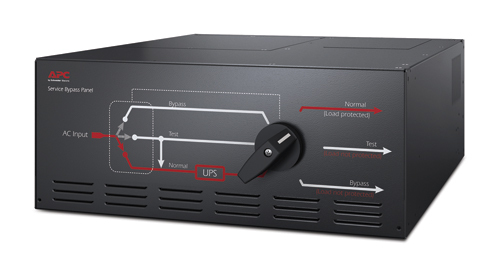

APC (SB20KP) SERVICE BYPASS PANEL 200/208/230/240V 125A HW INPUT/OUTPUT
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
Key features
- Output power capacity: 20 kVA
- Input operation voltage (min): 200 V
- Input operation voltage (max): 240 V
- Input frequency: 50/60 Hz
- Maximum current: 125 A
- AC outlet types: Hard Wire 5-wire (3P + N + E)
- Form factor: Tower
- Product colour: Black
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 4500 m
- Non-operating altitude: 0 - 15000 m
- Compliance certificates: RoHS
- Certification: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Width: 432 mm
- Depth: 554 mm
- Height: 178 mm
- Weight: 19.3 kg
- Package weight: 31.4 kg
- Harmonized System (HS) code: 85078000
- Operating temperature (T-T): -4 - 122 °F
- Overload protection: Yes
- Package dimensions (WxDxH): 610 x 845 x 305 mm
Inc GST
$5,692.49
