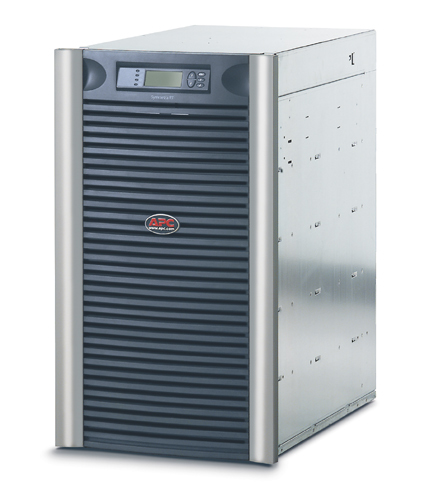

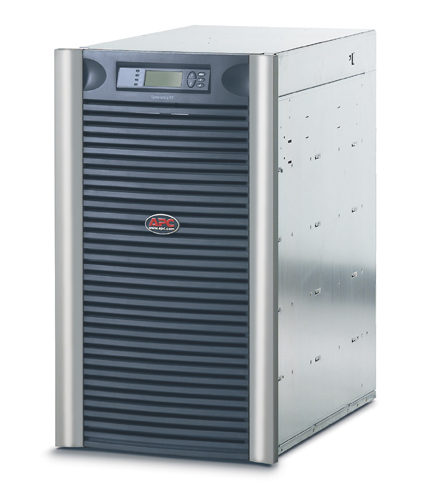

APC (SYA12K16RMI) SYMMETRA LX 12KVA > 16KVA NW1 RACK-MOUNT, 220/230/240V OR 380/400/415V
Power & UPS > UPS Systems
- Brand: APC
- Category: UPS Systems
- SKU: SYA12K16RMI
- MPN: SYA12K16RMI
APC SYA12K16RMI uninterruptible power supply (UPS) 12 kVA 8400 W
APC SYA12K16RMI, 12 kVA, 8400 W, IEC 60320, 7.5 min, 20.2 min, SYBT5
Click or hover over image to enlarge
Typical backup time at full load
7.5 min
Typical backup time at half load
20.2 min
Replacement battery cartridge
SYBT5
Output power capacity
12 kVA
Output power
8400 W
Emergency Power Off (EPO)
Yes
Audible alarm(s)
Yes
Products per pallet
1.00 pc(s)
Price on Application
Contact us for pricing
Sales will confirm seat count, term, and volume pricing before order.
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC (SYA12K16RMI) SYMMETRA LX 12KVA > 16KVA NW1 RACK-MOUNT, 220/230/240V OR 380/400/415V
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Key features
- Output power capacity: 12 kVA
- Output power: 8400 W
- Emergency Power Off (EPO): Yes
- Audible alarm(s): Yes
- AC outlet types: IEC 60320
- Typical backup time at full load: 7.5 min
- Typical backup time at half load: 20.2 min
- Replacement battery cartridge: SYBT5
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Weight: 242.7 kg
- Package weight: 290 kg
- Products per pallet: 1.00 pc(s)
- Harmonized System (HS) code: 85078000
- I/O ports: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
- Battery type: Lead-Acid
- Interface: DB-9 RS-232,Smart-Slot
- Output connections: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
- Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH): 472 x 688 x 838 mm
- Nominal output voltage: 230 V
- Output voltage note: 220: 230, 240
- Nominal input voltage: 230-400 V
- Package dimensions (WxDxH): 599 x 997 x 1054 mm
