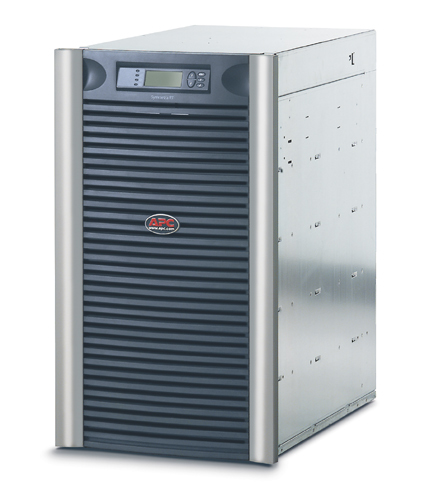

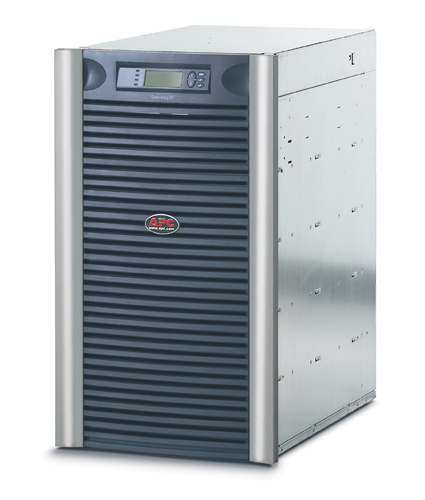

APC Symmetra LX 12kVA Scalable to 16kVA
APC Symmetra LX 12kVA Scalable to 16kVA N+1 Rack-mount. 220/230/240V or 380/400/415V
- Brand: APC
- Category: UPS Systems
- SKU: 1000629
- MPN: SYA12K16RMI
APC SYA12K16RMI uninterruptible power supply (UPS) 12 kVA 8400 W
Available to Order
Contact us for pricing
Sales will confirm current pricing and availability
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Key Details:
- Model:
- SYA12K16RMI
- Part #:
- 1000629
- Brand:
- APC
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
APC Symmetra LX 12kVA Scalable to 16kVA
Industry’s most space-optimized modular UPS solutions
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Key features
- Output power capacity: 12 kVA
- Output power: 8400 W
- Emergency Power Off (EPO): Yes
- Audible alarm(s): Yes
- AC outlet types: IEC 60320
- Typical backup time at full load: 7.5 min
- Typical backup time at half load: 20.2 min
- Replacement battery cartridge: SYBT5
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Weight: 242.7 kg
- Package weight: 290 kg
- Products per pallet: 1.00 pc(s)
- Harmonized System (HS) code: 85078000
- I/O ports: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
- Battery type: Lead-Acid
- Interface: DB-9 RS-232,Smart-Slot
- Output connections: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
- Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH): 472 x 688 x 838 mm
- Nominal output voltage: 230 V
- Output voltage note: 220: 230, 240
- Nominal input voltage: 230-400 V
- Package dimensions (WxDxH): 599 x 997 x 1054 mm
