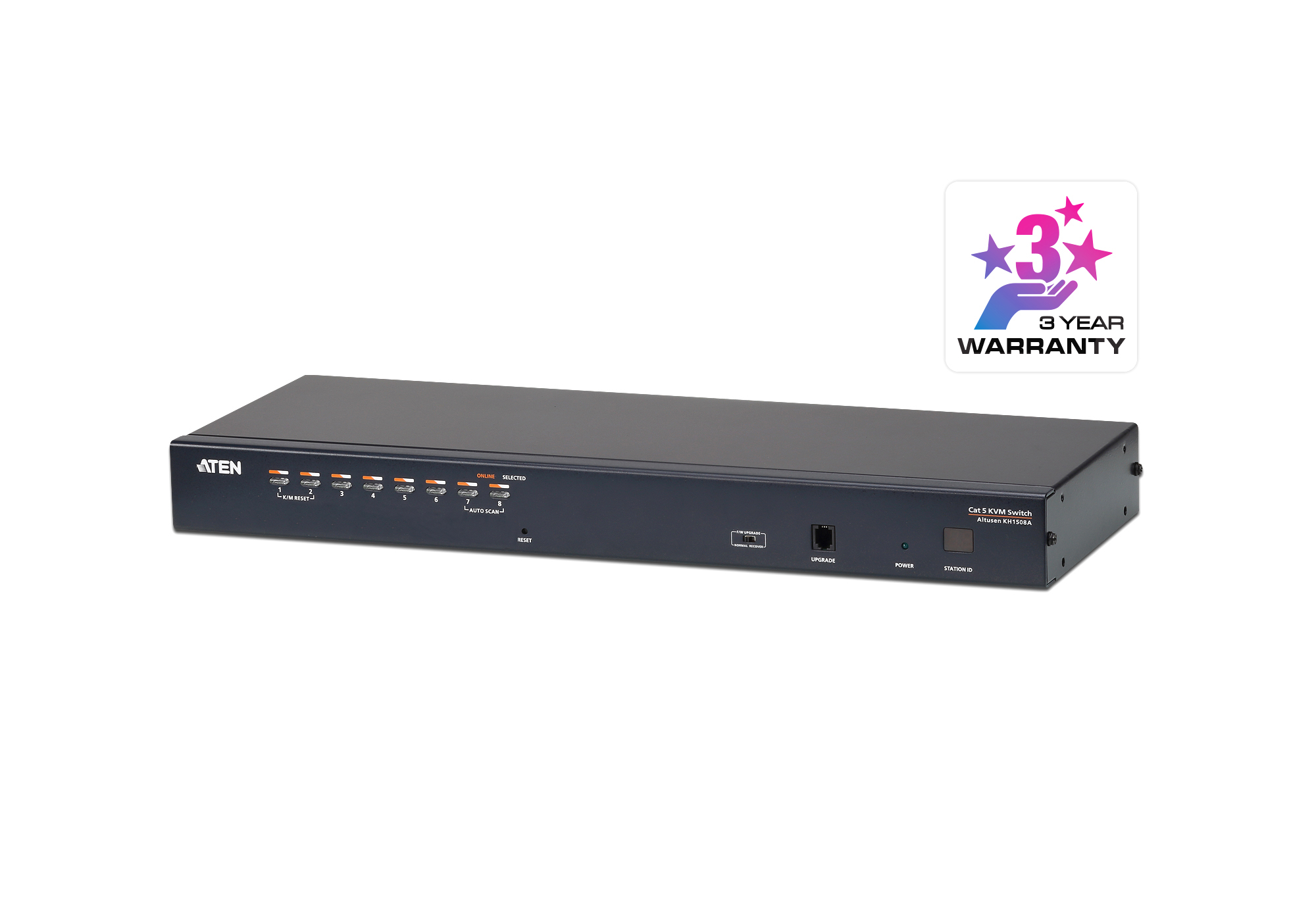

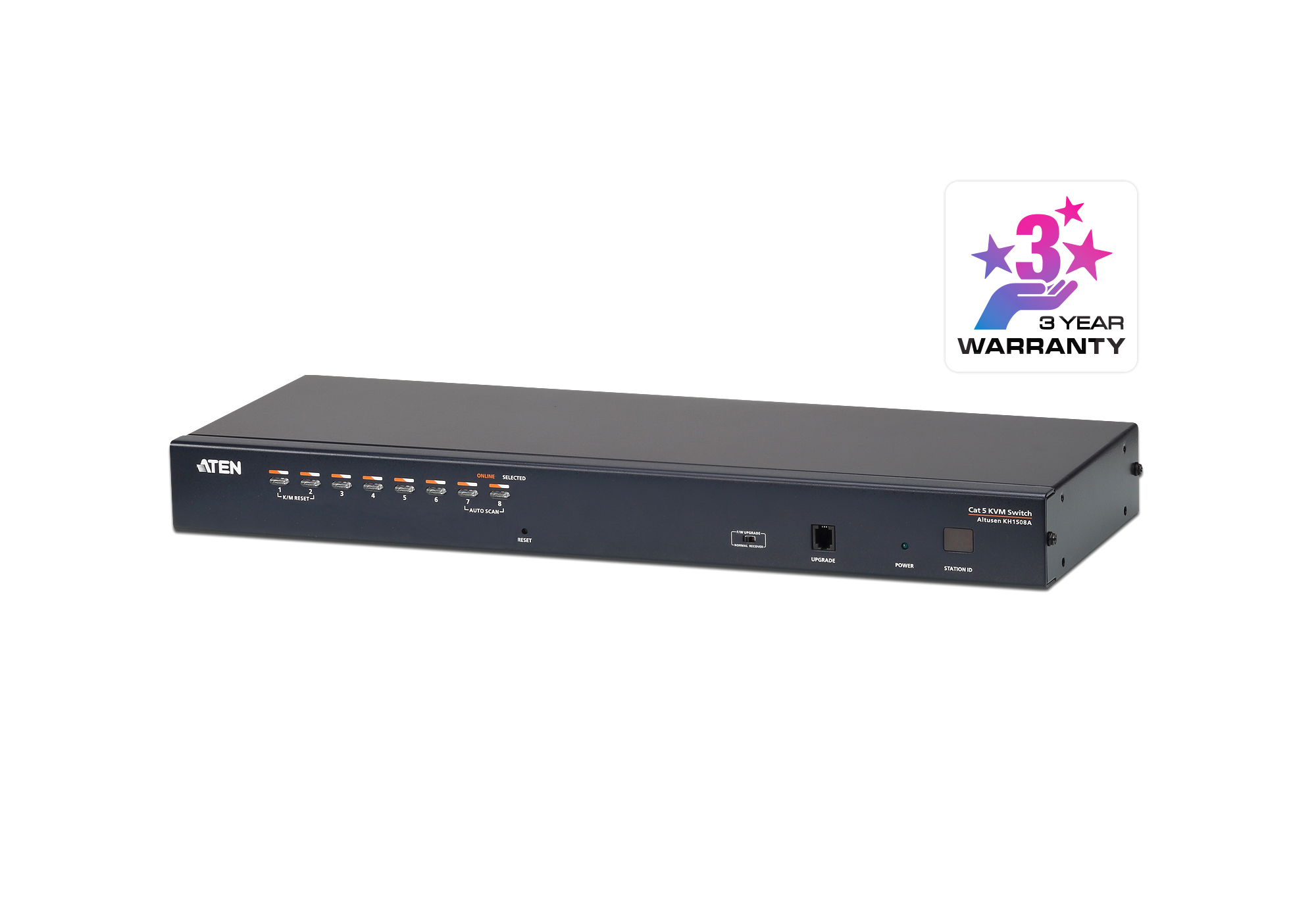

ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 8 PORT WITH DAISY-CHAIN PORT

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: KH1508A-AX-U
  • MPN: KH1508A-AX-U

ATEN 8-Port Cat 5e/6 KVM Switch

ATEN 8-Port Cat 5e/6 KVM Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 5.1 W, Black

ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 8 PORT WITH DAISY-CHAIN PORT

Click or hover over image to enlarge

Brand:ATEN
MPN:KH1508A-AX-U

Part #: KH1508A-AX-U

Search this part on Google

Power source

AC

Input voltage

100 - 240 V

AC input frequency

50-60 Hz

Power consumption (typical)

5.1 W

Product colour

Black

Housing material

Metal

LED indicators

Yes

Push button

Yes

Returns & Warranty

Comsys Price

$980.94
On Sale

Save $100.41 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $245.24 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 8 PORT WITH DAISY-CHAIN PORT

The KH1508A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM console.
1x KH1508A 8-port Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-0C05-24EG Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Key features

  • Number of computers controlled: 8
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Console ports: USB A, VGA (D-Sub)
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 8
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,255 s
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50-60 Hz
  • Power consumption (typical): 5.1 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm
  • Depth: 163.6 mm
  • Height: 44 mm
  • Weight: 3.05 kg
  • Package width: 131 mm

+ 12 more — see the Specifications tab.
