ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM OVER IP 16 PORT WITH DAISY-CHAIN PORT

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: KH1516AI-AX-U
  • MPN: KH1516AI-AX-U
ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM OVER IP 16 PORT WITH DAISY-CHAIN PORT — ATEN — NETWORKING

ATEN KH1516AI-AX-U KVM switch Black Save $471.42 off RRP

Available On OrderAsk us for ETA
$2,878.44

Inclusive of GST

1
Afterpay4 payments of $719.61
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-DD-030630
MPN:
KH1516AI-AX-U
Brand:
ATEN

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $471.42 off RRP while stocks last.

ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM OVER IP 16 PORT WITH DAISY-CHAIN PORT

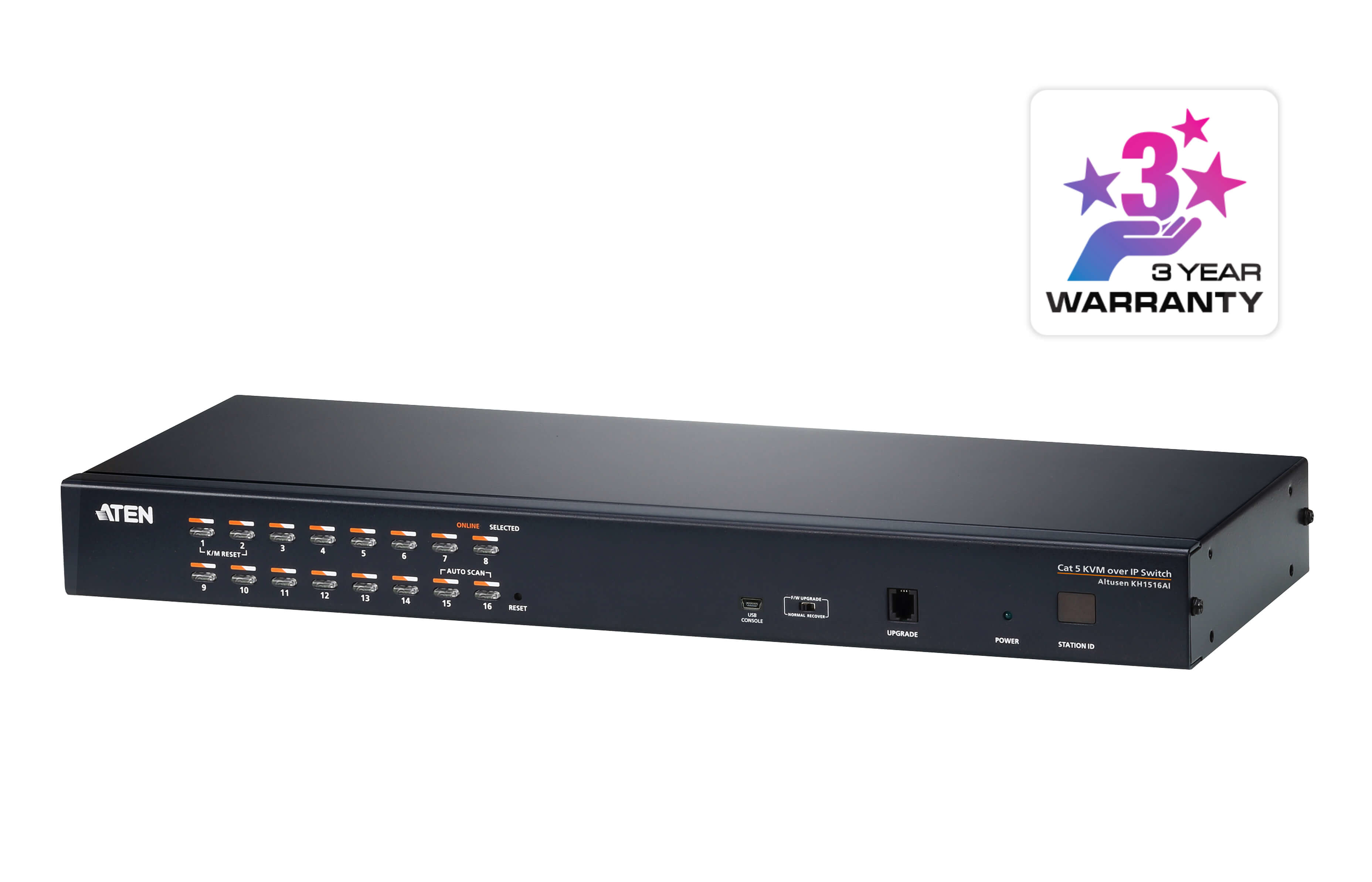

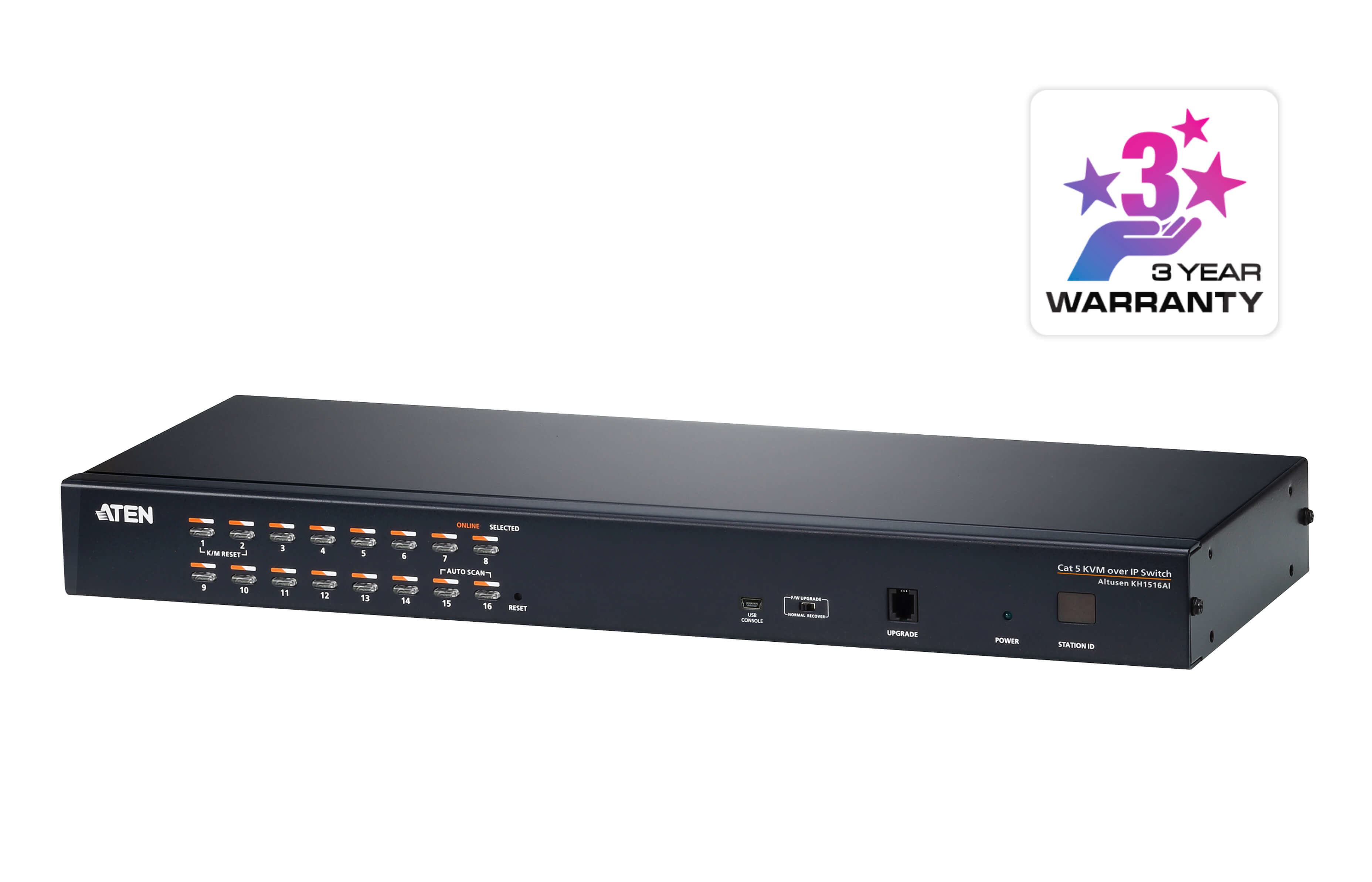

The KH1516Ai Cat 5 High-Density KVM over IP Switch offers 16 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.

The KH1516Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance- up to 50m without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

In addition to TCP/IP connectivity, the KH1516Ai provides console ports for a locally attached USB or PS/2 console and a Laptop USB console (LUC) – allowing access and control from the data center as well as over the Net.
1x KH1516Ai Cat 5 High-Density KVM over IP Switch
1x Firmware Upgrade Cable
1x LIN6-04U1-M18G Laptop USB Console Cable USB-A to Micro USB-B
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Key features

  • Number of computers controlled: 16
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Console ports: PS/2, USB A, VGA (D-Sub)
  • Console USB ports quantity: 2
  • USB connector type: USB Type-A
  • PS/2 ports quantity: 2
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 16
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,255 s
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1 A
  • Power consumption (typical): 8.9 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm
