ATEN 16 PORT PS/2-USB 2.0 KVMP SWITCH OVER IP
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1716I-AT-U
- MPN: CS1716I-AT-U
ATEN CS1716I-AT-U KVM switch Rack mounting Black Save $199.55 off RRP
Available On OrderAsk us for ETA
$2,420.74
Inclusive of GST
1
4 payments of $605.19Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-012727
- MPN:
- CS1716I-AT-U
- Brand:
- ATEN
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $199.55 off RRP while stocks last.

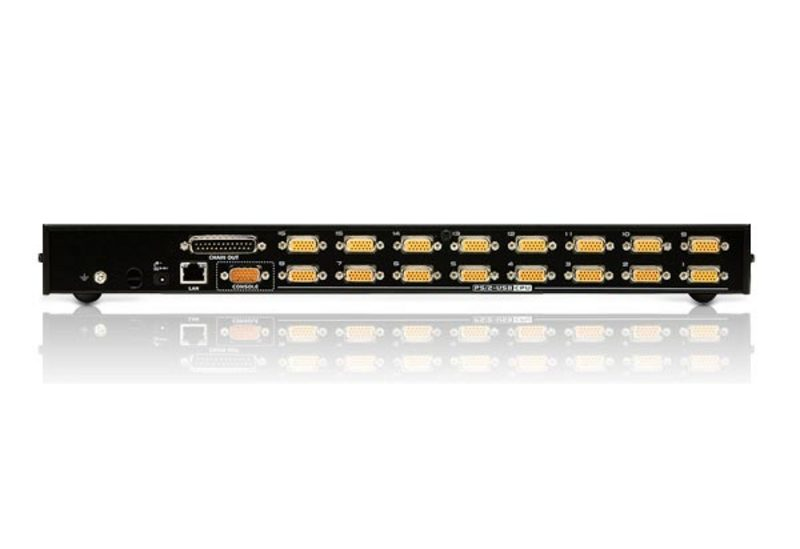

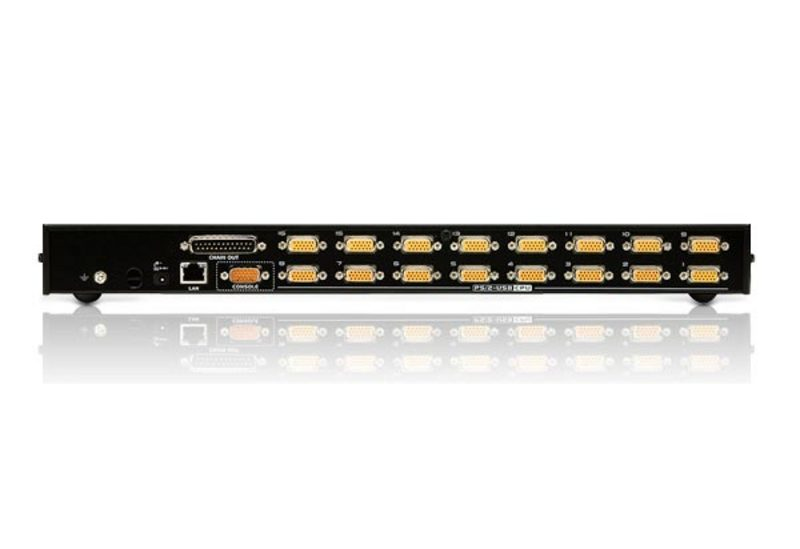

ATEN 16 PORT PS/2-USB 2.0 KVMP SWITCH OVER IP
The CS1716i is a 16-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1716i works platform independent and supports e.g. Windows, Linux, MAC, SUN
The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key features
- Number of computers controlled: 256
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- VGA (D-Sub) ports quantity: 16
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 1
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Security algorithms: 128-bit RC4, SSL/TLS
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,255 s
- DDC2B support: Yes
- HDCP: Yes
- Hot-Plug support: Yes
- Daisy chain: Yes
- Number of users: 32 user(s)
- Firmware upgradeable: Yes
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- On Screen Display (OSD): Yes
- Power source: DC
