ATEN 16 PORT USB 2.0 HDMI KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS17916-AT-U
- MPN: CS17916-AT-U
ATEN CS17916-AT-U KVM switch Black Save $141.12 off RRP
Available On OrderAsk us for ETA
$1,792.84
Inclusive of GST
1
4 payments of $448.21Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-012737
- MPN:
- CS17916-AT-U
- Brand:
- ATEN
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $141.12 off RRP while stocks last.
ATEN 16 PORT USB 2.0 HDMI KVMP SWITCH

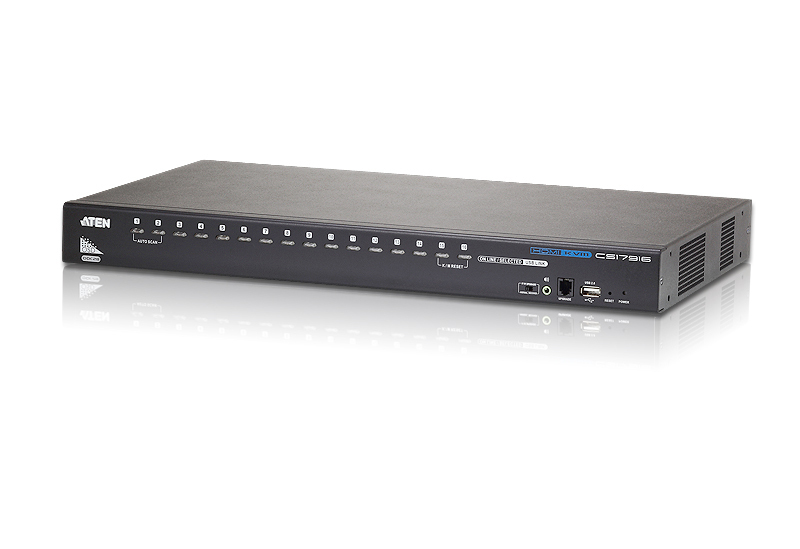

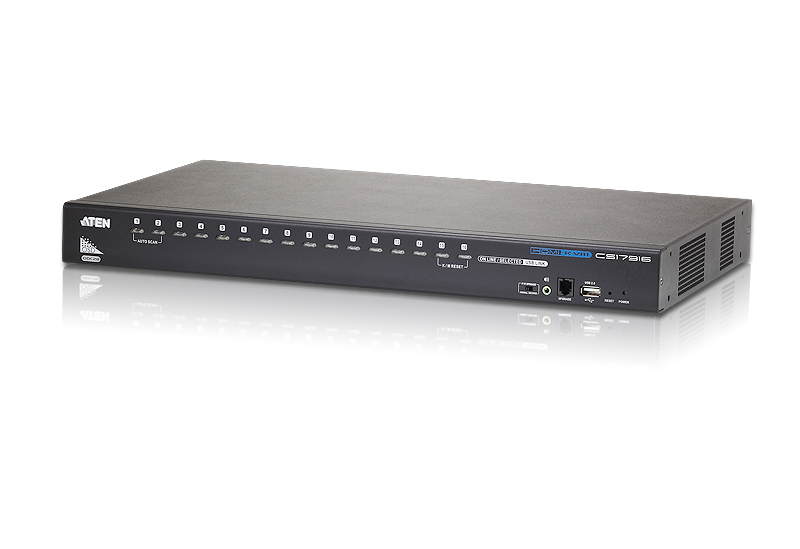

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
Key features
- Number of computers controlled: 16
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 16
- USB 2.0 Type-B ports quantity: 16
- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 17
- Number of microphone inputs: 1
- DC-in jack: Yes
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 8.66 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 432.4 mm
- Depth: 257.2 mm
