ATEN 16X16 HDMI MATRIX WITH SCALER

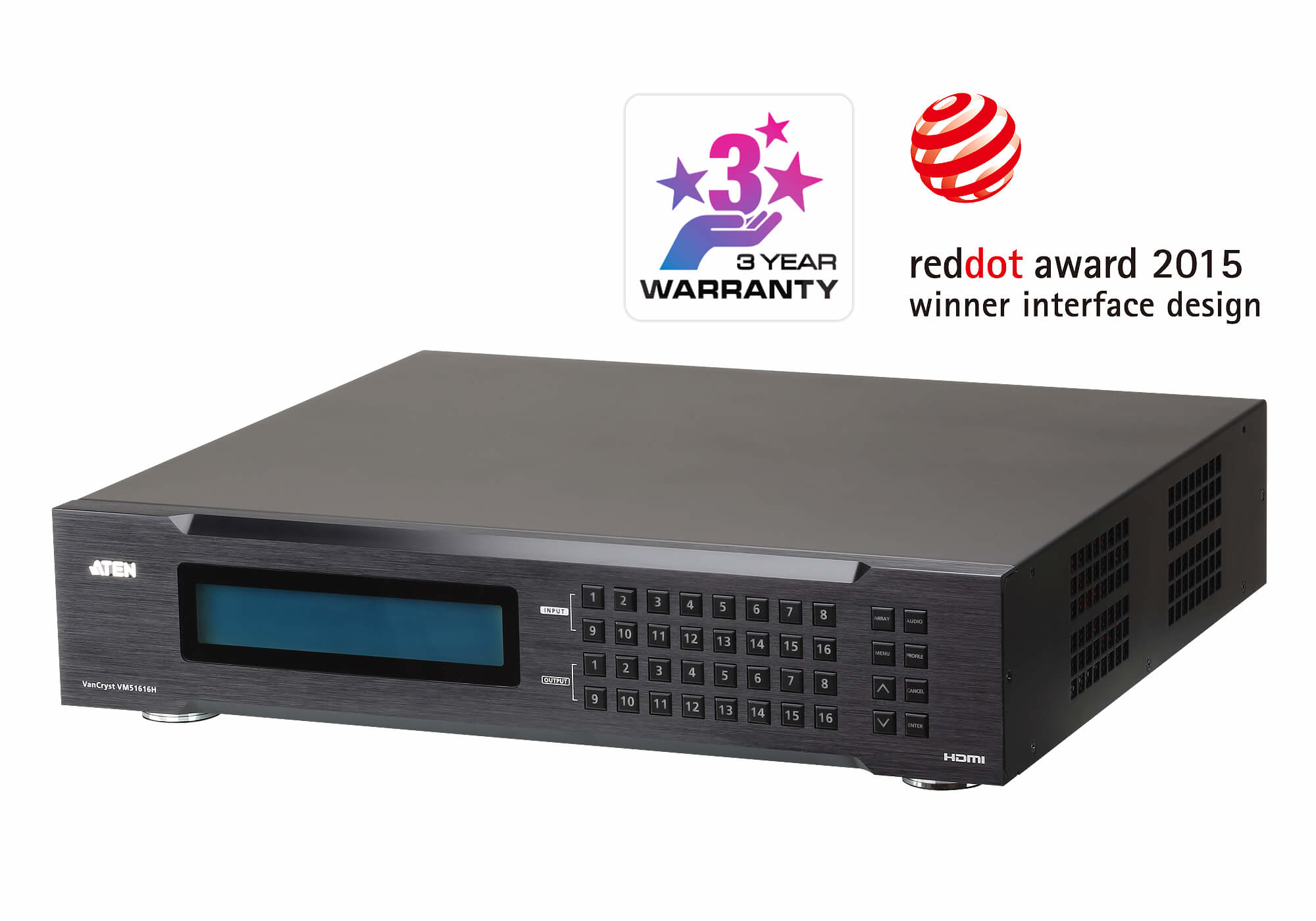

The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.
The VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.
The VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.
The VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.
The VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.
Key features
- Video port type: HDMI
- HDMI ports quantity: 32
- HDMI in: 16
- Number of HDMI outputs: 16
- RJ-45 input ports: 1
- 3.5 mm (1/8-inch) out: Yes
- RS-232 ports: 1
- Material: Metal
- Product colour: Black
- HDCP: Yes
- Maximum operating distance: 15 m
- Supported video modes: 480p, 720p, 1080i, 1080p
- Bandwidth: 6.75 Gbit/s
- LED indicators: Yes
- Bandwidth: 225 MHz
- Maximum resolution: 1920 x 1080 pixels
- 3D: Yes
- Dolby technologies: DTS-HD, Dolby TrueHD
- Rack capacity: 2U
- Input impedance: 100 Ω
- Output impedance: 100 Ω
- HDCP version: 1.4
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- AC adapter input current: 1 A
- Width: 432.4 mm
- Depth: 381.8 mm
- Height: 88 mm
- Weight: 7.86 kg
- Quantity per pack: 1 pc(s)
