ATEN 2-CONSOLE HIGH DENSITY CAT 5 KVM 8 PORT WITH DAISY-CHAIN PORT

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: KH2508A-AX-U
  • MPN: KH2508A-AX-U

ATEN KH2508A-AX-U KVM switch Black

ATEN KH2508A-AX-U, 1920 x 1200 pixels, Ethernet LAN, WUXGA, Black

ATEN 2-CONSOLE HIGH DENSITY CAT 5 KVM 8 PORT WITH DAISY-CHAIN PORT

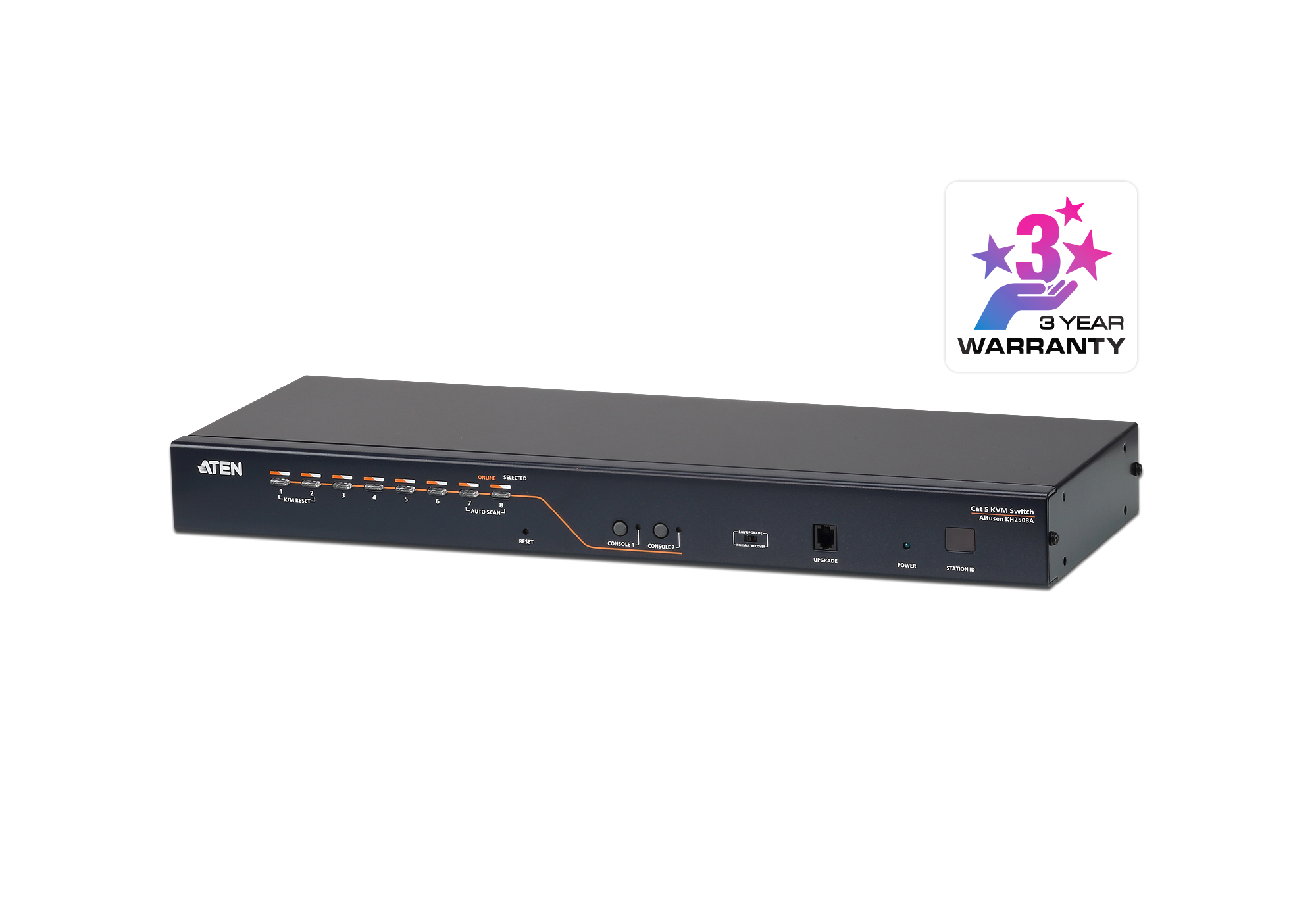

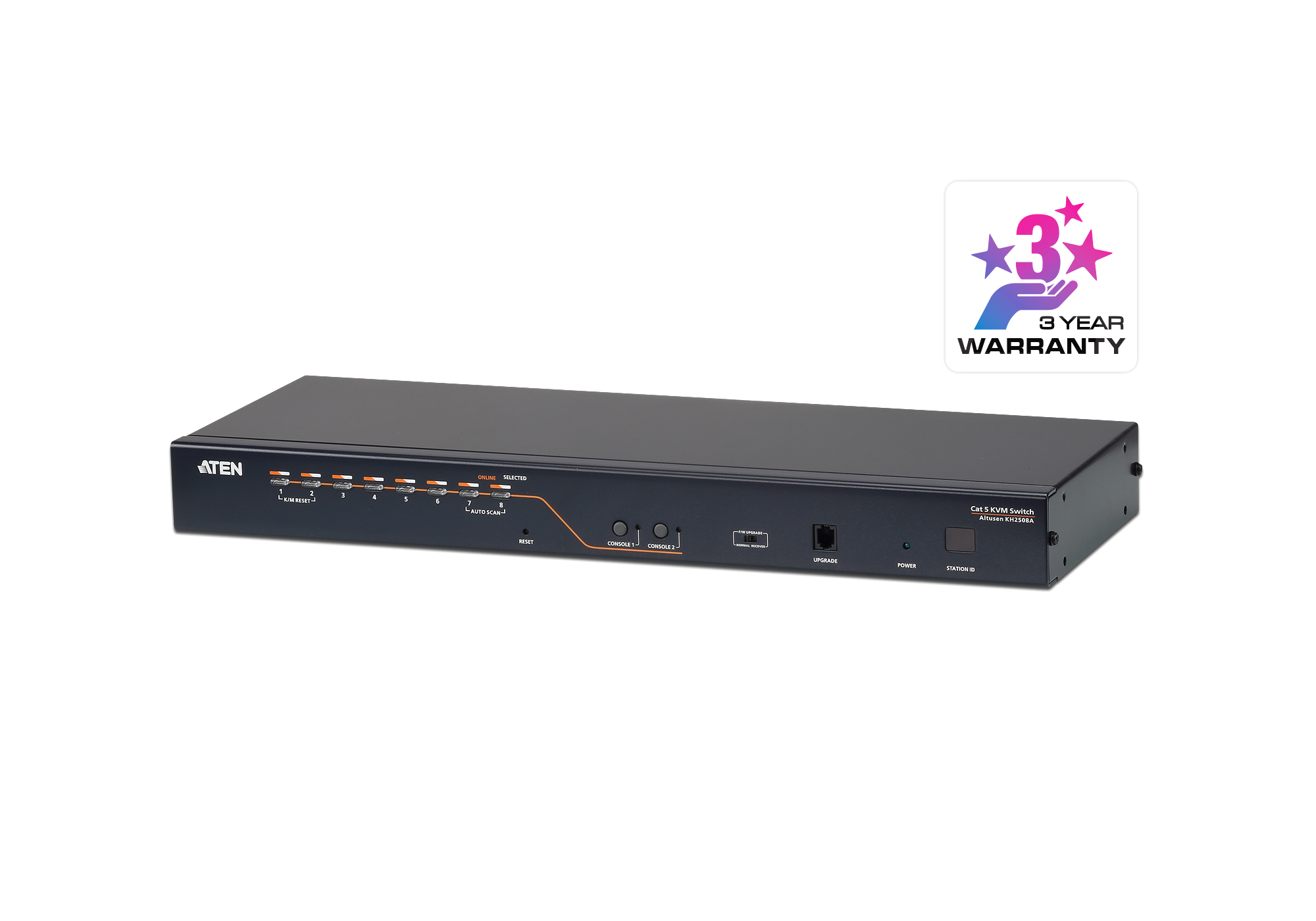

Click or hover over image to enlarge

Brand:ATEN
MPN:KH2508A-AX-U

Part #: KH2508A-AX-U

Search this part on Google

Power source

AC

Input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1 A

Product colour

Black

Housing material

Metal

LED indicators

Yes

Push button

Yes

Returns & Warranty

Comsys Price

$1,604.24
On Sale

Save $167.93 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $401.06 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 2-CONSOLE HIGH DENSITY CAT 5 KVM 8 PORT WITH DAISY-CHAIN PORT

The KH2508A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (two bus). Operators working at up to two consoles can independently and simultaneously take control of up to 8 computers. By daisy chaining up to 15 additional switches, as many as 128 computers can be controlled from the original KVM consoles.
1x KH2508A Cat 5 High-Density KVM Switch
1x Firmware LINS04A2-J11G Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Key features

  • Number of computers controlled: 8
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Console ports: PS/2, USB A, VGA (D-Sub)
  • Console USB ports quantity: 4
  • USB connector type: USB Type-A
  • PS/2 ports quantity: 4
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 8
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,255 s
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm
  • Depth: 155.8 mm

+ 4 more — see the Specifications tab.
