ATEN 2 PORT USB 2.0 DISPLAYPORT CABLE KVM SWITCH WITH AUDIO

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CS22DP-AT
  • MPN: CS22DP

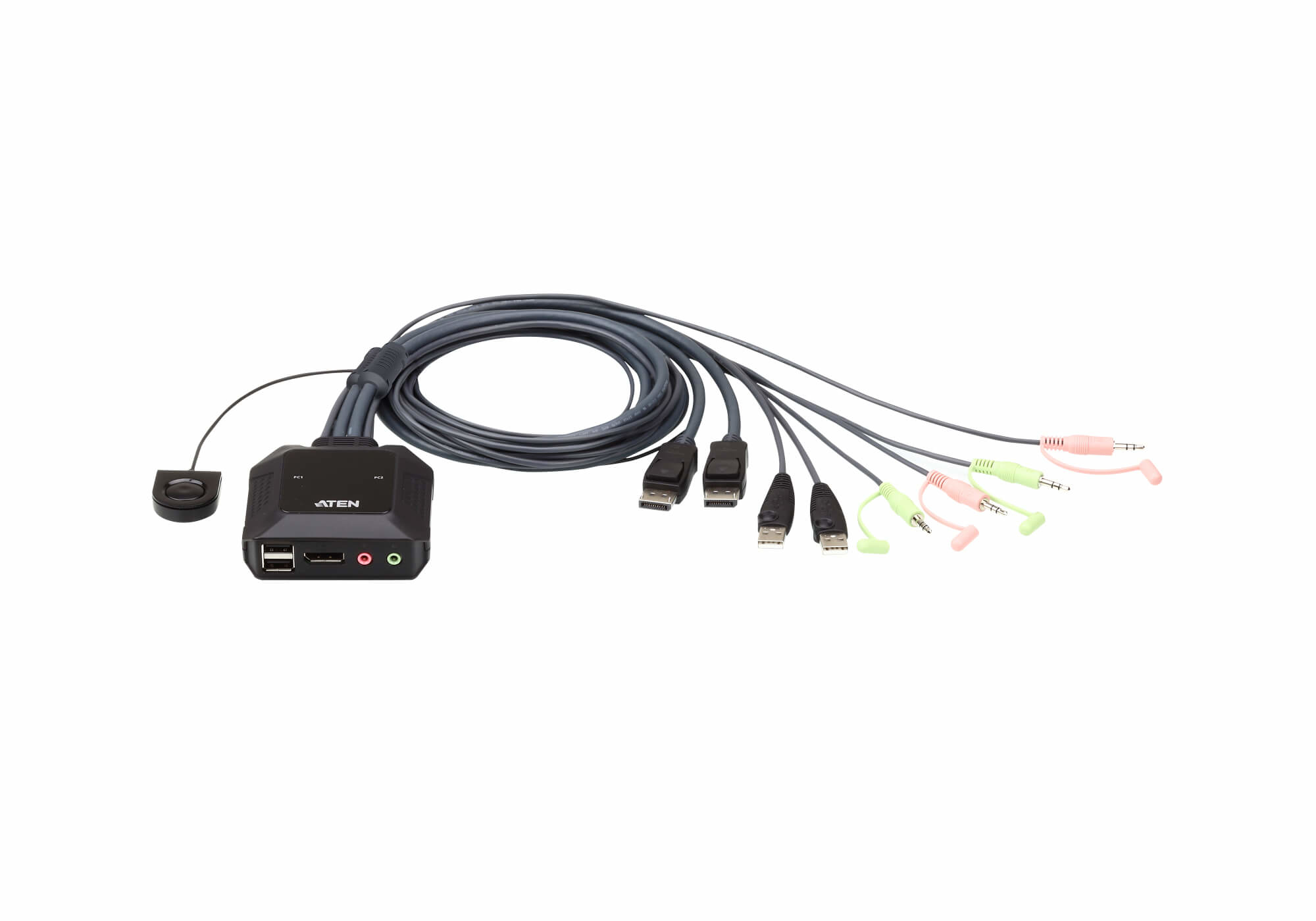

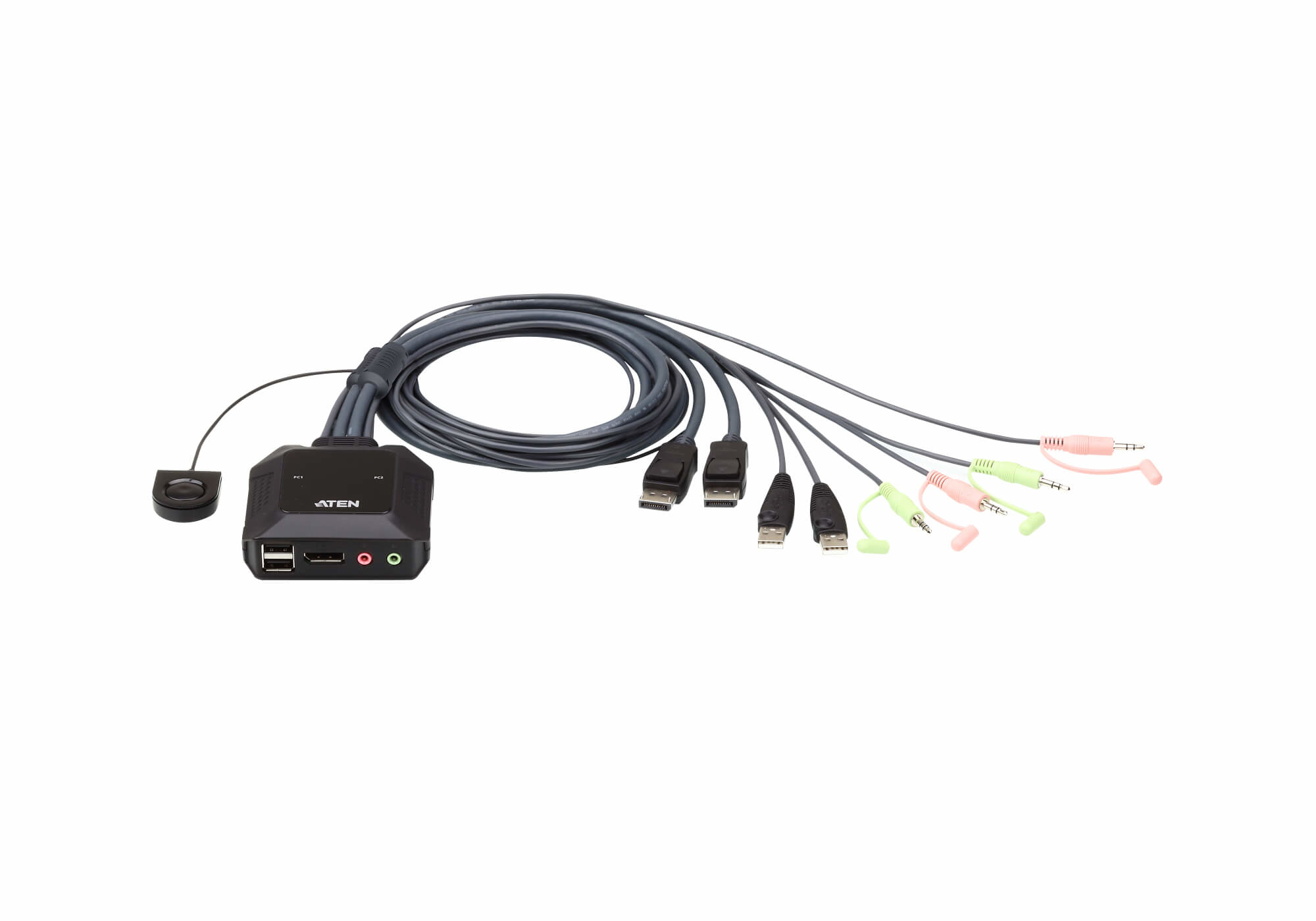

ATEN CS22DP KVM switch Black

ATEN CS22DP, 4096 x 2160 pixels, 4K Ultra HD, 1.38 W, Black

ATEN 2 PORT USB 2.0 DISPLAYPORT CABLE KVM SWITCH WITH AUDIO

Click or hover over image to enlarge

Brand:ATEN
MPN:CS22DP-AT

Part #: CS22DP-AT

Search this part on Google

Power source

DC

Input voltage

5 V

Power consumption (typical)

1.38 W

Rack mounting

No

Product colour

Black

Housing material

Plastic

Wired remote switch

Yes

Cable length

1.2 m

Returns & Warranty

Comsys Price

$127.64

In Stock

21 units available

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $31.91 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 2 PORT USB 2.0 DISPLAYPORT CABLE KVM SWITCH WITH AUDIO

Having two computers running different projects at the same time can be a time saver, but having a KVM console set up to switch between computers via a pushbutton over one shared screen makes multitasking even more productive. Allow the CS22DP compact cable KVM switch to work its magic by de-cluttering your desktop workspace with a neat and space-efficient new look, and further enrich your operations with superb 4K audiovisual quality, making your desktop workflows more enjoyable.

Superior AV Performance in Vivid 4K

The CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.

Smooth Cross-Platform Integration

The CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.

Flexible USB Peripheral Sharing

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on

The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Applications

The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.

Key features

  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 2
  • DisplayPort version: 1.1
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
  • Console USB ports quantity: 2
  • Console DisplayPorts ports quantity: 1
  • USB 2.0 Type-A hub ports quantity: 2
  • USB connector type: Micro-USB B, USB Type-A
  • Audio connections: Yes
  • Headphone outputs: 1
  • Number of microphone inputs: 1
  • Ethernet LAN: No
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 30 Hz
  • HDCP: Yes
  • Hot-Plug support: Yes
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Plastic
  • Wired remote switch: Yes
  • Cable length: 1.2 m
  • Remote switch cable length: 1.8 m
  • LED indicators: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V

+ 13 more — see the Specifications tab.
