ATEN 2 PORT USB 2.0 DVI DUAL LINK KVMP SWITCH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CS1782A-AT-U
  • MPN: CS1782A-AT-U

ATEN 2-Port USB DVI Dual Link KVM Switch with Audio & USB 2.0 Hub…

ATEN 2-Port USB DVI Dual Link KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 2560 x 1600 pixels, WQXGA, 3.3 W, Black

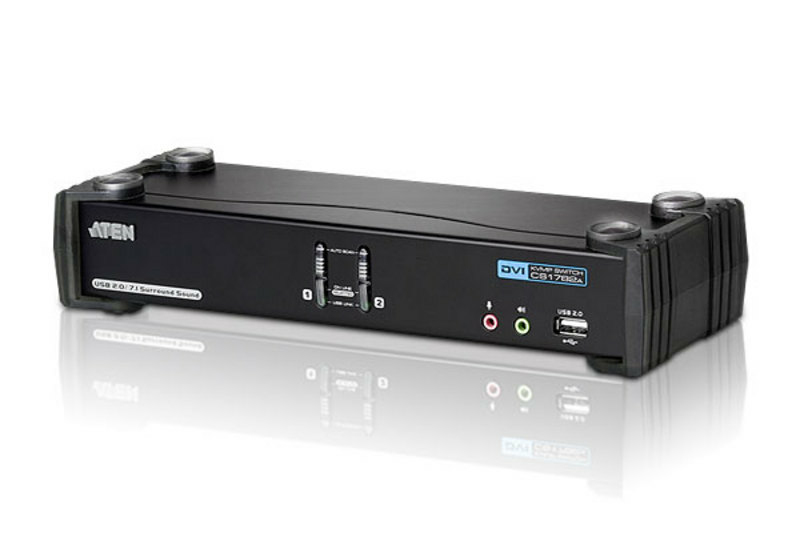

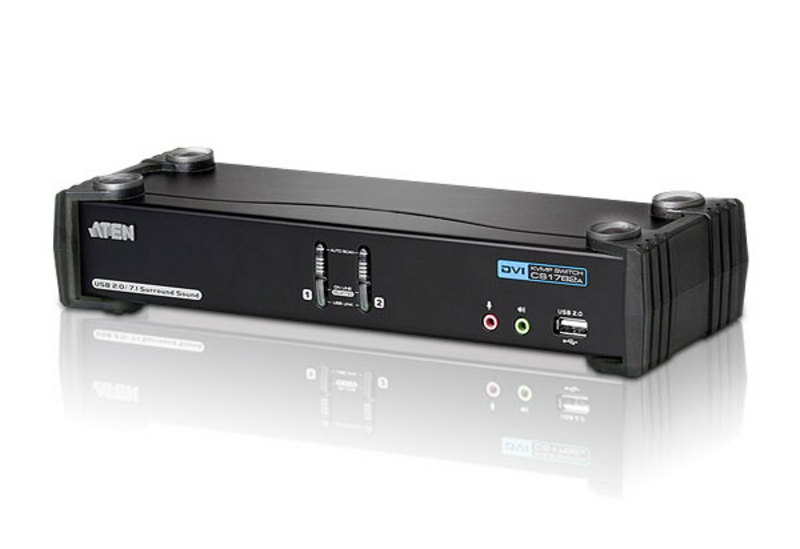

ATEN 2 PORT USB 2.0 DVI DUAL LINK KVMP SWITCH

Click or hover over image to enlarge

Brand:ATEN
MPN:CS1782A-AT-U

Part #: CS1782A-AT-U

Search this part on Google

Power source

DC

Input voltage

5.3 V

Power consumption (typical)

3.3 W

Product colour

Black

Housing material

Metal

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Returns & Warranty

Comsys Price

$438.14

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $109.54 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 2 PORT USB 2.0 DVI DUAL LINK KVMP SWITCH

The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
1 x CS1782A USB DVI Dual Link KVMP™ Switch
2 x 2L-7D02UD DVI-D KVM Cables sets (1.8m)
2 x LIN5-12N1-N11G Custom 7.1 Channel Surround Sound Cable Sets (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions

Key features

  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI-I
  • DVI-I ports quantity: 2
  • USB 2.0 Type-B ports quantity: 2
  • Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A
  • Console USB ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 3
  • Number of microphone inputs: 3
  • DC-in jack: Yes
  • HD type: WQXGA
  • Maximum resolution: 2560 x 1600 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5.3 V
  • Power consumption (typical): 3.3 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%

+ 17 more — see the Specifications tab.
