ATEN 2 PORT VGA SPLITTER WITH AUDIO
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VS0102-AT-U
- MPN: VS0102-AT-U

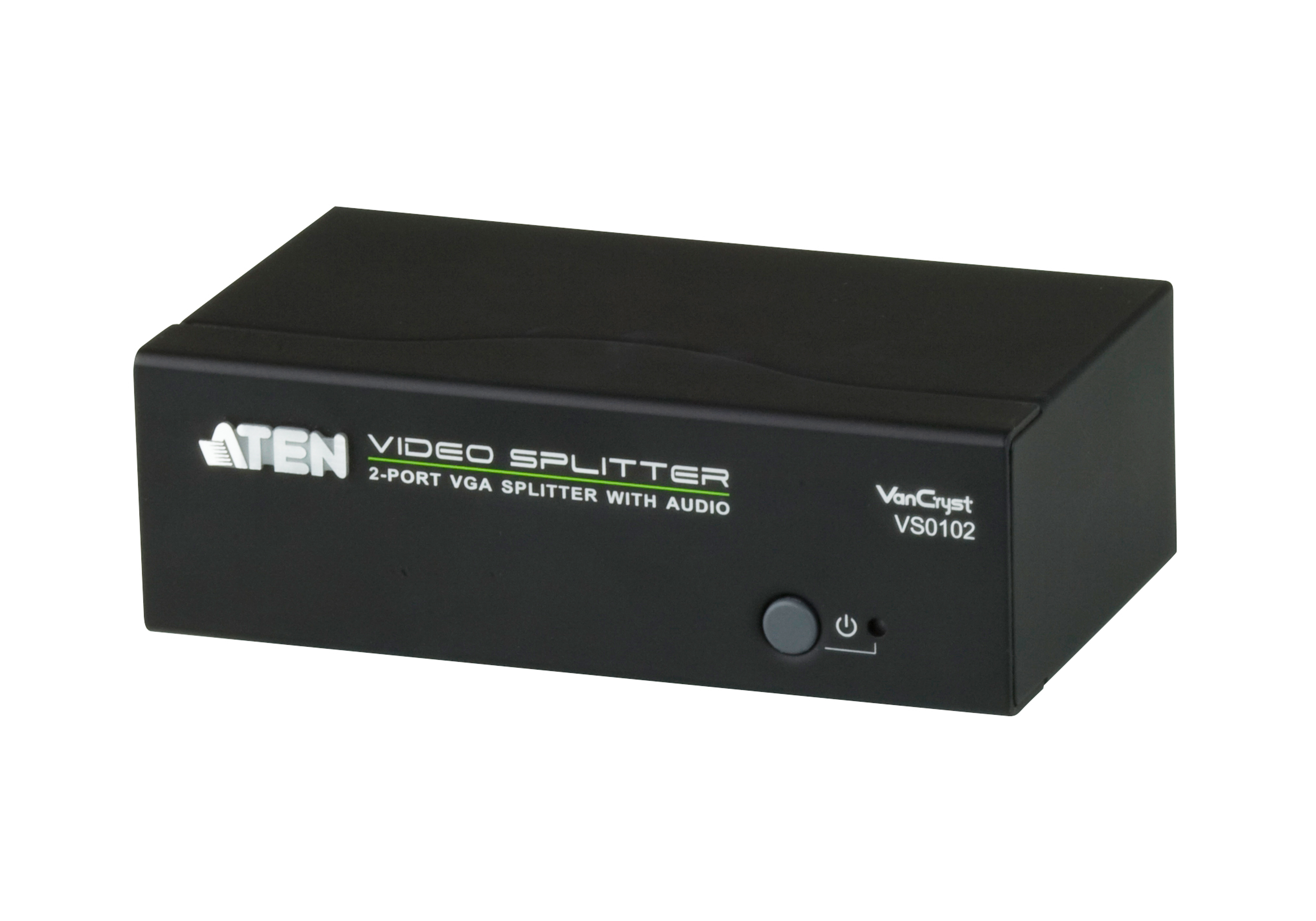

ATEN 2-Port VGA/Audio Splitter (450MHz)
ATEN 2-Port VGA/Audio Splitter (450MHz), VGA, 2x VGA, 1920 x 1440 pixels, Black, Metal, 30 m
Click or hover over image to enlarge
Output voltage
5.3 V
Power consumption (max)
0.74 W
Ethernet LAN
No
Product colour
Black
Housing material
Metal
Maximum resolution
1920 x 1440 pixels
Maximum operating distance
30 m
Maximum refresh rate
60 Hz
Comsys Price
Save $16.30 off RRP
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Four payments of $27.02 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 2 PORT VGA SPLITTER WITH AUDIO
Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
Key features
- Video port type: VGA
- Video out: 2x VGA
- Video ports quantity: 3
- Audio ports quantity: 3
- Serial ports quantity: 1
- DC-in jack: Yes
- Product colour: Black
- Housing material: Metal
- Maximum resolution: 1920 x 1440 pixels
- Maximum operating distance: 30 m
- Maximum refresh rate: 60 Hz
- Bandwidth: 450 MHz
- Extended display identification data (EDID): Yes
- Plug and Play: Yes
- Ethernet LAN: No
- Output voltage: 5.3 V
- Power consumption (max): 0.74 W
- Width: 76.1 mm
- Depth: 130 mm
- Height: 44 mm
- Weight: 460 g
- Quantity per pack: 1 pc(s)
- Packaging content: 1x 2-Port VGA Splitter with Audio 1x Power Adapter 1x User Instructions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Inc GST
$108.09
