ATEN 2X2 TRUE 4K HDMI MATRIX SWITCH WITH AUDIO DE-EMBEDDER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VM0202HB-AT-U
  • MPN: VM0202HB-AT-U

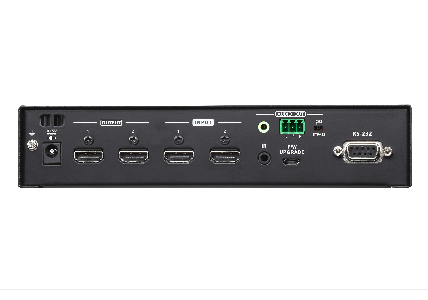

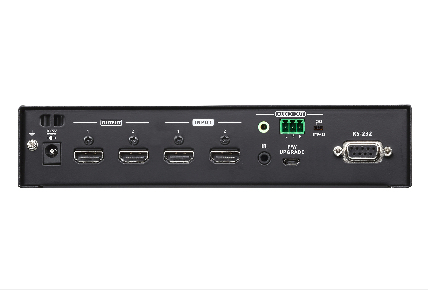

ATEN VM0202HB AV matrix switcher Built-in display

ATEN VM0202HB, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, Black, Metal

ATEN 2X2 TRUE 4K HDMI MATRIX SWITCH WITH AUDIO DE-EMBEDDER

Click or hover over image to enlarge

Brand:ATEN
MPN:VM0202HB-AT-U

Part #: VM0202HB-AT-U

Search this part on Google

Power consumption (typical)

2.47 W

Housing colour

Black

Housing material

Metal

Rack mounting

Yes

Control type

Buttons, Wireless

LED indicators

Yes

Remote control included

Yes

Built-in display

Yes

Returns & Warranty

Comsys Price

$573.84
On Sale

Save $109.39 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $143.46 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 2X2 TRUE 4K HDMI MATRIX SWITCH WITH AUDIO DE-EMBEDDER

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.

The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.

Key features

  • Product type: AV matrix switcher
  • Data transfer rate: 18 Gbit/s
  • Maximum pixel clock: 600 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: Yes
  • HDCP version: 2.2
  • 3D: Yes
  • High Dynamic Range (HDR) supported: Yes
  • Extended display identification data (EDID): Yes
  • Housing colour: Black
  • Housing material: Metal
  • Rack mounting: Yes
  • Control type: Buttons, Wireless
  • LED indicators: Yes
  • Remote control included: Yes
  • Built-in display: Yes
  • HDMI input ports quantity: 2
  • HDMI output ports quantity: 2
  • USB connector type: Mini-USB
  • USB ports quantity: 1
  • RS-232 ports: 1
  • Audio (L/R) in: 1
  • Remote (IR) input: 1
  • Power consumption (typical): 2.47 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 76 mm
  • Depth: 200 mm

+ 2 more — see the Specifications tab.
