ATEN 32X32 TRUE 4K MODULAR DIGITAL MATRIX WITH SCALER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VM3250-AT-U
  • MPN: VM3250-AT-U

ATEN VM3250-AT-U matrix switcher Modular AV matrix switchers…

ATEN VM3250-AT-U, Modular AV matrix switchers, 22.5 Gbit/s, 4096 x 2160 pixels, 15.2 Gbit/s, Black, Metal

ATEN 32X32 TRUE 4K MODULAR DIGITAL MATRIX WITH SCALER

Click or hover over image to enlarge

Brand:ATEN
MPN:VM3250-AT-U

Part #: VM3250-AT-U

Search this part on Google

Power consumption (max)

239 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1 A

Housing colour

Black

Housing material

Metal

Rack mounting

Yes

Rack capacity

9U

Returns & Warranty

Price on Application

Contact us for pricing

Sales will confirm seat count, term, and volume pricing before order.

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 32X32 TRUE 4K MODULAR DIGITAL MATRIX WITH SCALER

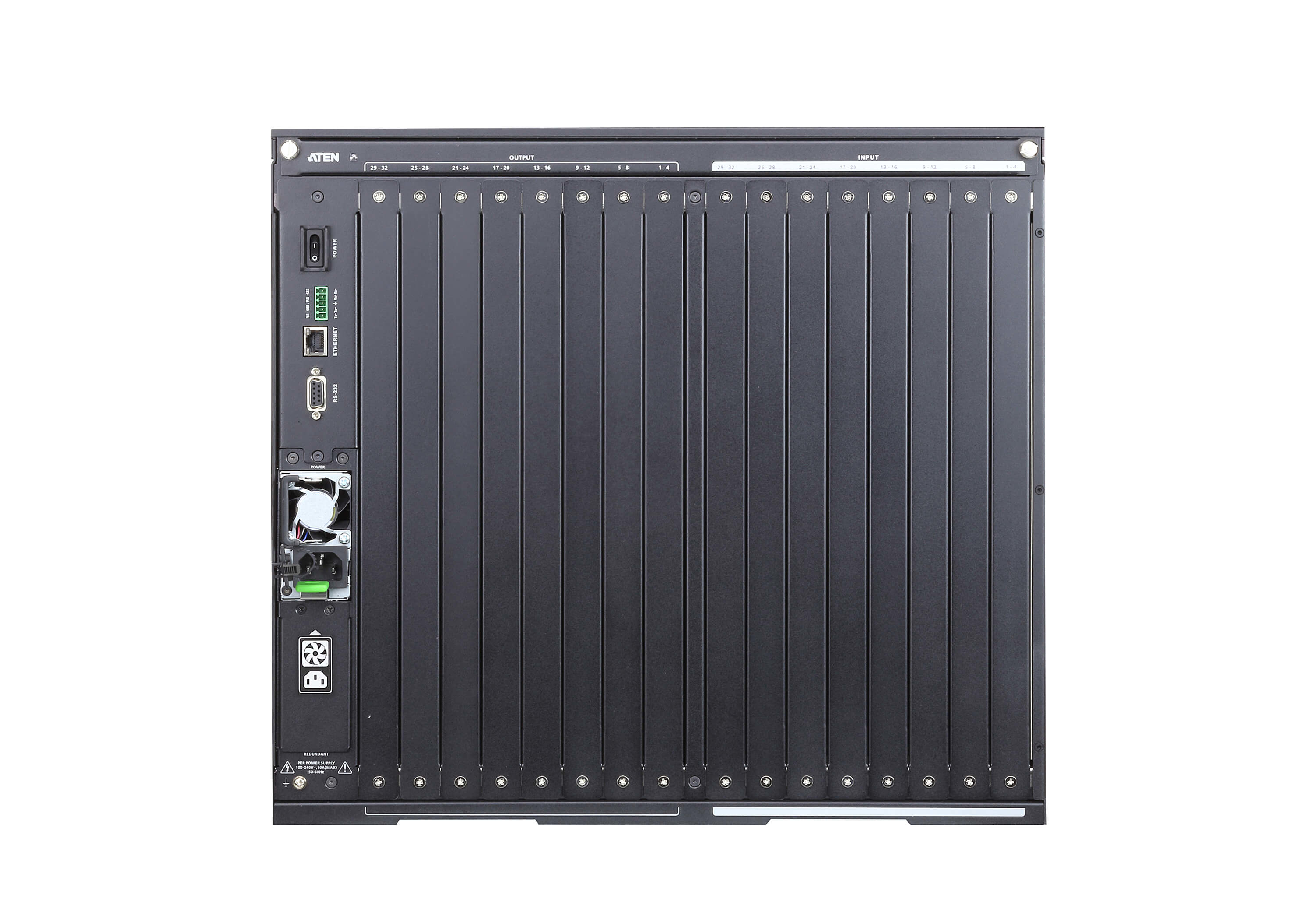

The VM3250 Modular Matrix Switch Gen. 2 offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3250 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers from the front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.
1x VM3250 32 x 32 Modular Matrix Switch
1x Power Module
1x Terminal Block Connector
1x Power Cord
1x User Instructions

Key features

  • Product type: Modular AV matrix switchers
  • Data transfer rate: 22.5 Gbit/s
  • Maximum resolution: 4096 x 2160 pixels
  • Bandwidth: 15.2 Gbit/s
  • Extended display identification data (EDID): Yes
  • Housing colour: Black
  • Housing material: Metal
  • Rack mounting: Yes
  • Rack capacity: 9U
  • Built-in display: Yes
  • RJ-45 input ports: 1
  • RS-232 ports: 1
  • RS-422 ports: 1
  • Power consumption (max): 239 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 471.9 mm
  • Depth: 482 mm
  • Height: 399 mm
  • Weight: 19.2 kg
  • Package width: 518 mm
  • Package depth: 579 mm
  • Package height: 526 mm
  • Package weight: 22.2 kg
  • Cables included: AC
  • Quick start guide: Yes
