ATEN 4-PORT 10G OPTICAL INPUT BOARD 4K@300M MULTI-MODE FIBRE

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VM7584K1-AT
  • MPN: VM7584K1-AT

ATEN 4-Port 10G Optical Input Board (4K@300m (K1, MM) / 10km (K2, SM))

ATEN 4-Port 10G Optical Input Board (4K@300m (K1, MM) / 10km (K2, SM)), Input board, Black, Metal, Aten VM3250 / VM3200 / VM1600A, 10.54 W, 352 mm

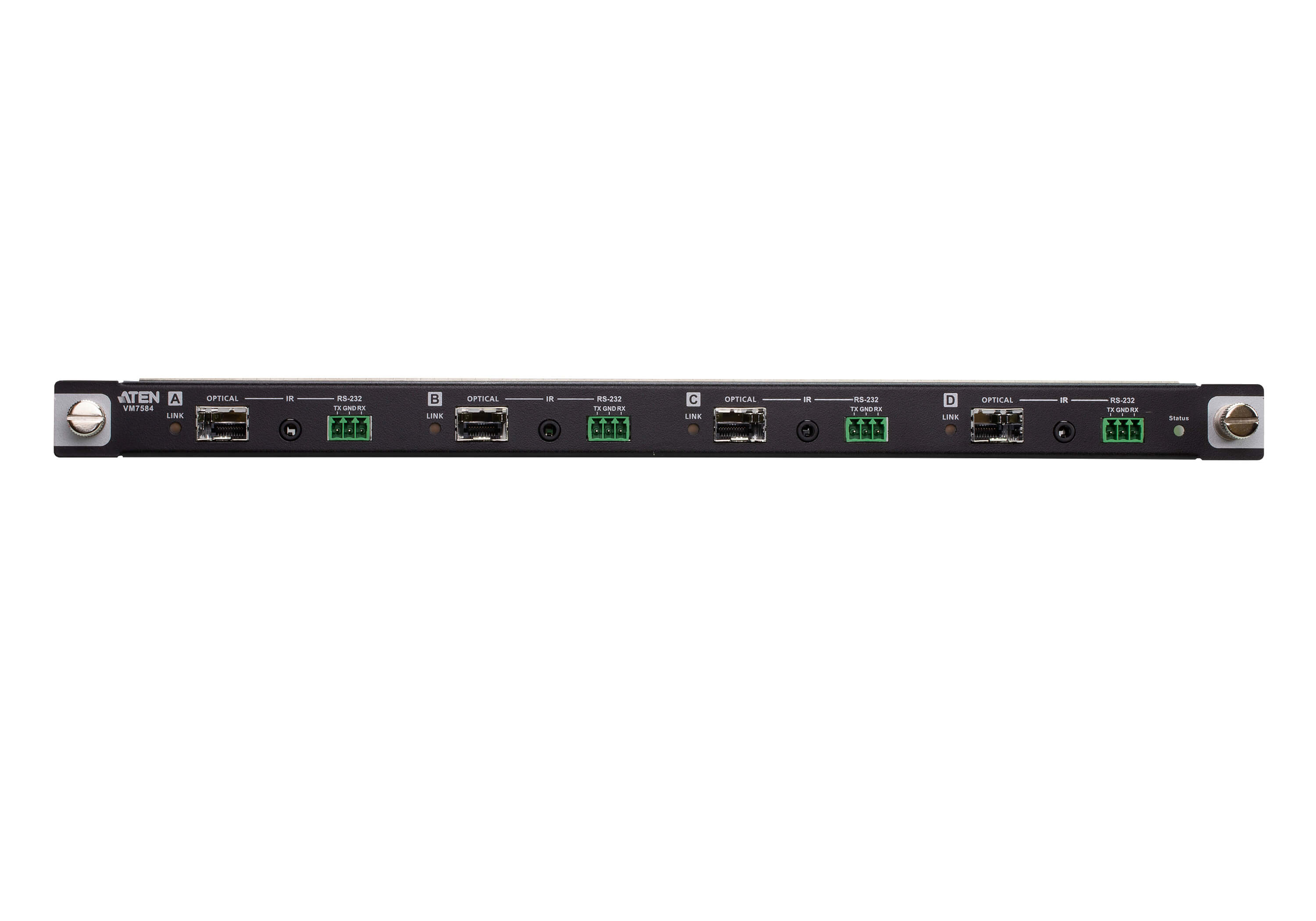

ATEN 4-PORT 10G OPTICAL INPUT BOARD 4K@300M MULTI-MODE FIBRE

Click or hover over image to enlarge

Brand:ATEN
MPN:VM7584K1-AT

Part #: VM7584K1-AT

Search this part on Google

Power consumption (typical)

10.54 W

Product type

Input board

Product colour

Black

Material

Metal

LED indicators

Yes

Compatibility

Aten VM3250 / VM3200 / VM1600A

Products per master (outer) case

2 pc(s)

Master (outer) case gross weight

2.59 kg

Returns & Warranty

Comsys Price

$6,092.69
On Sale

Save $1,072.16 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 4-PORT 10G OPTICAL INPUT BOARD 4K@300M MULTI-MODE FIBRE

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM7584 4-Port 10G Optical Input Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions

Key features

  • Product type: Input board
  • Product colour: Black
  • Material: Metal
  • LED indicators: Yes
  • Compatibility: Aten VM3250 / VM3200 / VM1600A
  • Power consumption (typical): 10.54 W
  • Width: 352 mm
  • Depth: 238 mm
  • Height: 23.3 mm
  • Weight: 720 g
  • Package width: 285 mm
  • Package depth: 426 mm
  • Package height: 57 mm
  • Package weight: 1.07 kg
  • Quick start guide: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage temperature (T-T): -20 - 60 °C
  • Storage relative humidity (H-H): 0 - 80%
  • Products per master (outer) case: 2 pc(s)
  • Master (outer) case gross weight: 2.59 kg
  • Master (outer) case length: 440 mm
  • Master (outer) case width: 300 mm
  • Master (outer) case height: 138 mm
  • Master (outer) case net weight: 1.44 kg
