ATEN 4 PORT HDBASET INPUT BOARD FOR VM1600A/VM3200

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VM7514-AT
  • MPN: VM7514-AT

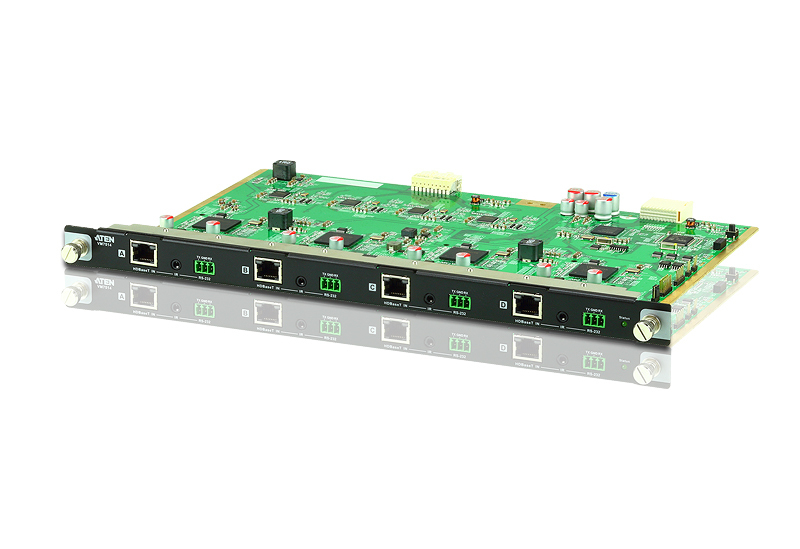

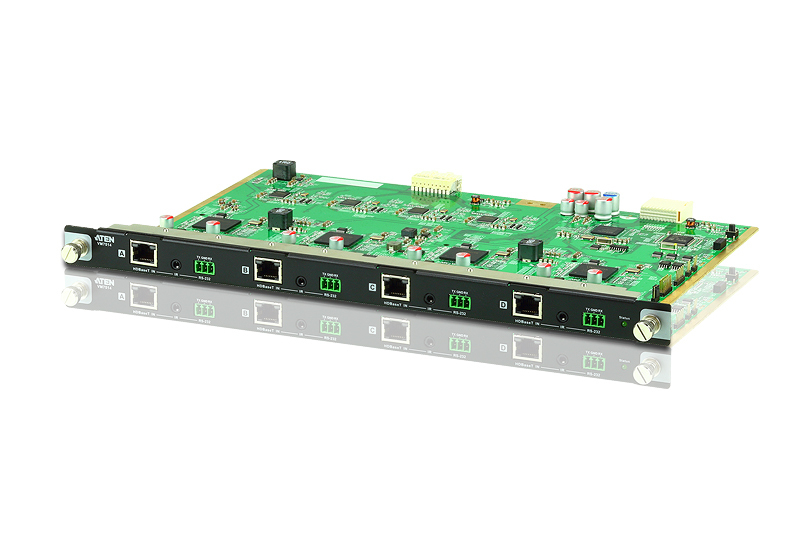

ATEN 4-Port HDBaseT Input Board for VM1600 / VM3200

ATEN 4-Port HDBaseT Input Board for VM1600 / VM3200, Metal, Black, Green, 4096 x 2160, 2160p, 340 MHz, 4096 x 2160 pixels

ATEN 4 PORT HDBASET INPUT BOARD FOR VM1600A/VM3200

Click or hover over image to enlarge

Brand:ATEN
MPN:VM7514-AT

Part #: VM7514-AT

Search this part on Google

Power consumption (typical)

24.5 W

Material

Metal

Product colour

Black, Green

HDCP

Yes

Supported graphics resolutions

4096 x 2160

Supported video modes

2160p

Bandwidth

340 MHz

Maximum resolution

4096 x 2160 pixels

Returns & Warranty

Comsys Price

$4,325.14
On Sale

Save $769.08 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 4 PORT HDBASET INPUT BOARD FOR VM1600A/VM3200

The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters connected to HDMI sources to 4 HDBaseT receivers connected to HDMI displays, and in combination with the ATEN Modular Matrix Switch provides the ability route up to 16 input and 16 output HDBaseT connections

- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards

Key features

  • Audio (L/R) out: 4
  • RJ-45 input ports: 4
  • RS-232 ports: 4
  • Material: Metal
  • Product colour: Black, Green
  • HDCP: Yes
  • Supported graphics resolutions: 4096 x 2160
  • Supported video modes: 2160p
  • Bandwidth: 340 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • Cable length: 1000 m
  • Power consumption (typical): 24.5 W
  • Width: 237 mm
  • Height: 228 mm
  • Weight: 990 g
  • Length: 352 mm
  • Quantity per pack: 1 pc(s)
  • Packaging content: 1x VM7514 4-Port HDBaseT Input Board, 4x Terminal Block Connectors, 1x IR Transmitter, 1x IR Receiver, 1x User Instructions
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
