ATEN 4 PORT HDMI 4K OUTPUT BOARD WITH SCALAR FOR VM1600A/VM3200
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VM8814-AT
- MPN: VM8814-AT
ATEN 4-Port 4K HDMI Output Board With Scaler Save $1,365.62 off RRP
Available On OrderAsk us for ETA
$5,583.24
Inclusive of GST
1
Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-044693
- MPN:
- VM8814-AT
- Brand:
- ATEN
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $1,365.62 off RRP while stocks last.
ATEN 4 PORT HDMI 4K OUTPUT BOARD WITH SCALAR FOR VM1600A/VM3200

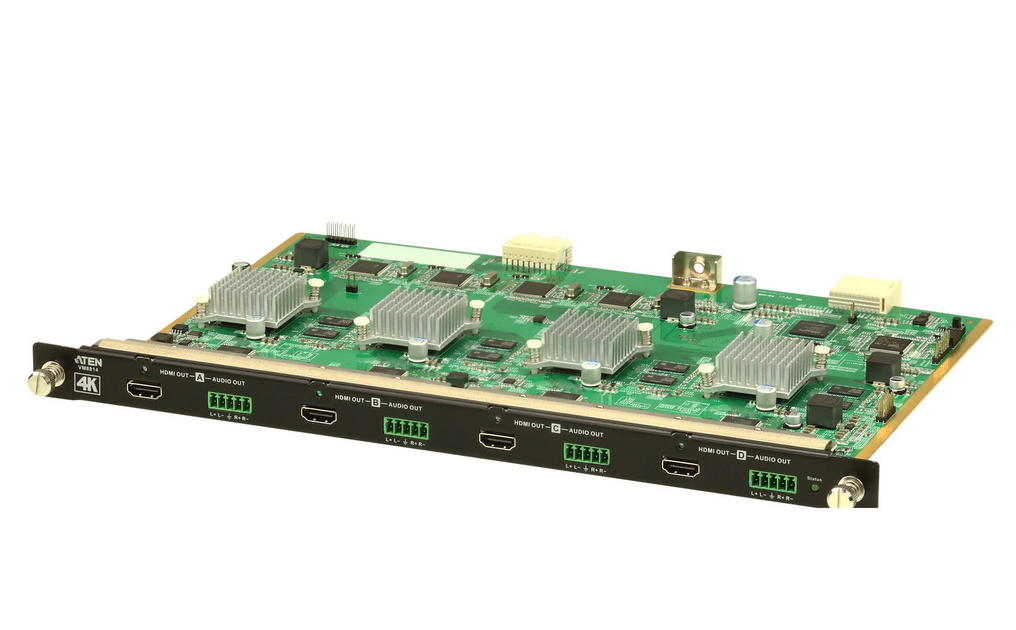

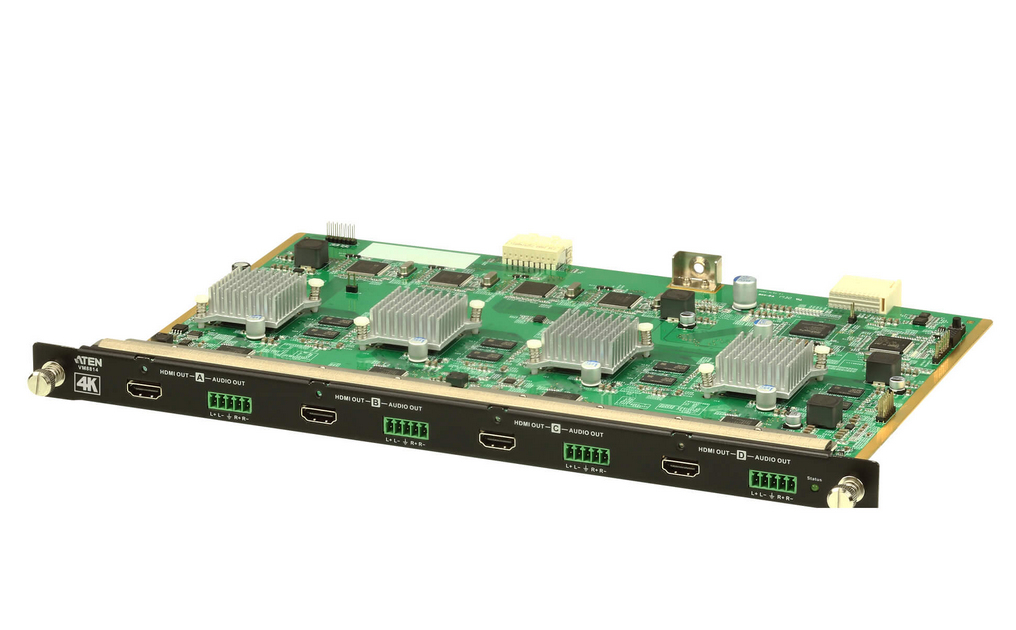

The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Key features
- Video port type: HDMI
- Number of HDMI outputs: 4
- Material: Metal
- Product colour: Green, Grey
- HDCP: Yes
- Maximum operating distance: 15 m
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Supported video modes: 480p, 720p, 1080i, 1080p
- Bandwidth: 10.2 Gbit/s
- LED indicators: Yes
- Bandwidth: 340 MHz
- Maximum resolution: 4096 x 2160 pixels
- Built-in speaker(s): No
- 3D: Yes
- HD type: 4K Ultra HD
- Output impedance: 100 Ω
- Heat dissipation: 94 BTU/h
- HDCP version: 2.2
- Power consumption (typical): 20 W
- Width: 238 mm
- Depth: 23.3 mm
- Height: 352 mm
- Weight: 1.02 kg
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Compliance certificates: RoHS
