ATEN 4 PORT USB 2.0 HDMI KVMP SWITCH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CS1794-AT-U
  • MPN: CS1794-AT-U

ATEN 4-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables…

ATEN 4-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 1920 x 1200 pixels, WUXGA, 3.62 W, Black

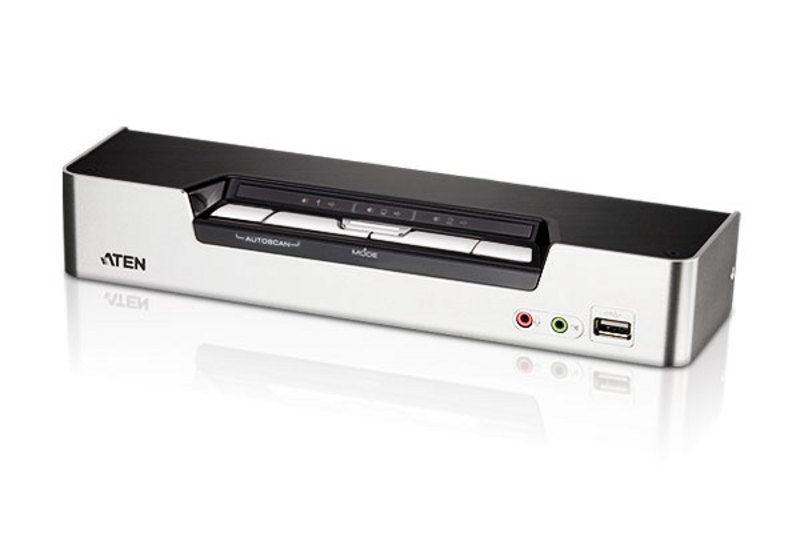

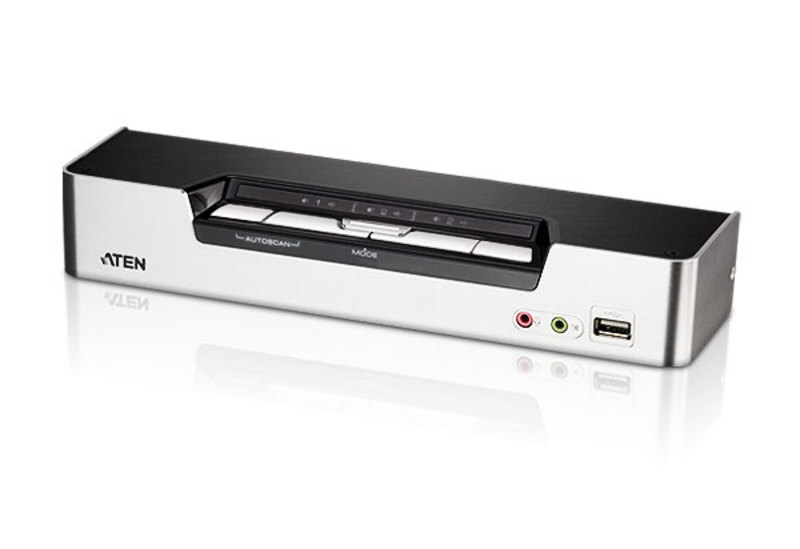

ATEN 4 PORT USB 2.0 HDMI KVMP SWITCH

Click or hover over image to enlarge

Brand:ATEN
MPN:CS1794-AT-U

Part #: CS1794-AT-U

Search this part on Google

Power source

DC

Input voltage

5.3 V

Power consumption (typical)

3.62 W

Product colour

Black

Housing material

Metal, Plastic

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Returns & Warranty

Comsys Price

$526.69

Only 2 left in stock

Order soon to avoid backorder

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $131.67 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 4 PORT USB 2.0 HDMI KVMP SWITCH

With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
1x CS1794 USB 2.0 HDMI KVMP™ Switch
4x 2L-7D02UH HDMI KVM Cable Sets
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Key features

  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 4
  • USB 2.0 Type-B ports quantity: 4
  • Console ports: 3.5mm headphone, HDMI, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 6
  • Number of microphone inputs: 6
  • DC-in jack: Yes
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5.3 V
  • Power consumption (typical): 3.62 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes

+ 22 more — see the Specifications tab.
