ATEN 4K DISPLAYPORT HDBASET 2.0 KVM EXTENDER WITH RS232

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CE920-ATA-U
  • MPN: CE920-ATA-U
ATEN 4K DISPLAYPORT HDBASET 2.0 KVM EXTENDER WITH RS232 — ATEN — NETWORKING

ATEN CE920-ATA-U KVM extender Transmitter & receiver Save $274.75 off RRP

Available On OrderAsk us for ETA
$2,111.39

Inclusive of GST

1
Afterpay4 payments of $527.85
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-DD-011348
MPN:
CE920-ATA-U
Brand:
ATEN

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $274.75 off RRP while stocks last.

ATEN 4K DISPLAYPORT HDBASET 2.0 KVM EXTENDER WITH RS232

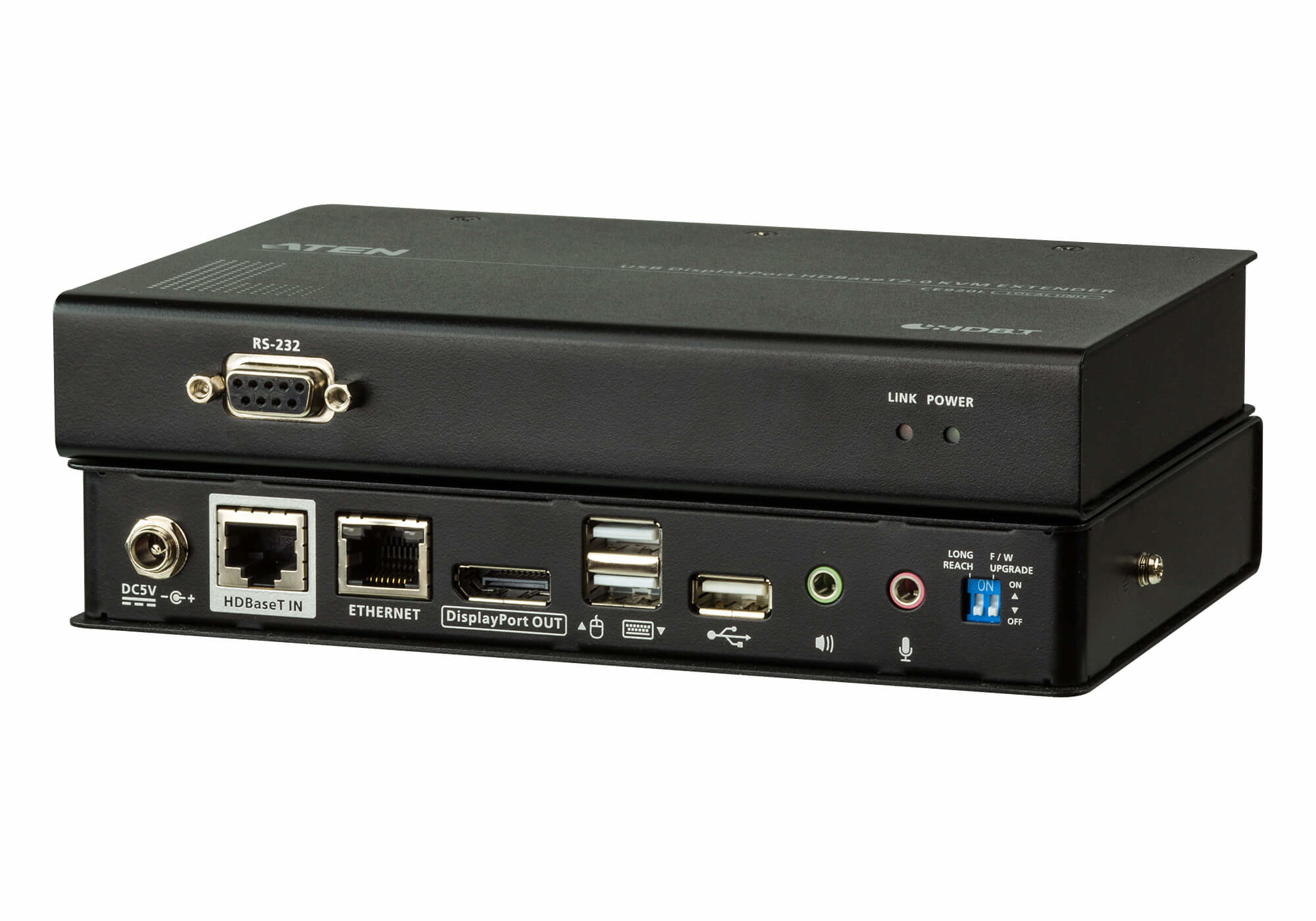

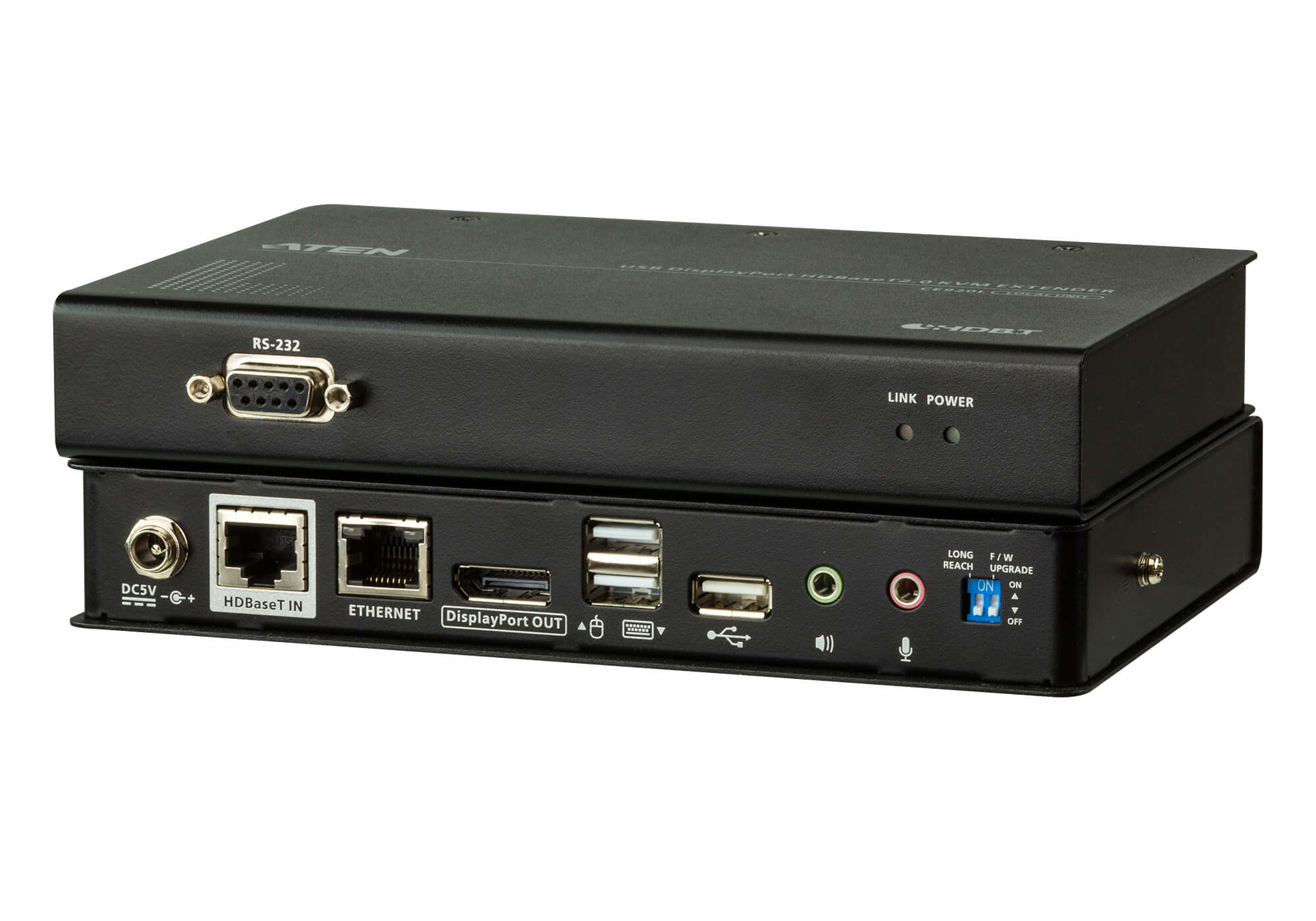

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-0205-21DG Microphone Cable
1x LIN5-0205-21CG Speaker Cable
1x LIN6-04U1-V1BG USB Type-A to Type-B Cable
1x LIN5-20K1-K13G DisplayPort Cable
2x Mounting Kits
2x 0AD8-1F05-30M1 Power Adapters
1x User Instructions

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Rack mounting: Yes
  • Maximum digital resolution: 4096 x 2160 pixels
  • Product colour: Black
  • Material: Metal
  • LED indicators: Yes
  • Transmitter video port type: DisplayPort
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: DisplayPort
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • USB 2.0 ports quantity: 4
  • USB data transfer rates: 480 Mbit/s
  • PC Audio in: Yes
  • PC Audio out: Yes
  • AC adapter output voltage: 5 V
  • Power consumption (transmitter) (max): 3.99 W
  • Power consumption (receiver) (max): 6.74 W
  • Transmitter width: 18.2 cm
  • Transmitter depth: 12.2 cm
  • Transmitter height: 2.87 cm
  • Transmitter weight: 630 g
  • Receiver width: 18.2 cm
  • Receiver depth: 12.2 cm
  • Receiver height: 2.87 cm
  • Receiver weight: 640 g
