ATEN 8 CHANNEL RELAY EXPANSION BOX

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VK248-AT
  • MPN: VK248-AT

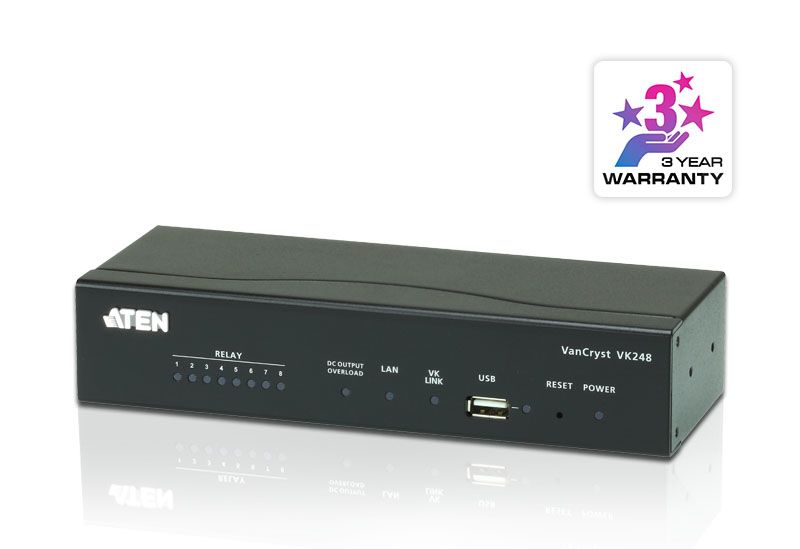

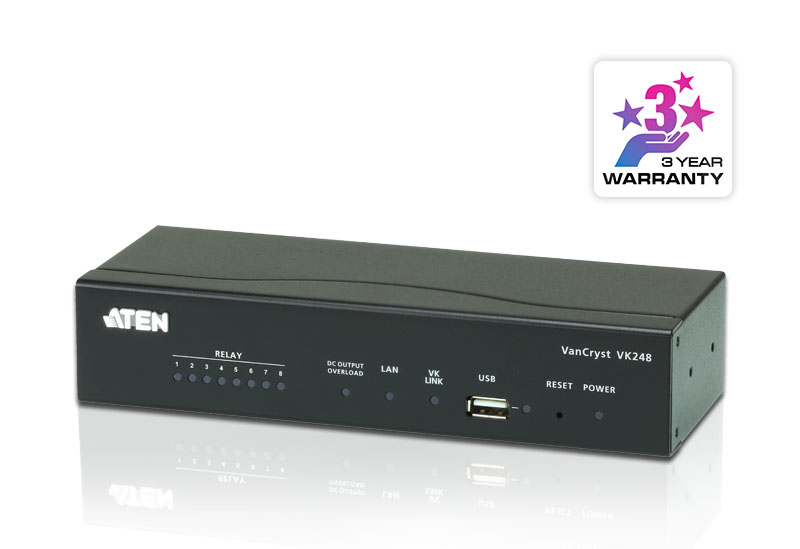

ATEN 8-Channel Relay Expansion Box

ATEN 8-Channel Relay Expansion Box, 8 channels, Relay channel, ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH, Black, 300 mA, DC5V:2.82W:24BTU, DC48V:3.53W:27BTU

ATEN 8 CHANNEL RELAY EXPANSION BOX

Click or hover over image to enlarge

Brand:ATEN
MPN:VK248-AT

Part #: VK248-AT

Search this part on Google

Power consumption

300 mA

Power consumption note

DC5V:2.82W:24BTU, DC48V:3.53W:27BTU

Channels quantity

8 channels

Channel type

Relay channel

Ethernet LAN (RJ-45) ports

1

Supported network protocols

ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

Product colour

Black

Products per master (outer) case

5 pc(s)

Returns & Warranty

Comsys Price

$947.59
On Sale

Save $336.41 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $236.90 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 8 CHANNEL RELAY EXPANSION BOX

The VK248 8-Channel Relay Expansion Box provides an additional eight channels of relay output for a flexible expansion of the ATEN Control System. This allows users to control additional devices such as screen, projector lifts and blinds in environments where more devices are required. With the advantage of an Ethernet-based connection, the expansion box easily connects to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
1x VK248 8-Channel Relay Expansion Box
1x Mounting Kit
9x Terminal Blocks
1x User Instructions

Key features

  • Channels quantity: 8 channels
  • Channel type: Relay channel
  • Ethernet LAN (RJ-45) ports: 1
  • Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
  • Product colour: Black
  • Power consumption: 300 mA
  • Power consumption note: DC5V:2.82W:24BTU, DC48V:3.53W:27BTU
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Width: 75.8 mm
  • Depth: 200 mm
  • Height: 42 mm
  • Weight: 740 g
  • Package width: 59 mm
  • Package depth: 239 mm
  • Package height: 160 mm
  • Package weight: 900 g
  • Products per master (outer) case: 5 pc(s)
  • Master (outer) case width: 250 mm
  • Master (outer) case length: 325 mm
  • Master (outer) case height: 175 mm
  • Master (outer) case gross weight: 4.85 kg
  • Master (outer) case net weight: 3.7 kg

Inc GST

$947.59
