ATEN 8 PORT VGA KVMP SWITCH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CS1308-AT-U
  • MPN: CS1308-AT-U

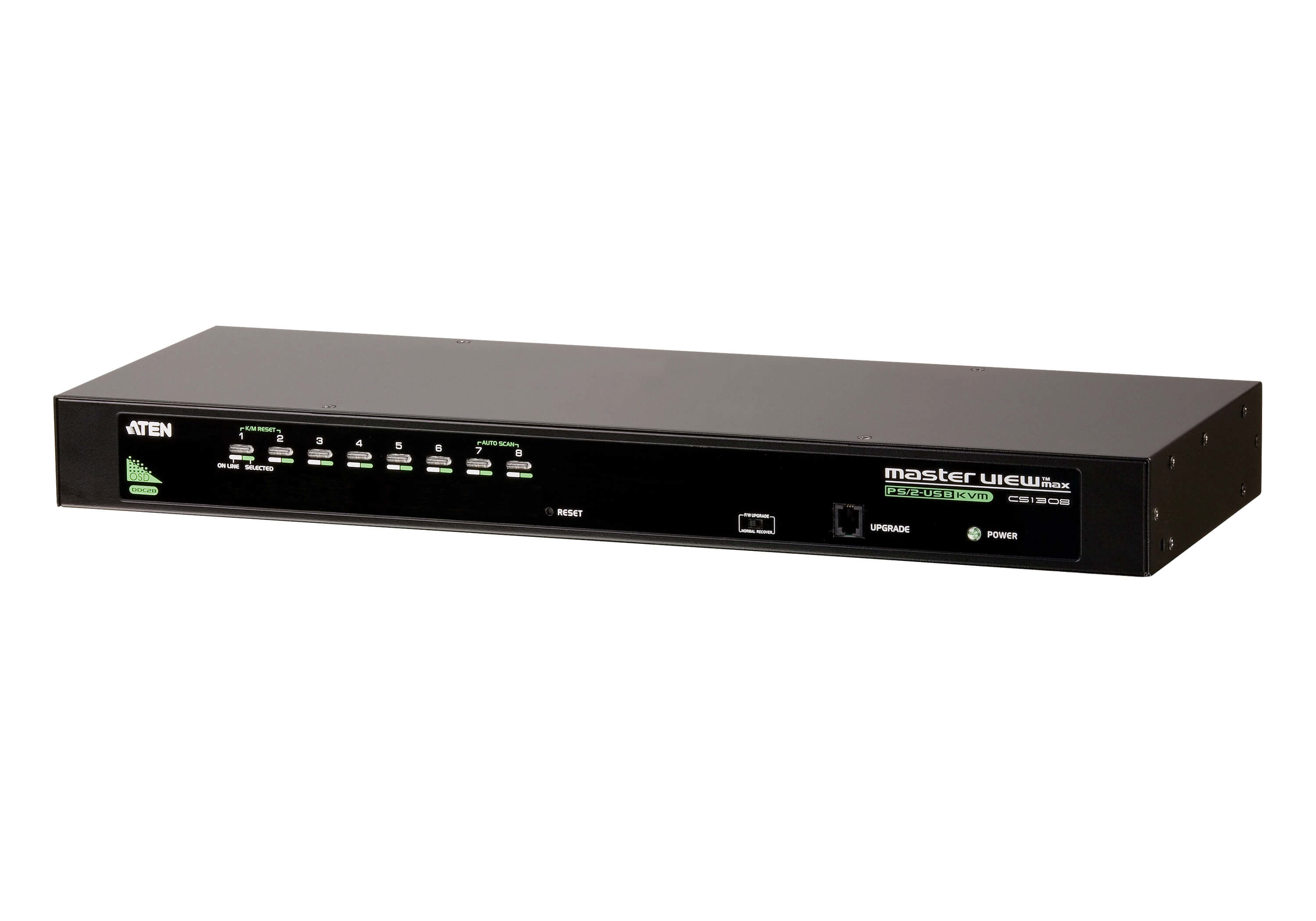

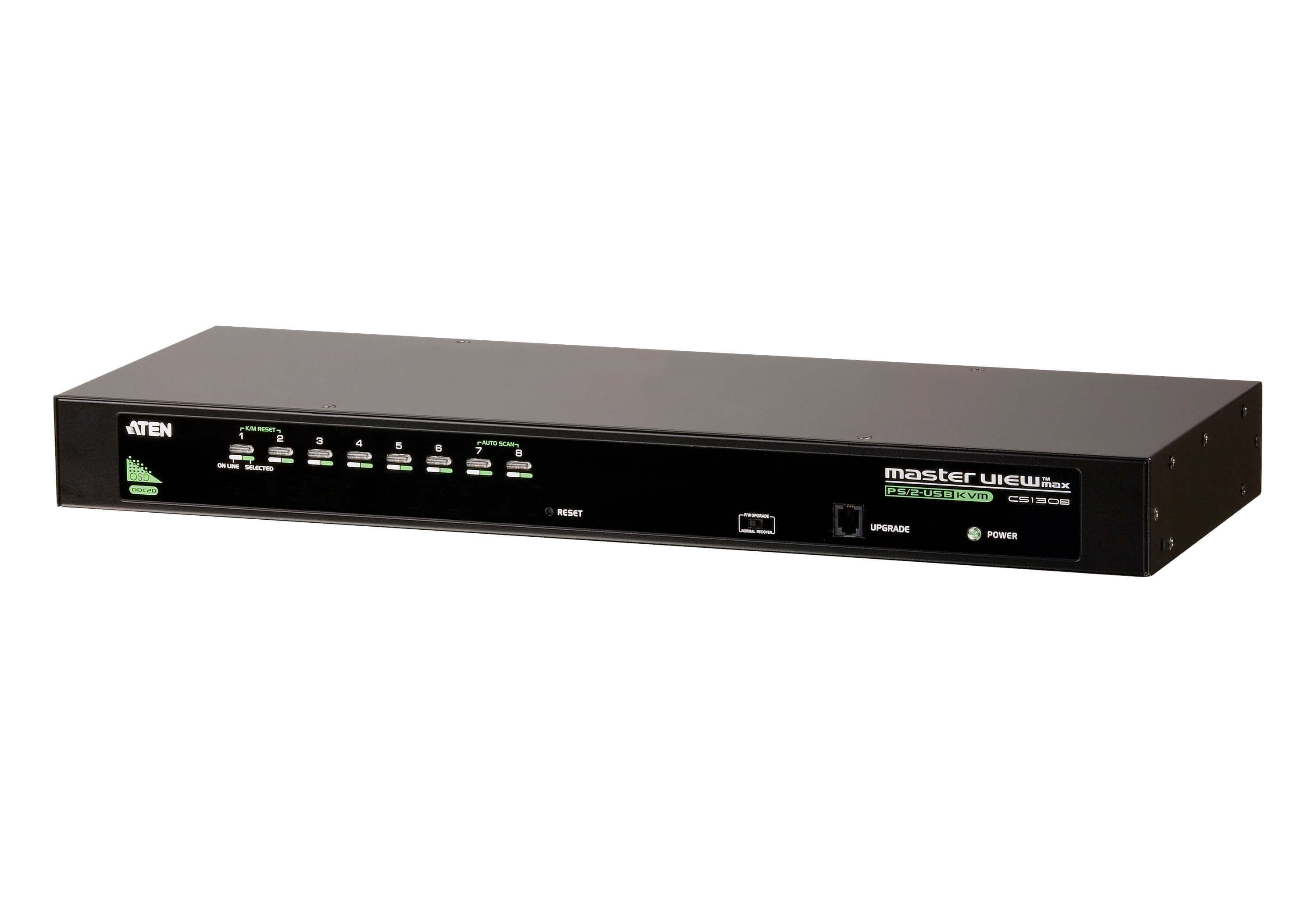

ATEN 8-Port USB - PS/2 VGA KVM Switch

ATEN 8-Port USB - PS/2 VGA KVM Switch, 2048 x 1536 pixels, QXGA, Rack mounting, 5 W, 1U, Black

ATEN 8 PORT VGA KVMP SWITCH

Click or hover over image to enlarge

Brand:ATEN
MPN:CS1308-AT-U

Part #: CS1308-AT-U

Search this part on Google

Power source

DC

Input voltage

5.3 V

Power consumption (typical)

5 W

Rack mounting

Yes

Rack capacity

1U

Product colour

Black

Housing material

Metal

Cascadable

Yes

Returns & Warranty

Comsys Price

$469.19

Only 2 left in stock

Order soon to avoid backorder

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $117.30 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 8 PORT VGA KVMP SWITCH

The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers from a single console (keyboard, mouse, and monitor).
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Key features

  • Number of computers controlled: 64
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • VGA (D-Sub) ports quantity: 8
  • Console ports: VGA (D-Sub)
  • DC-in jack: Yes
  • HD type: QXGA
  • Maximum resolution: 2048 x 1536 pixels
  • Scan interval: 1,255 s
  • DDC2B support: Yes
  • Firmware upgradeable: Yes
  • Rack mounting: Yes
  • Rack capacity: 1U
  • Product colour: Black
  • Housing material: Metal
  • Cascadable: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5.3 V
  • Power consumption (typical): 5 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Other operating systems supported: Yes
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C

+ 20 more — see the Specifications tab.
