ATEN 8X8 TRUE 4K HDMI MATRIX SWITCH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VM0808HB-AT-U
  • MPN: VM0808HB-AT-U

ATEN VM0808HB-AT-U matrix switcher AV matrix switcher Built-in…

ATEN VM0808HB-AT-U, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, 1920 x 1200, Black

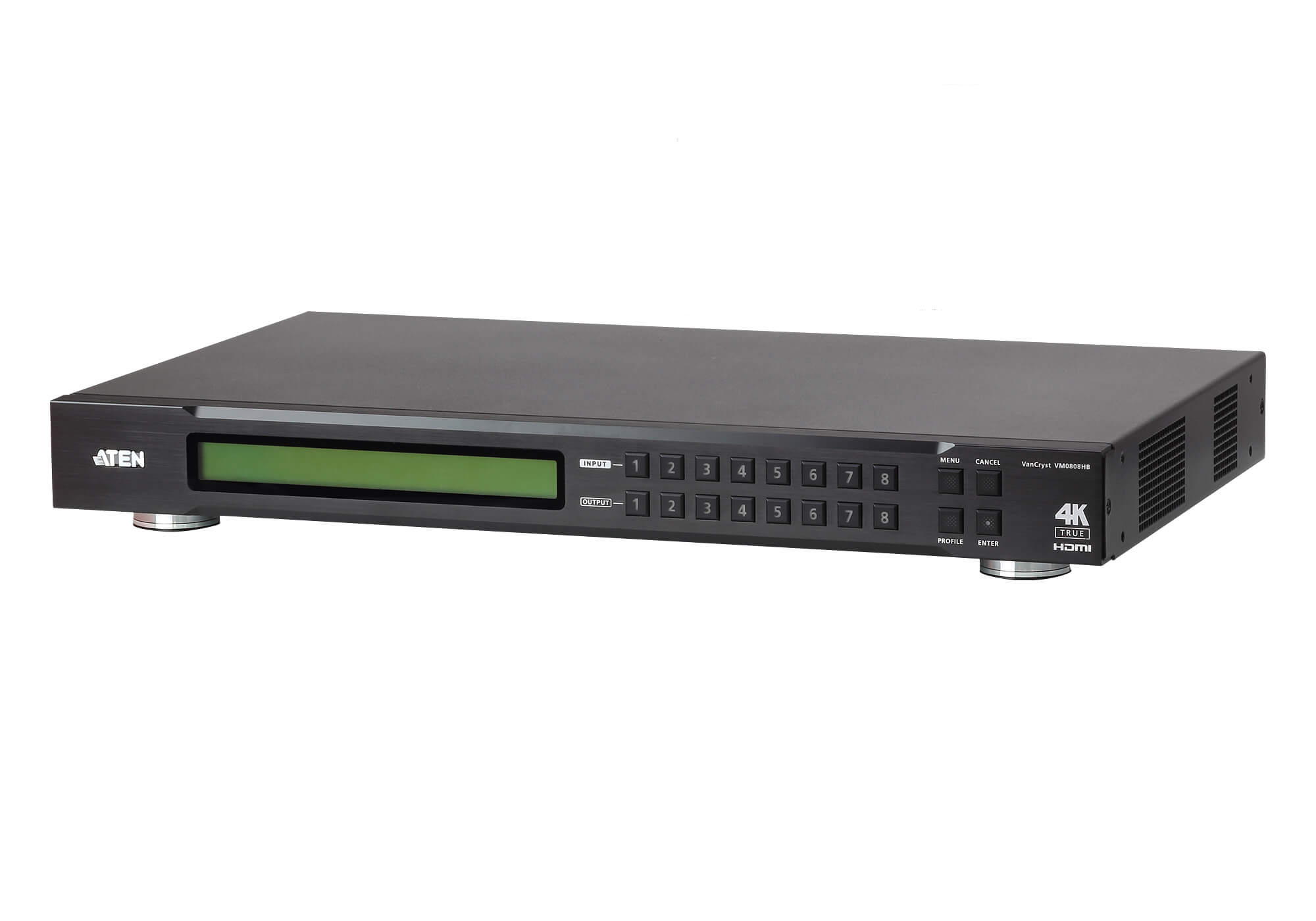

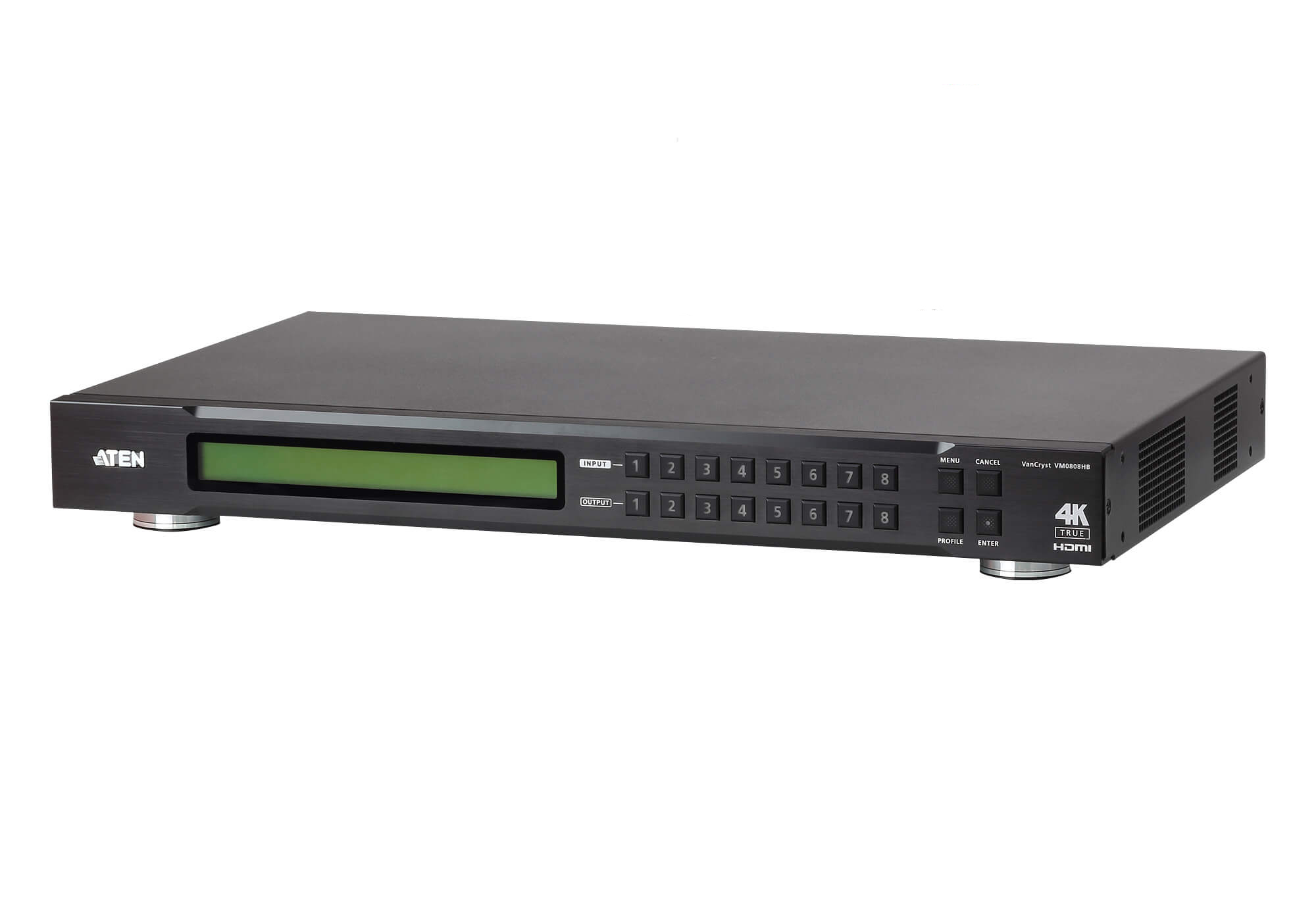

ATEN 8X8 TRUE 4K HDMI MATRIX SWITCH

Click or hover over image to enlarge

Brand:ATEN
MPN:VM0808HB-AT-U

Part #: VM0808HB-AT-U

Search this part on Google

Power consumption (max)

38.1 W

Power consumption (typical)

37.8 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1 A

Housing colour

Black

Housing material

Metal

Rack mounting

Yes

Returns & Warranty

Comsys Price

$3,854.79
On Sale

Save $683.55 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $963.70 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 8X8 TRUE 4K HDMI MATRIX SWITCH

ATEN's VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions

Key features

  • Product type: AV matrix switcher
  • Data transfer rate: 18 Gbit/s
  • Maximum pixel clock: 600 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: Yes
  • HDCP version: 2.2
  • 3D: Yes
  • High Dynamic Range (HDR) supported: Yes
  • Extended display identification data (EDID): Yes
  • Supported resolutions: 4096 x 2160, 3840 x 2160, 1920 x 1200
  • Housing colour: Black
  • Housing material: Metal
  • Rack mounting: Yes
  • Rack capacity: 1U
  • Control type: Buttons
  • On/off switch: Yes
  • LED indicators: Yes
  • Remote control included: Yes
  • Built-in display: Yes
  • HDMI input ports quantity: 8
  • HDMI output ports quantity: 8
  • Ethernet LAN (RJ-45) ports: 1
  • RS-232 ports: 1
  • Remote (IR) input: 1
  • Power consumption (max): 38.1 W
  • Power consumption (typical): 37.8 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 40 °C

+ 17 more — see the Specifications tab.
