ATEN CAMLIVE MX UVC CAMERA SEAMLESS MATRIX WITH 2 X USB3.0 CAMERA INPUTS AND HDMI OUTPUT

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: UC3310-AT-U
  • MPN: UC3310-AT-U
ATEN CAMLIVE MX UVC CAMERA SEAMLESS MATRIX WITH 2 X USB3.0 CAMERA INPUTS AND HDMI OUTPUT — ATEN — NETWORKING

ATEN UC3310-AT-U video capturing device USB 3.2 Gen 1 (3.1 Gen 1) Save $139.70 off RRP

Available On OrderAsk us for ETA
$867.09

Inclusive of GST

1
Afterpay4 payments of $216.77
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-DD-044004
MPN:
UC3310-AT-U
Brand:
ATEN

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $139.70 off RRP while stocks last.

ATEN CAMLIVE MX UVC CAMERA SEAMLESS MATRIX WITH 2 X USB3.0 CAMERA INPUTS AND HDMI OUTPUT

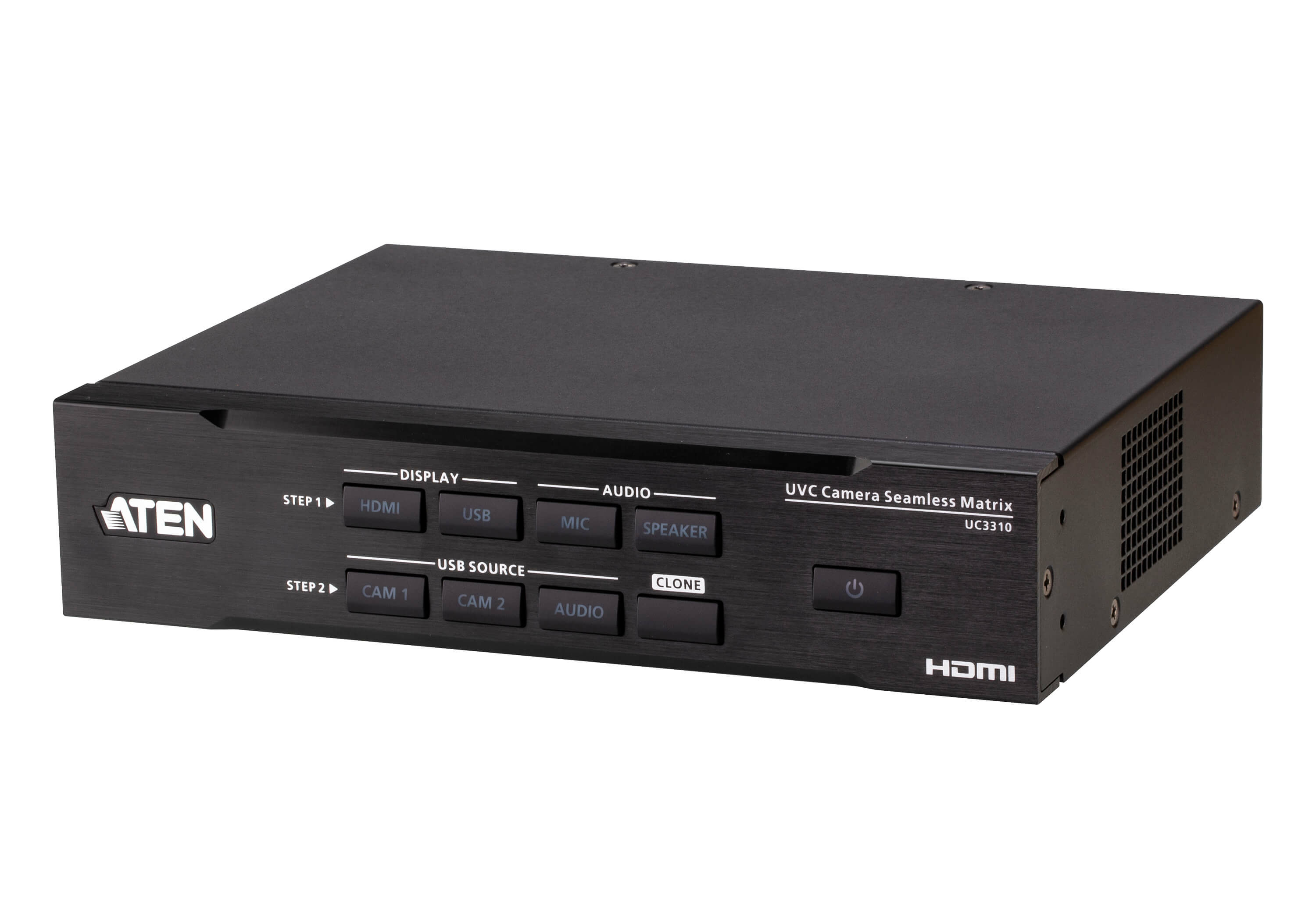

The CAMLIVE MX (UC3310) UVC Camera Seamless Matrix enables the conversion of up to two 4K @ 30 USB camera sources into one HDMI, allowing seamless switch among the sources. Besides, it features the encoding solution supporting 1080p@30 UVC output simultaneously for live broadcasting on popular streaming software such as Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch, guaranteeing an engaging video conferencing experience with high quality images and sound.

Pushbuttons are built on the front panel for quick and intuitive signal selection. The RS-232 connection enables integration with ATEN VK series and other third-party control systems. The CAMLIVE MX also comes with RS-485 interface to support VISCA protocol for PTZ camera controller connection. An optional rack mount kit is available to give installation flexibility in media cabinets or DIT stations. The CAMLIVE MX delivers plug-and-play convenience with no software drivers needed. In addition, it runs on all major operating systems including windows 10 and macOS 10.1 for all users to customize video streams for various online meeting applications.

Key features

  • Product colour: Black
  • Internal: No
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1)
  • Housing material: Metal
  • Country of origin: Taiwan
  • Supported video modes: 720p, 1080p, 2160p
  • Audio sampling rate: 48 kHz
  • Audio sampling rate: 16 bit
  • USB port: Yes
  • USB connector type: USB Type-A, USB Type-C
  • USB ports quantity: 3
  • Number of HDMI outputs: 1
  • Power supply type: DC
  • Output voltage: 12 V
  • Windows operating systems supported: Windows 10, Windows 11
  • Mac compatibility: Yes
  • Minimum processor: Intel i3 Dual Core 2.8Ghz
  • Minimum RAM: 4000 MB
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 200 mm
  • Depth: 164.6 mm
  • Height: 44 mm
  • Weight: 980 g
  • Video in: 1 x USB3.2 Gen1 Type A, 1 x USB3.2 Gen1 Type C
  • RS-232 ports: 1
  • Master (outer) case width: 370 mm
  • Master (outer) case height: 232 mm
  • Package weight: 1.65 kg
