ATEN CAT5 KVM EXTENDER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CE604-AT-U
  • MPN: CE604-AT-U
ATEN CAT5 KVM EXTENDER — ATEN — NETWORKING

ATEN CE604-AT-U KVM switch Black Save $206.44 off RRP

Available On OrderAsk us for ETA
$1,528.34

Inclusive of GST

1
Afterpay4 payments of $382.09
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-DD-011334
MPN:
CE604-AT-U
Brand:
ATEN

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $206.44 off RRP while stocks last.

ATEN CAT5 KVM EXTENDER

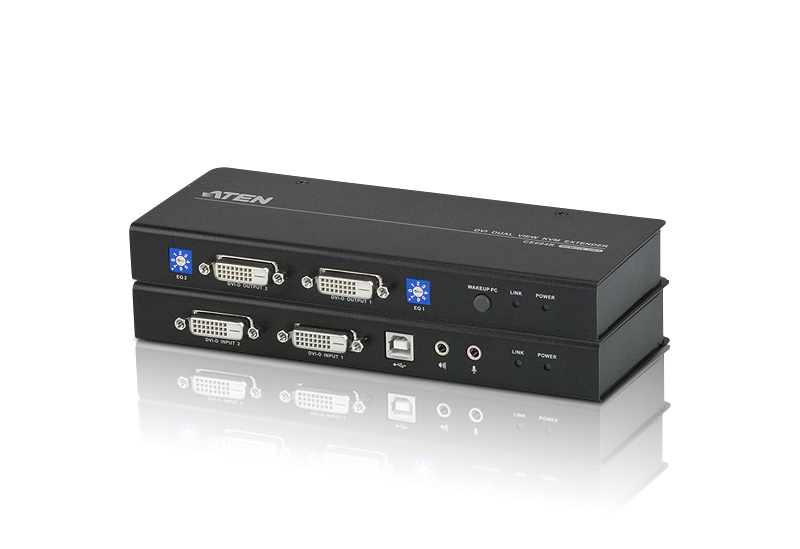

The CE604 is a DVI Dual View USB based KVM Extender that features Dual View functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.


The CE604 is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touch screens and barcode scanners. In addition, it supports an advanced PC Wake Up feature, which allows you to simply press a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for traveling back and forth between the local computer and remote console, making it an effi cient and flexible solution.

The CE604 is ideal for applications that require the console to be in a conveniently accessible location, while the system equipment needs to reside in a safe place – away from dust, dirt and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily
secured data center, while still allowing remote access to users.

Key features

  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Video port type: DVI-D
  • DVI-D ports quantity: 2
  • Audio connections: Yes
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 2
  • HD type: HD
  • Maximum resolution: 1024 x 768 pixels
  • Maximum digital resolution: 1920 x 1200 pixels
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal
  • Maximum cable length: 60 m
  • LED indicators: Link, Power
  • Built-in display: No
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 85.3 mm
  • Depth: 202 mm
  • Height: 25 mm
  • Weight: 490 g
  • Cables included: Audio (3.5mm), KVM, USB
  • Manual: Yes
  • AC adapter included: Yes
  • Rack mount kit: Yes
