ATEN HDMI HDBASET-LITE RECEIVER WITH SCALER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE805R-AT-U
  • MPN: VE805R-AT-U

ATEN VE805R-AT-U AV extender AV receiver Black

ATEN VE805R-AT-U, 1920 x 1080 pixels, AV receiver, 70 m, Wired, Black, HDCP

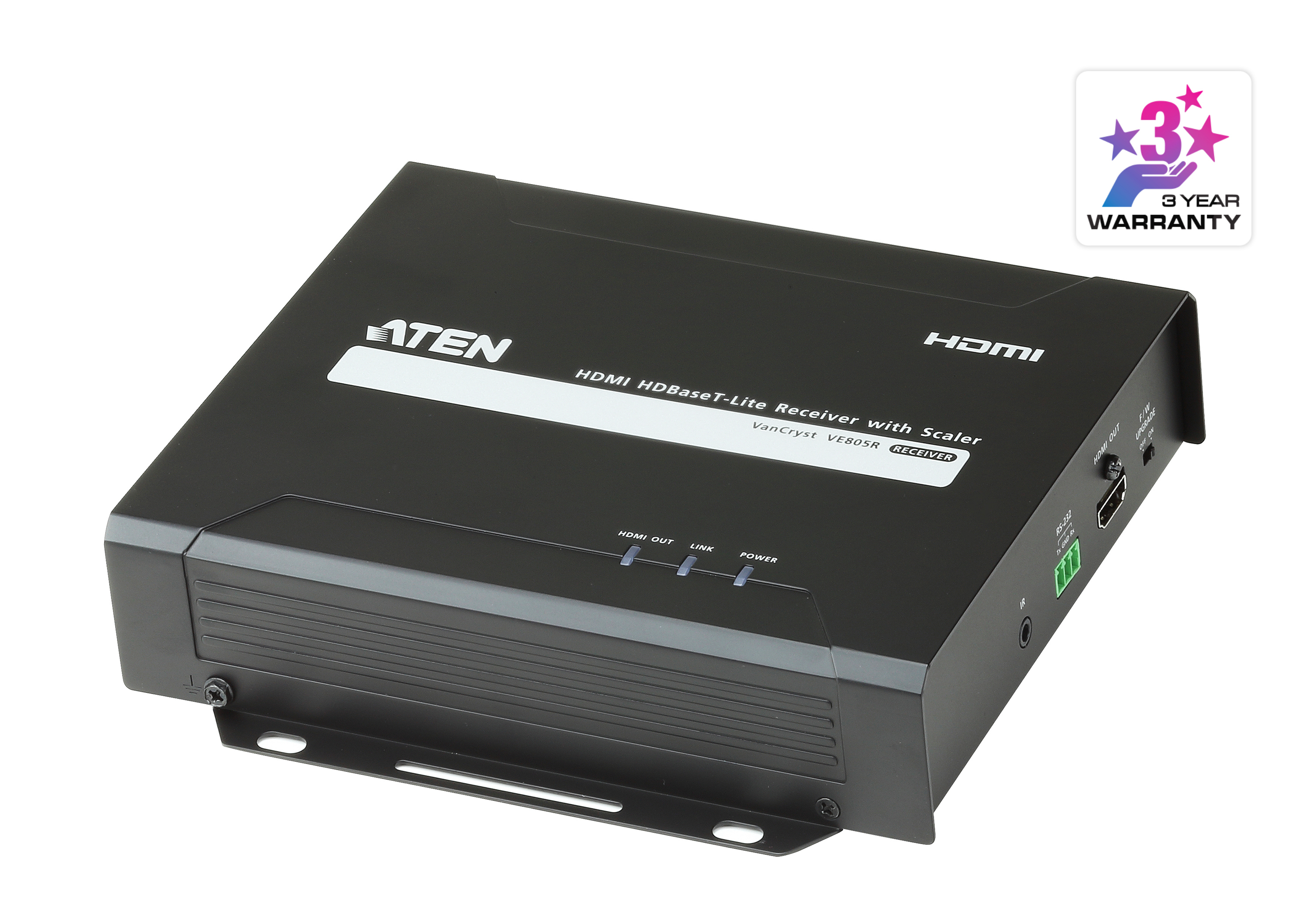

ATEN HDMI HDBASET-LITE RECEIVER WITH SCALER

Click or hover over image to enlarge

Brand:ATEN
MPN:VE805R-AT-U

Part #: VE805R-AT-U

Search this part on Google

Power source type

DC

Operating voltage

5 V

Power consumption (typical)

9.5 W

Type

AV receiver

Maximum resolution

1920 x 1080 pixels

Cable types supported

Cat5e, Cat6, Cat6a

Maximum transfer distance

70 m

RS-232 pass-through

Yes

Returns & Warranty

Comsys Price

$1,159.19
On Sale

Save $163.91 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $289.80 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI HDBASET-LITE RECEIVER WITH SCALER

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Key features

  • Type: AV receiver
  • Maximum resolution: 1920 x 1080 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 70 m
  • RS-232 pass-through: Yes
  • Supported video modes: 1080p
  • Bandwidth: 6.75 Gbit/s
  • Bandwidth: 225 MHz
  • On/off switch: Yes
  • HDCP: Yes
  • Material: Metal
  • Wall mountable: Yes
  • Impedance: 100 Ω
  • HDCP version: 1.4
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • Number of HDMI outputs: 1
  • HDMI version: 1.4
  • RS-232 input ports: 1
  • Remote (IR) input: 1
  • DC-in jack: Yes
  • Power source type: DC
  • Operating voltage: 5 V
  • Power consumption (typical): 9.5 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Receiver dimensions (WxDxH): 169.2 x 181.8 x 42 mm

+ 2 more — see the Specifications tab.
