ATEN HDMI HDBASET RECEIVER WITH POH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE1812R-AT-U
  • MPN: VE1812R-AT-U

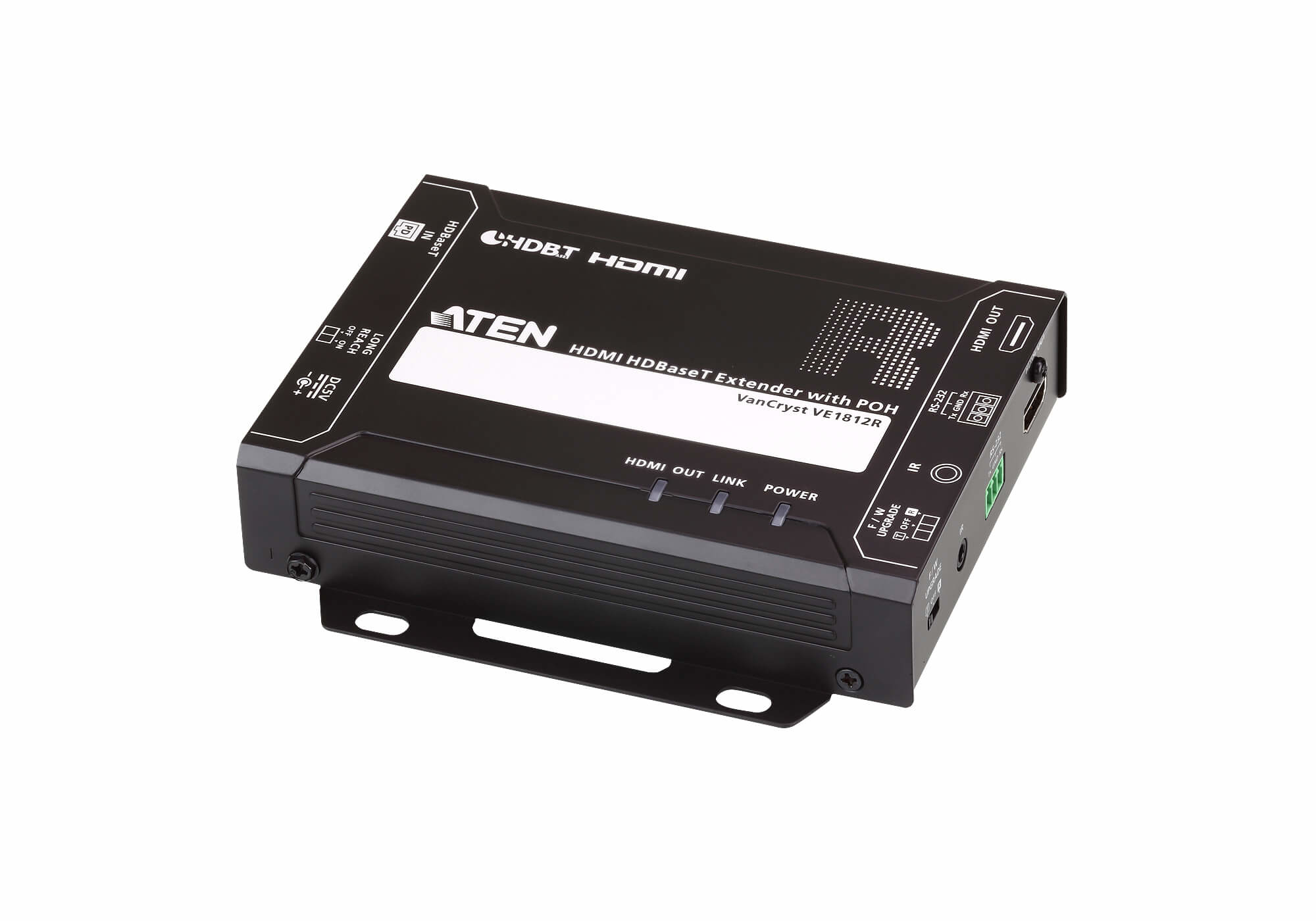

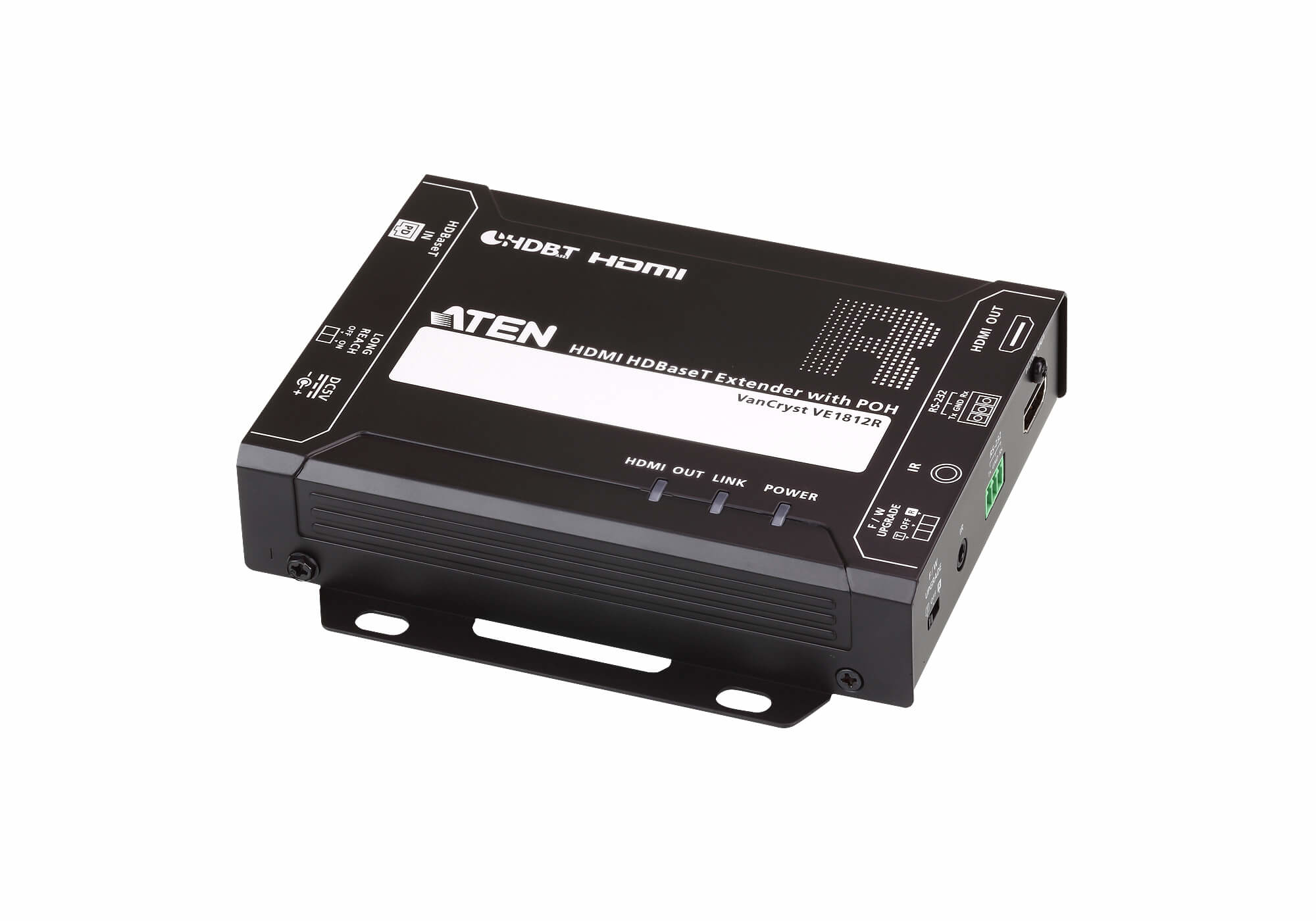

ATEN VE1812R-AT-U AV extender AV receiver Black

ATEN VE1812R-AT-U, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP

ATEN HDMI HDBASET RECEIVER WITH POH

Click or hover over image to enlarge

Brand:ATEN
MPN:VE1812R-AT-U

Part #: VE1812R-AT-U

Search this part on Google

Power source type

DC

Operating voltage (receiver)

5 V

Power consumption (receiver) (max)

6.4 mA

External power adapter

Yes

Type

AV receiver

Maximum resolution

4096 x 2160 pixels

Cable types supported

Cat5e, Cat6, Cat6a

Maximum transfer distance

150 m

Returns & Warranty

Comsys Price

$507.14
On Sale

Save $75.38 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $126.79 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI HDBASET RECEIVER WITH POH

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Key features

  • Type: AV receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 150 m
  • Maximum refresh rate: 60 Hz
  • LED indicators: Yes
  • Supported video modes: 1080p, 2160p
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Consumer Electronics Control (CEC) support: Yes
  • Impedance: 100 Ω
  • Product colour: Black
  • Connectivity technology: Wired
  • RJ-45 input ports: 1
  • Number of HDMI outputs: 1
  • RS-232 output ports: 1
  • Video out: 1
  • 3.5 mm (1/8-inch) out: Yes
  • Remote (IR) output: 1
  • DC-in jack: Yes
  • Power source type: DC
  • Operating voltage (receiver): 5 V
  • Power consumption (receiver) (max): 6.4 mA
  • External power adapter: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

+ 7 more — see the Specifications tab.
